RCD Vigi Ic60 Add-On Double Pole Type A 63A 300Ma

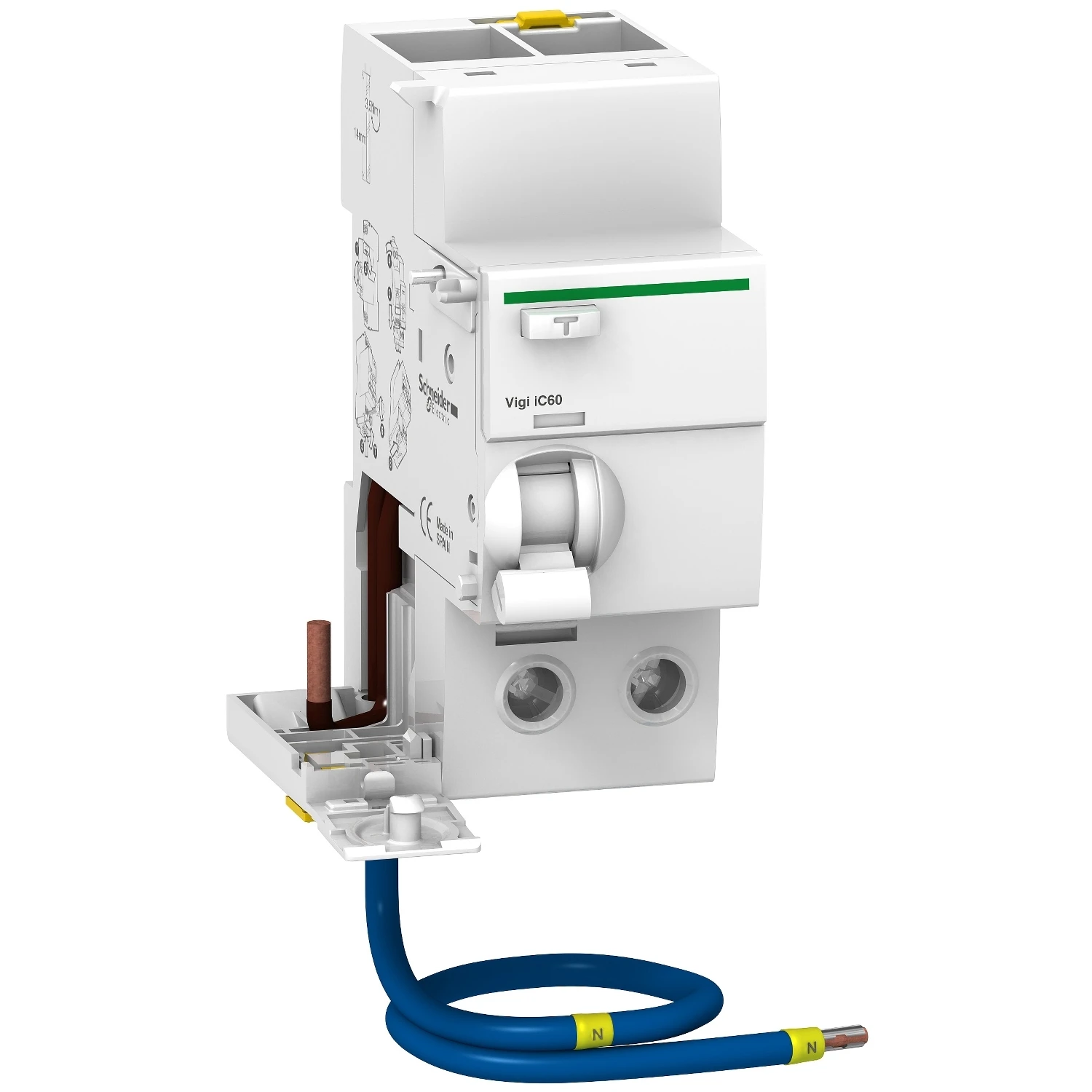

This Acti9 Vigi iC60 is a modular add-on residual current devices. It is a 1P + N, rated current is 63A, operating voltage is 240VAC according to IEC 61009-1. The earth leakage protection class is A type with a sensitivity of 300mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. A VisiTrip window is here to indicate a fault tripping by a red mechanical indicator on the front face. It can be combined with Acti9 iC60 circuit breaker to provide protection of persons and protection of installations. This product is compliant with EN 61009-1 and IEC 61009-1 standard. The Ue rated operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 4. The dimensions are (W) 54mm x (H) 91mm x (D) 73.5mm. The weight is 0.165kg. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature -5°C to +60°C. The storage temperature is -40°C to +85°C. · · · The absolute safety for earth leakage protection in final distribution · · Greater continuity of service with VisiTrip · · Greater electrical immunity with Si type (Super immune), · · Easy to install with robust terminal connections · · Environmentally friendly with 100% recyclable & recoverable materials · · Compliance with standard IEC EN 61009-1, certified by national official authorities · · Trip Sensitivity: 300 Ma
