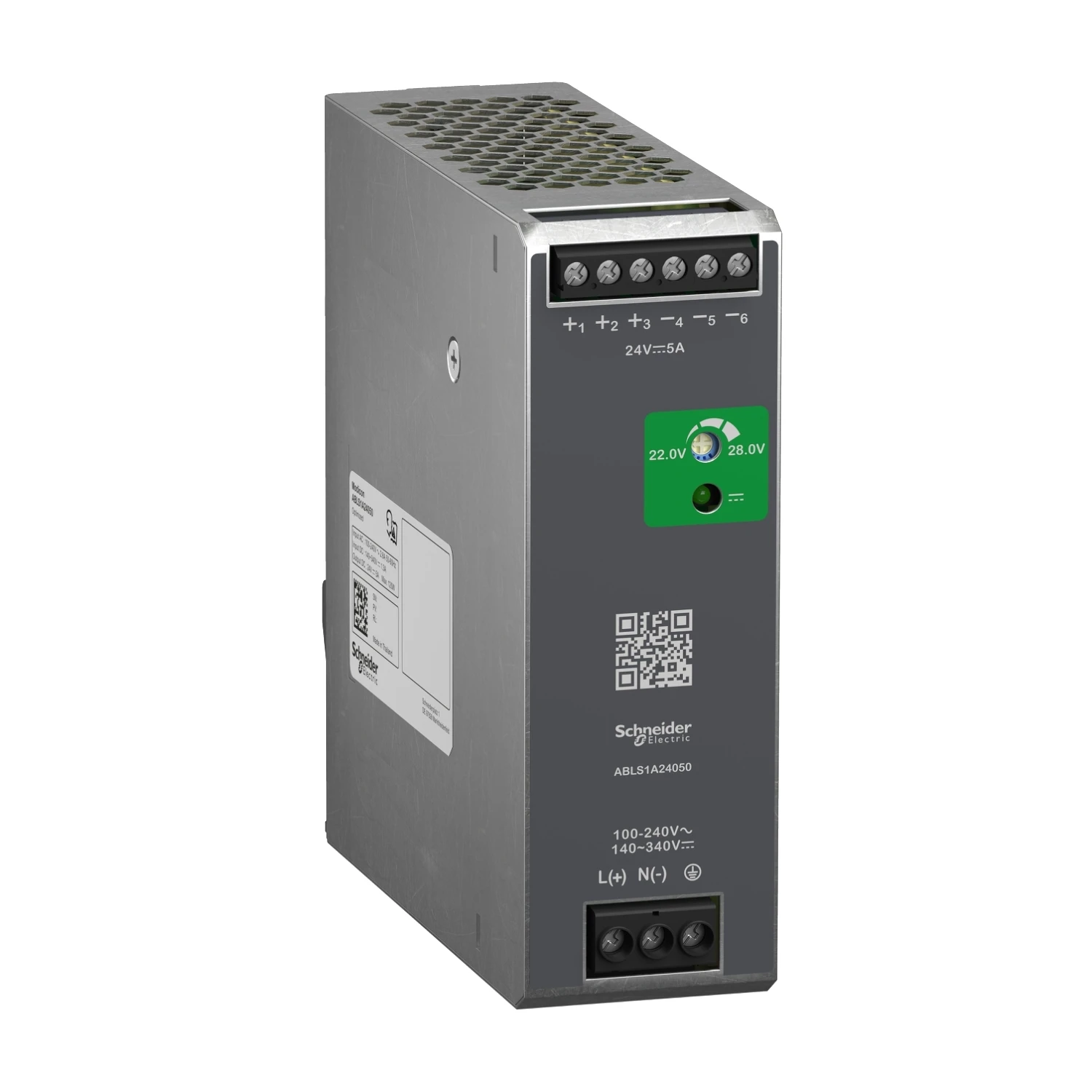

Regulated Power Supply, 100-240V AC, 24V 5 A, single phase, Optimized
Regulated Power Supply, 100-240V AC, 24V 5 A, single phase, Optimized
Regulated Power Supply, 100-240V AC, 24V 5 A, single phase, Optimized - Image 2
Regulated Power Supply, 100-240V AC, 24V 5 A, single phase, Optimized - Image 3

Regulated Power Supply, 100-240V AC, 24V 5 A, single phase, Optimized

£142.91 Incl. VAT

Regulated Power Supply, 100-240V AC, 24V 5 A, single phase, Optimized · · · This ABLS regulated switch mode power supply (SMPS) supplies direct current voltage. · · It has a rated input of 100V to 240V AC and 140 V to 340 V DC, a rated output current of 5A at 24V DC and a rated power output of 120W. · · It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. · · It installs on omega rail or fixing by screw. Its width is 40mm, its height is 123,6mm, its depth is 117,6mm. · · It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. · · It weighs 0.550kg. · · It is a power supply for industrial use, rail mounting. · · It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ABLS1A24050 Categories: , , Brand: Part Number: 2501495444

Description

Technical Specifications  Technical Specifications DC-power supply Depth 117.6 mm Height 123.6 mm Width 40 mm Power consumption – VA Recess height 123.6 mm Recess width 40 mm Max. output current 1 5 A Nominal value output voltage 1 24 V Max. output current 3 – A Width in number of modular spacings – Nominal value output current 2 – A Nominal value output current 1 5 A Max. output current 2 – A Power output 120 W Nominal value output voltage 2 – V Nominal value output voltage 3 – V Rated supply voltage at AC 60 Hz 100 – 240 V Rated supply voltage at DC 140 – 340 V Rated supply voltage at AC 50 Hz 100 – 240 V 1st secondary output voltage 24 – 24 V 2nd secondary output voltage – – – V 3rd secondary output voltage – – – V Nominal value output current 3 – A Modular version No Rail mounting possible Yes Suitable for safety functions No Short-circuit-proof Yes Output voltage stabilized Yes Stabilized Yes Wall mounting possible No Direct mounting possible No Secondary voltage adjustable Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2189232 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192272 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2194124
