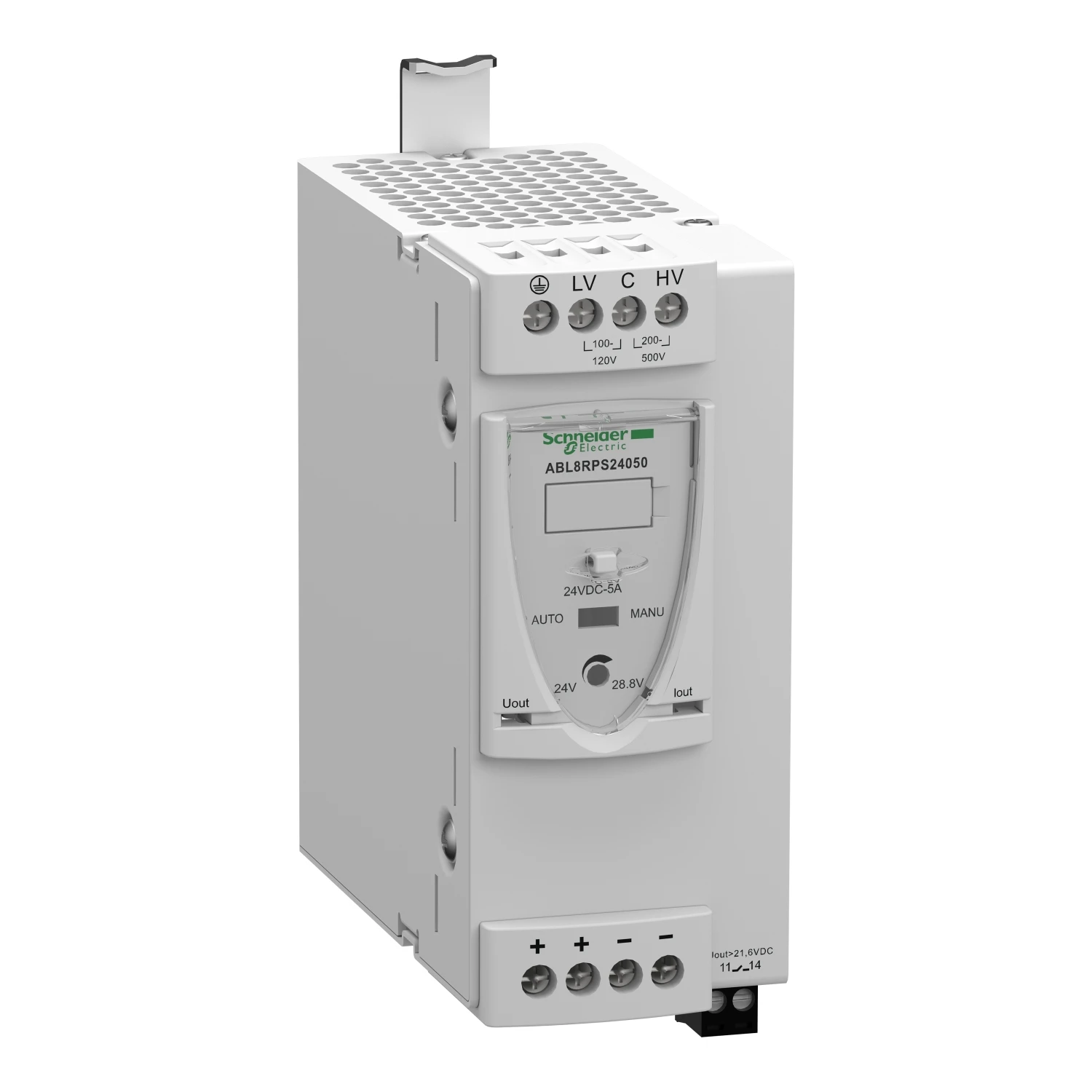

Regulated SMPS, 1 or 2-phase, 100..500 V, 24 V, 5A
Regulated SMPS, 1 or 2-phase, 100..500 V, 24 V, 5A
Regulated SMPS, 1 or 2-phase, 100..500 V, 24 V, 5A - Image 2
Regulated SMPS, 1 or 2-phase, 100..500 V, 24 V, 5A - Image 3

Regulated SMPS, 1 or 2-phase, 100..500 V, 24 V, 5A

£242.87 Incl. VAT

This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 5A at 24V DC and a rated power output of 120W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 56mm-wide. It weighs 0,700kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD07, GB2CD08, GV2RT06 and GV2ME06 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness. · · · This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. · · It has a rated input of 100V to 500V AC, a rated output current of 5A at 24V DC and a rated power output of 120W. · · It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. · · It installs easily on DIN rail and is 56mm-wide. · · It is also equipped with a PFC (Power Factor Correction) filter. · · Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. · · It has LED diagnostics indicator available in the front for troubleshooting instantly.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ABL8RPS24050 Categories: , , Brand: Part Number: 2500653535

Description

Technical Specifications  Technical Specifications DC-power supply Width 56 mm Height 143 mm Max. output current 1 5 A Power output 120 W Max. output current 3 – A Nominal value output voltage 1 24 V Nominal value output current 2 – A Recess width – mm Depth 125 mm Nominal value output current 3 – A Nominal value output voltage 3 – V Nominal value output current 1 5 A Max. output current 2 – A Nominal value output voltage 2 – V Width in number of modular spacings – Rated supply voltage at AC 50 Hz 100 – 500 V Rated supply voltage at DC – – – V 2nd secondary output voltage – – – V 1st secondary output voltage 24 – 28.8 V 3rd secondary output voltage – – – V Power consumption – VA Recess height – mm Rated supply voltage at AC 60 Hz 100 – 500 V Stabilized Yes Output voltage stabilized Yes Secondary voltage adjustable Yes Modular version No Short-circuit-proof Yes Rail mounting possible Yes Wall mounting possible No Direct mounting possible No Suitable for safety functions Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2189232 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192272
