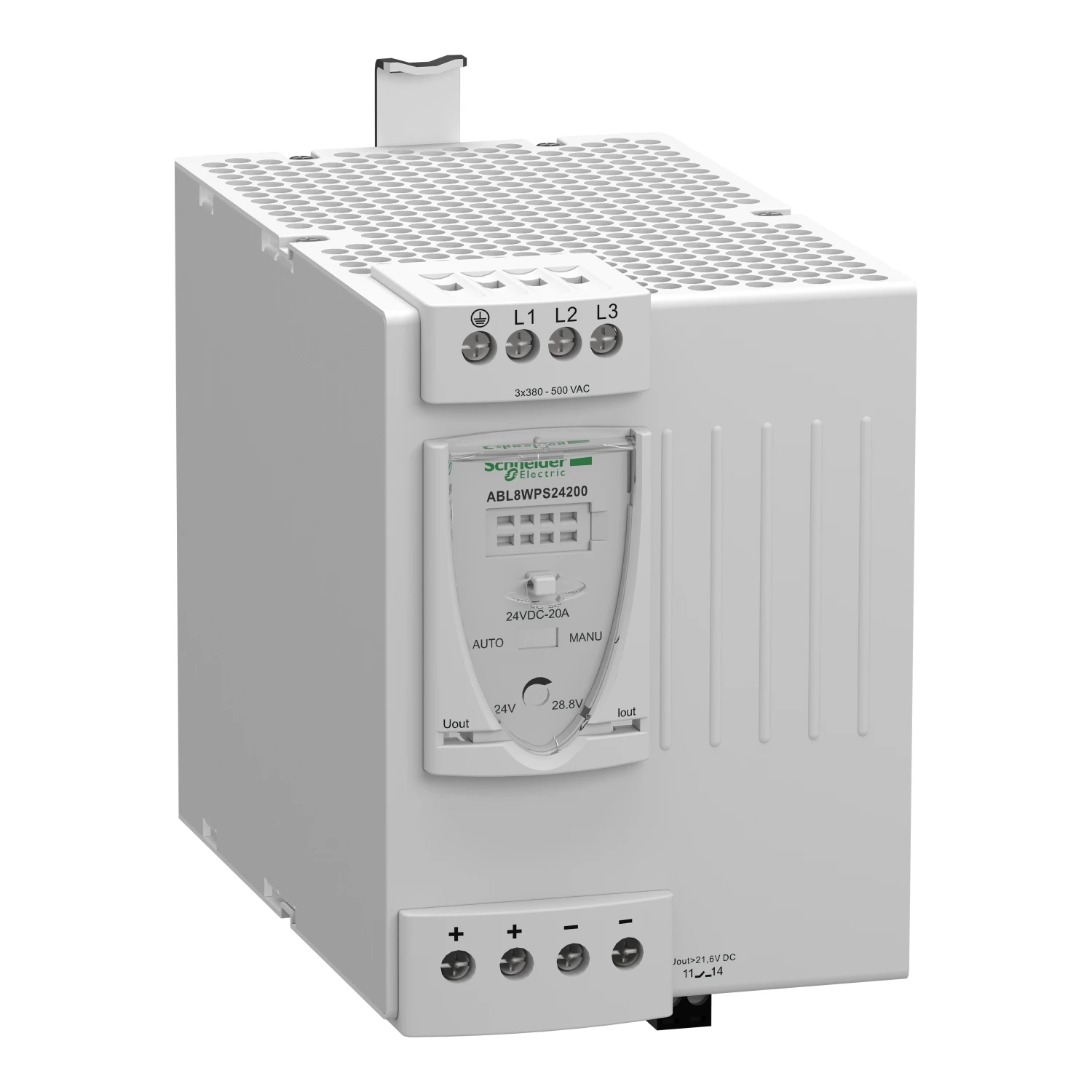

Regulated SMPS 3-phase, 380..500 V AC, 24 V, 20A
Regulated SMPS 3-phase, 380..500 V AC, 24 V, 20A
Regulated SMPS 3-phase, 380..500 V AC, 24 V, 20A - Image 2
Regulated SMPS 3-phase, 380..500 V AC, 24 V, 20A - Image 3

Regulated SMPS 3-phase, 380..500 V AC, 24 V, 20A

£343.45 Incl. VAT

This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 380V to 500V AC, a rated output current of 20A at 24V DC and a rated power output of 480W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It has LED diagnostics indicator available in the front for troubleshooting instantly. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It installs easily on DIN rail and is 95mm-wide. It is a power supply for industrial use, rail mounting. It conforms to CSA C22.2 No 60950-1 and UL 508. It is certified with CCSAus, EAC, UL and RCM. The GV2ME06 thermal magnetic circuit breaker is recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness. · · · This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. · · It has a rated input of 380V to 500V AC, a rated output current of 20A at 24V DC and a rated power output of 480W. · · It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. · · It installs easily on DIN rail and is 95mm-wide. · · Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. · · It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. · · It has LED diagnostics indicator available in the front for troubleshooting instantly. · · Supplied in 2m lengths · · UL Recognised: UL 1565 | E509564 · · Flame Resistance: V0 UL94

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ABL8WPS24200 Categories: , , Brand: Part Number: 2500653536

Description

Technical Specifications  Technical Specifications DC-power supply Height 143 mm Max. output current 1 20 A Power output 480 W Width 96 mm Max. output current 3 – A Max. output current 2 – A Nominal value output voltage 1 24 V Nominal value output current 1 20 A Nominal value output voltage 2 – V Nominal value output current 2 – A Nominal value output current 3 – A Nominal value output voltage 3 – V Power consumption – VA 1st secondary output voltage 24 – 28.8 V 3rd secondary output voltage – – – V 2nd secondary output voltage – – – V Depth 160 mm Width in number of modular spacings – Recess width – mm Recess height – mm Rated supply voltage at DC – – – V Rated supply voltage at AC 50 Hz 380 – 500 V Rated supply voltage at AC 60 Hz 380 – 500 V Short-circuit-proof Yes Modular version No Suitable for safety functions Yes Rail mounting possible Yes Direct mounting possible No Wall mounting possible No Stabilized Yes Output voltage stabilized Yes Secondary voltage adjustable Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2189232 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192272
