Relay 045-063A
Relay 045-063A
Relay 045-063A - Image 2
Relay 045-063A - Image 3

Relay 045-063A

£51.23 Incl. VAT

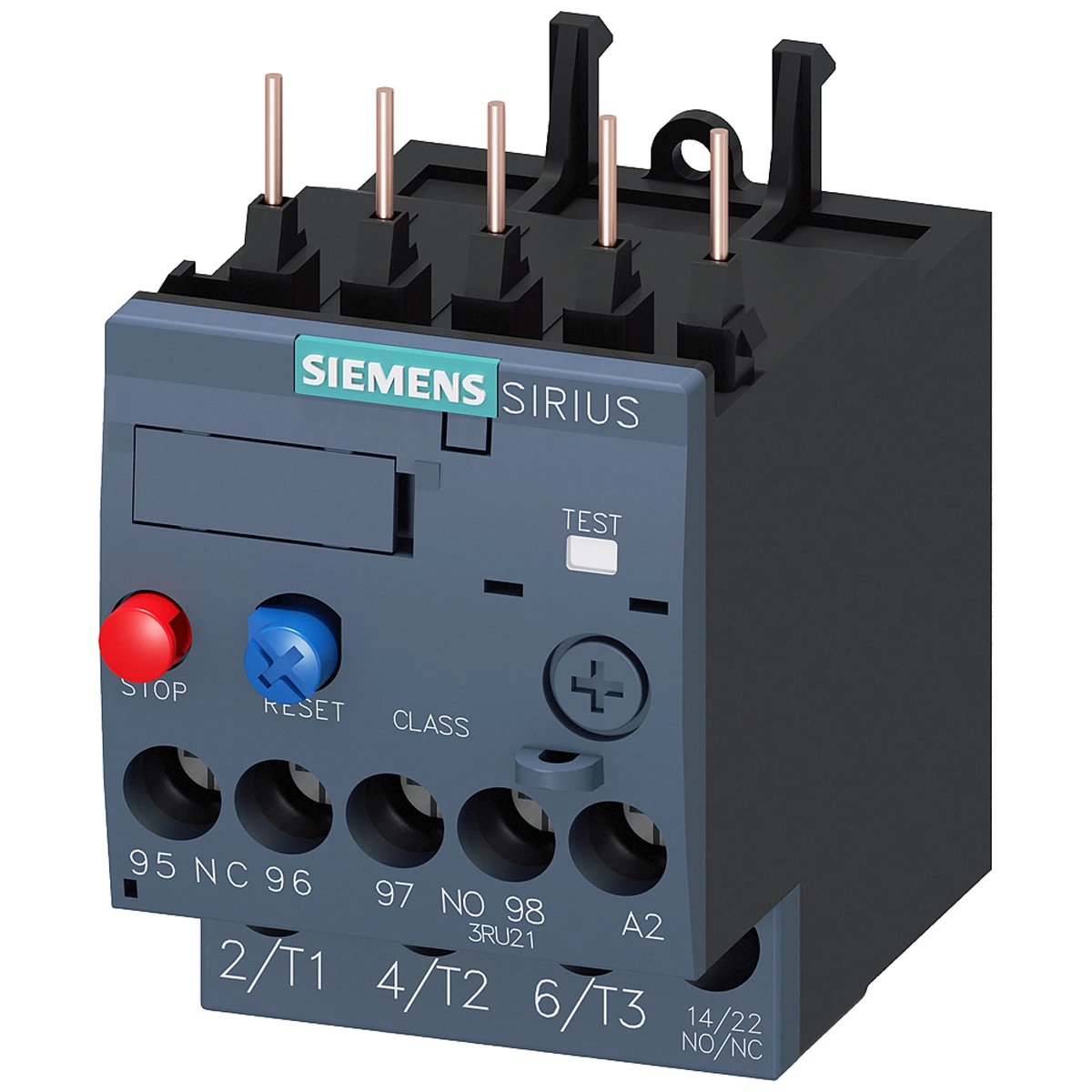

Siemens overload relay for motor protection sized S00 and comes with a slide switch display. This relay has a CLASS 10 trip class and a thermal overload release design. The auxiliary circuit for this relay has an integrated switch with 1NC (for contactor disconnection) and 1NO (for message “tripped”) contacts. · · · For use with Sirius size S0 and S00 contactors. · · Terminal supports for stand-alone installation. · · Mechanical RESET. · · Cable releases for RESET. · · Electrical remote RESET. · · 690V Insulation voltage. · · 6kV Impulse voltage resistance. · · Screw connection or spring-clamp versions available. · · Thermal overload relays up to 80A. · · IP20 Degree of protection

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RU2116-0GB0 Categories: , , Brand: Part Number: 1050392344

Description

Technical Specifications  Technical Specifications Thermal overload relay Mounting method Direct attachment Release class CLASS 10 Type of electrical connection of main circuit Screw connection Number of auxiliary contacts as normally closed contact 1 Number of auxiliary contacts as normally open contact 1 Max. rated operation voltage Ue 690 V Number of auxiliary contacts as change-over contact 0 Adjustable current range 0.45 – 0.63 A Reset function input No Reset function automatic Yes Reset function push-button Yes · Technical Data Sheet – Click to Download
