Relay 27-32A
Relay 27-32A
Relay 27-32A - Image 2
Relay 27-32A - Image 3

Relay 27-32A

£84.36 Incl. VAT

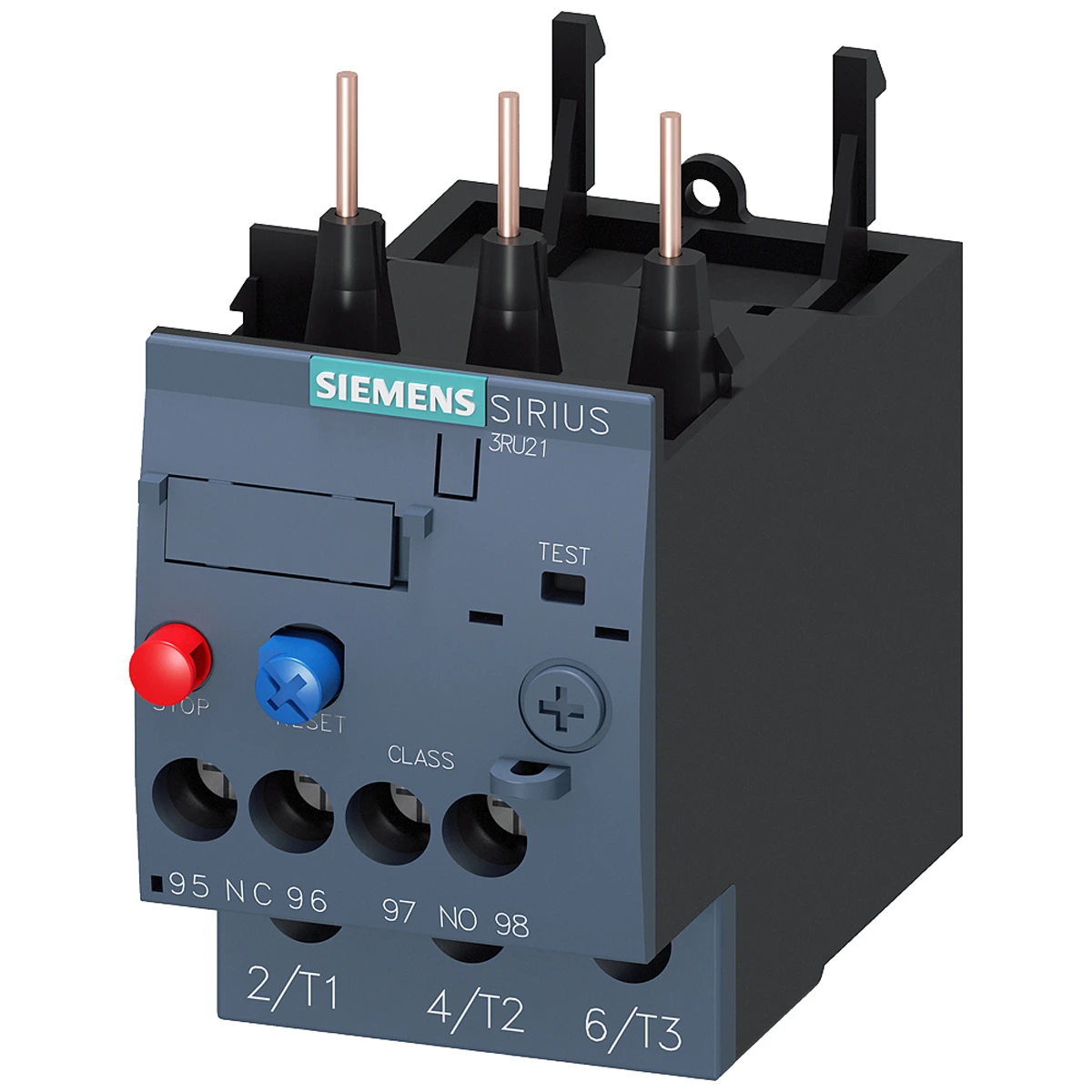

Siemens overload relay for motor protection sized S0 and comes with a slide switch display. This relay has a CLASS 10 trip class and a thermal overload release design. The auxiliary circuit for this relay has an integrated switch with 1NC (for contactor disconnection) and 1NO (for message “tripped”) contacts. · · · Adjustable pick-up value current of overload release: 27 – 32A · · Screw clamp terminals: 2x (0.5 – 1.5mm²), 2 x (0.75 – 2.5mm²) · · Any mounting position · · Mounting type: Direct mounting · · Electrical connection arrangement for main circuit: Top and bottom · · Operating voltage: 690V · · Operating frequency: 50 – 60Hz · · Tightening torque: 0.8 – 1.2Nm/ 2 – 2.5Nm · · Ambient operating temperature: -40°C to 70°C · · IP20 Degree of protection

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RU2126-4EB0 Categories: , , Brand: Part Number: 1050392393

Description

Technical Specifications  Technical Specifications Thermal overload relay Mounting method Direct attachment Release class CLASS 10 Type of electrical connection of main circuit Screw connection Number of auxiliary contacts as normally closed contact 1 Number of auxiliary contacts as normally open contact 1 Number of auxiliary contacts as change-over contact 0 Max. rated operation voltage Ue 690 V Adjustable current range 27 – 32 A Reset function input No Reset function automatic Yes Reset function push-button Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
