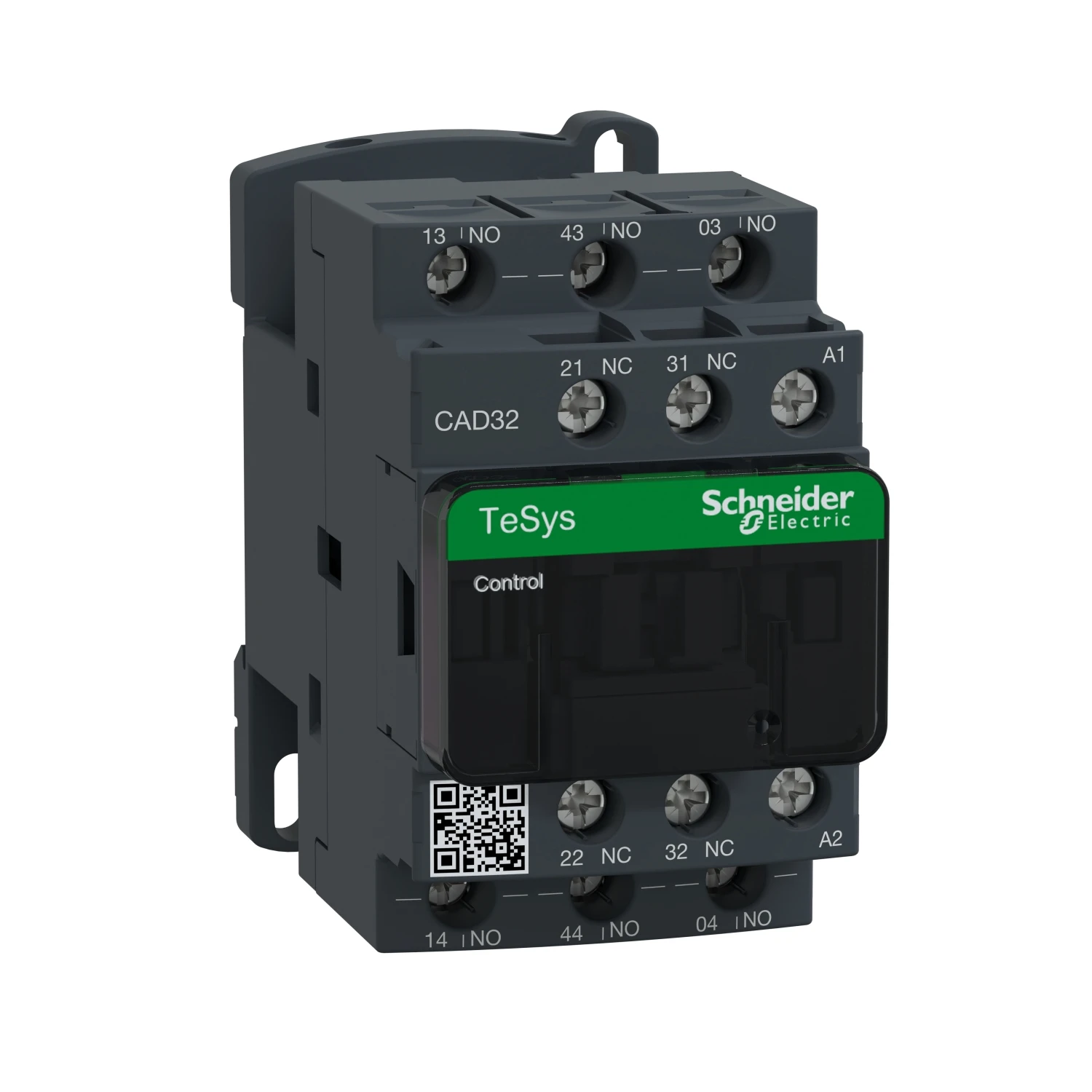

Schneider Electric Relay Control Instantaneous 3Normally Open+2Normally Closed 240V 50/60Hz Scw Clamp Terminal
Schneider Electric Relay Control Instantaneous 3Normally Open+2Normally Closed 240V 50/60Hz Scw Clamp Terminal
Schneider Electric Relay Control Instantaneous 3Normally Open+2Normally Closed 240V 50/60Hz Scw Clamp Terminal - Image 2
Schneider Electric Relay Control Instantaneous 3Normally Open+2Normally Closed 240V 50/60Hz Scw Clamp Terminal - Image 3

Schneider Electric Relay Control Instantaneous 3Normally Open+2Normally Closed 240V 50/60Hz Scw Clamp Terminal

£48.40 Incl. VAT

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 240V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). · · · TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. · · Screw clamp terminals: 1 to 4mm² · · It provides a 240V 50/60Hz AC control circuit, connection by screw clamp terminals. · · For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. · · Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. · · Mechanical durability: 30 Mcycles · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). · · Tightening torque: 1.2Nm · · Ambient operating temperature: -40°C to 70°C · · IP2x Degree of protection (front face)

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CAD32U7 Categories: , , , , , Brand: Product Code: 2500090464

Description

Technical Specifications  Technical Specifications Contactor relay Number of auxiliary contacts as normally closed contact 2 Number of auxiliary contacts as normally open contact 3 Number of auxiliary contacts as change-over contact 0 Rated operation current Ie, 400 V 10 A Number of auxiliary contacts as normally closed contact, delayed switching 0 Number of auxiliary contacts as normally open contact, leading 0 Rated control supply voltage at AC 50 Hz 240 – 240 V Rated control supply voltage at DC – – – V With LED indication No Rated control supply voltage at AC 60 Hz 240 – 240 V Interface No · Technical Data Sheet – Click to Download
