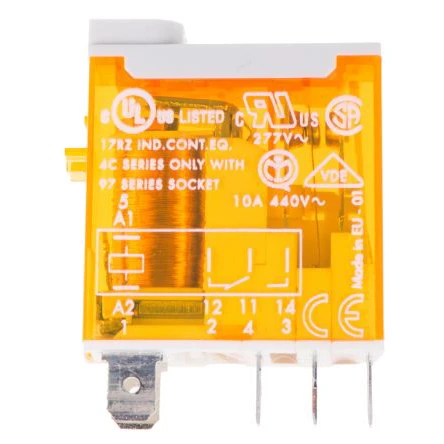

Relay Mini Industrial 1P Co Lockable 16A 24V Ac Test Button&Mec
Relay Mini Industrial 1P Co Lockable 16A 24V Ac Test Button&Mec
Relay Mini Industrial 1P Co Lockable 16A 24V Ac Test Button&Mec - Image 2
Relay Mini Industrial 1P Co Lockable 16A 24V Ac Test Button&Mec - Image 3

Relay Mini Industrial 1P Co Lockable 16A 24V Ac Test Button&Mec

£11.70 Incl. VAT

The Eaton EPBN1SPD1234 is a transient voltage surge suppression unit (TVSS) that provides protection for Eaton Memshield 3 panelboards. The TVSS is mounted externally and comes in its own enclosure. It includes a 63A triple pole, NZM1 MCCB for protection and isolation. · · · Contact configuration: 2 Pole Double Throw · · PCB/socket mounting · · Rated coil voltage: 24VDC · · Switching voltage: 220VDC/440VAC · · Resistive load contact rating at 8A: 30VDC/250VAC · · Coil resistance: 1.2kO · · Coil power consumption: 500mW · · Coil voltage: 17.5 – 26.4V AC · · 5mm terminal pitch · · Dimensions: 29 x 12.4 x 32.8mm|Test button with blocking function|Mechanical durability: 1,000,000 cycles

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 46.61.8.024.0040 Categories: , , Brand: Part Number: 2500347778

Description

Technical Specifications  Technical Specifications Switching relay Type of switch contact Single contact Type of electric connection Plug-in connection Drive, switching attitude Mono stable Drive, polarization Polarity free Degree of protection (IP rating) IP40 Voltage type for actuating AC Nominal current 16 A Width 12.4 mm Height 32.8 mm Number of contacts as change-over contact 1 With forced-guided contacts No With detachable clamps No Rated control supply voltage at AC 60 Hz 24 – 24 V Rated control supply voltage at AC 50 Hz 24 – 24 V Number of contacts as normally closed contact 0 Number of contacts as normally open contact 0 Depth 29 mm Complete with socket No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
