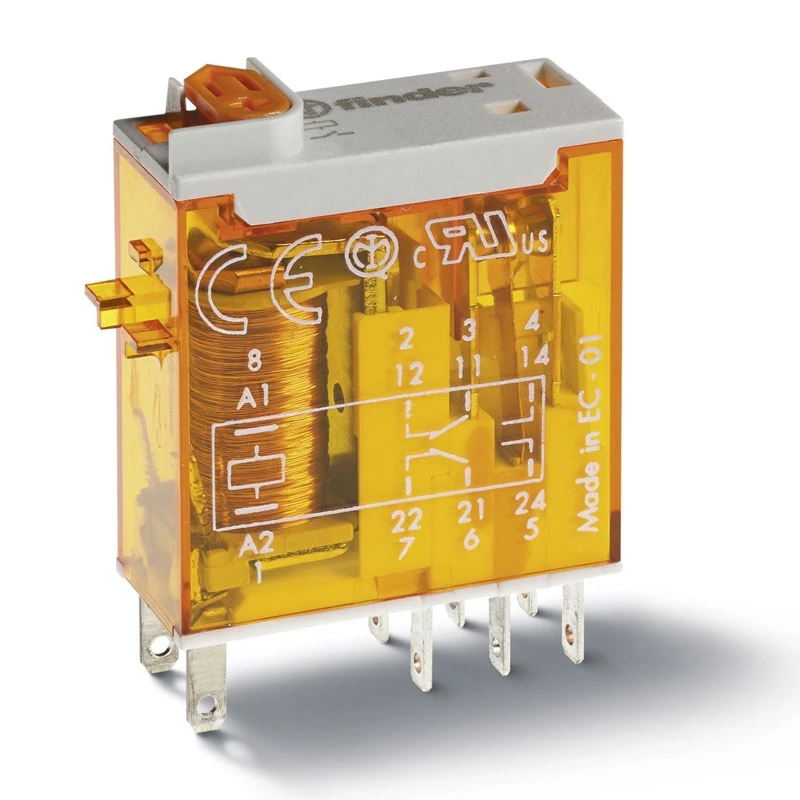

Relay Mini Industrial 2P Co Lockable 8A 12V Dc Test Button&Mech
Relay Mini Industrial 2P Co Lockable 8A 12V Dc Test Button&Mech
Relay Mini Industrial 2P Co Lockable 8A 12V Dc Test Button&Mech - Image 2
Relay Mini Industrial 2P Co Lockable 8A 12V Dc Test Button&Mech - Image 3

Relay Mini Industrial 2P Co Lockable 8A 12V Dc Test Button&Mech

£6.65 Incl. VAT

TeSys GV accessory, combination block for motor starter assembly. For the connection between a motor circuit breaker GV2 or a fuse carrier LS1D32 and contactor LC1D09-D38. To be used when the assembly is mounted directly on DIN rails. Sold in lots of 10 units. Green Premium compliant (RoHS/REACh). · · · DC coils, 500 mW or AC coils, 1.2 VA · · Socket mount or direct connection via Faston connectors · · Available with lockable test button, mechanical flag & LED indicator · · 8 mm, 6 kV (1.2/50 µs) isolation, coil – contacts · · Special version for railway application · · 8, 16 A (according to type) · · 1 or 2 CO · · With sockets: 97 Series

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 46.52.9.012.0040 Categories: , , Brand: Part Number: 2500347672

Description

Technical Specifications  Technical Specifications Switching relay Type of switch contact Single contact Type of electric connection Plug-in connection Voltage type for actuating DC Degree of protection (IP rating) IP40 Drive, switching attitude Mono stable Drive, polarization Polarity free Width 12.4 mm Nominal current 8 A Depth 29 mm Number of contacts as normally open contact 0 With forced-guided contacts No With detachable clamps No Rated control supply voltage at DC 12 – 12 V Rated control supply voltage at AC 50 Hz 12 – 12 V Number of contacts as change-over contact 2 Height 32.8 mm Number of contacts as normally closed contact 0 Complete with socket No · Technical Data Sheet – Click to Download
