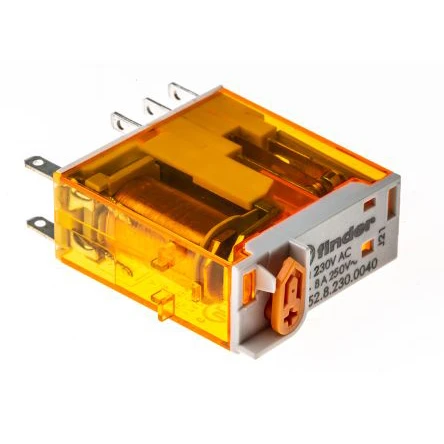

Relay Mini Industrial 2P Co Lockable 8A 230V Ac Test Button&Mec
Relay Mini Industrial 2P Co Lockable 8A 230V Ac Test Button&Mec
Relay Mini Industrial 2P Co Lockable 8A 230V Ac Test Button&Mec - Image 2
Relay Mini Industrial 2P Co Lockable 8A 230V Ac Test Button&Mec - Image 3

Relay Mini Industrial 2P Co Lockable 8A 230V Ac Test Button&Mec

£11.16 Incl. VAT

TeSys LRK thermal overload relay, 1.2A/690V, thermal setting range 0.8-1.2A, tripping class 10A, for protection of 3-phase motors 0.25-0.37kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test slide switch for simulation of a tripping, reset/stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1K06-K16. Mounting on DIN rail, separated from the contactor, with use of a terminal block LA7K0064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). · · · Contact configuration: 2 Pole Double Throw · · PCB/socket mounting · · Rated coil voltage: 230VAC · · Switching voltage: 220VDC/440VAC · · Resistive load contact rating at 8A: 30VDC/250VAC · · Coil resistance: 28kO · · Coil power consumption: 1.2VA · · Coil voltage: 184 – 253V AC · · 5mm terminal pitch · · Dimensions: 29 x 12.4 x 32.8mm|Test button with blocking function|Mechanical durability: 1,000,000 cycles

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 46.52.8.230.0040 Categories: , , Brand: Part Number: 2500347670

Description

Technical Specifications  Technical Specifications Switching relay Type of switch contact Single contact Drive, switching attitude Mono stable Type of electric connection Plug-in connection Height 32.8 mm Number of contacts as change-over contact 2 Width 12.4 mm Depth 29 mm Nominal current 8 A Drive, polarization Polarity free Voltage type for actuating AC Degree of protection (IP rating) IP40 Number of contacts as normally closed contact 0 Number of contacts as normally open contact 0 Rated control supply voltage at AC 50 Hz 230 – 230 V Rated control supply voltage at AC 60 Hz 230 – 230 V With forced-guided contacts No Complete with socket No With detachable clamps No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
