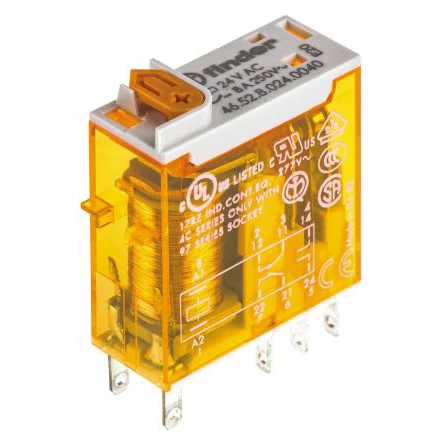

Relay Mini Industrial 2P Co Lockable 8A 24V AC Test Button&Mech
Relay Mini Industrial 2P Co Lockable 8A 24V AC Test Button&Mech
Relay Mini Industrial 2P Co Lockable 8A 24V AC Test Button&Mech - Image 2
Relay Mini Industrial 2P Co Lockable 8A 24V AC Test Button&Mech - Image 3

Relay Mini Industrial 2P Co Lockable 8A 24V AC Test Button&Mech

£8.28 Incl. VAT

EPBN1EX250 · · · Contact configuration: 2 Pole Double Throw · · PCB/socket mounting · · Rated coil voltage: 24VAC · · Switching voltage: 220VDC/400VAC · · Resistive load contact rating at 8A: 30VDC/250VAC · · Coil resistance: 320O · · Coil power consumption: 1.2VA · · Coil voltage: 19.2 – 26.4V AC · · 5mm terminal pitch · · Dimensions: 29 x 12.4 x 32.8mm|Test button with blocking function|Mechanical durability: 1,000,000 cycles

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 46.52.8.024.0040 Categories: , , , Brand: Part Number: 2500347666

Description

Technical Specifications  Technical Specifications Switching relay Type of switch contact Single contact Type of electric connection Plug-in connection Drive, switching attitude Mono stable Degree of protection (IP rating) IP40 Drive, polarization Polarity free Number of contacts as change-over contact 2 Depth 29 mm Nominal current 8 A Height 32.8 mm Width 12.4 mm Voltage type for actuating AC Number of contacts as normally open contact 0 Number of contacts as normally closed contact 0 Rated control supply voltage at AC 50 Hz 24 – 24 V Rated control supply voltage at AC 60 Hz 24 – 24 V With detachable clamps No With forced-guided contacts No Complete with socket No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
