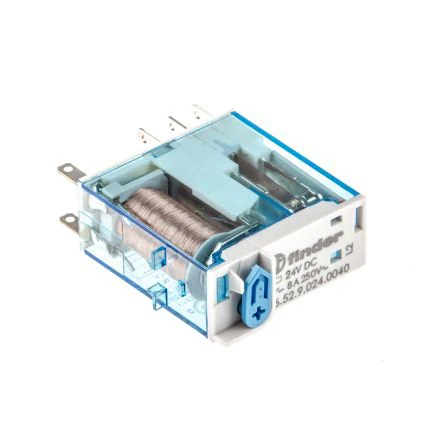

Finder Relay Mini Industrial 2P Co Lockable 8A 24V Dc Test Button&Mech
Finder Relay Mini Industrial 2P Co Lockable 8A 24V Dc Test Button&Mech
Finder Relay Mini Industrial 2P Co Lockable 8A 24V Dc Test Button&Mech - Image 2
Finder Relay Mini Industrial 2P Co Lockable 8A 24V Dc Test Button&Mech - Image 3

Finder Relay Mini Industrial 2P Co Lockable 8A 24V Dc Test Button&Mech

£6.80 Incl. VAT

· · Contact configuration: 2 Pole Double Throw · · PCB/socket mounting · · Rated coil voltage: 24VDC · · Switching voltage: 220VDC/440VAC · · Resistive load contact rating at 8A: 30VDC/250VAC · · Coil resistance: 1.2kO · · Coil power consumption: 500mW · · Coil voltage: 17.5 – 26.4V AC · · 5mm terminal pitch · · Dimensions: 29 x 12.4 x 32.8mm|Test button with blocking function|Mechanical durability: 1,000,000 cycles

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 46.52.9.024.0040 Categories: , , , , , Brand: Product Code: 2500347768

Description

Technical Specifications  Technical Specifications Switching relay Drive, switching attitude Mono stable Type of electric connection Plug-in connection Degree of protection (IP rating) IP40 Voltage type for actuating DC Type of switch contact Single contact Drive, polarization Polarity free Nominal current 8 A Width 12.4 mm Depth 29 mm Number of contacts as change-over contact 2 Height 32.8 mm Number of contacts as normally open contact 0 Number of contacts as normally closed contact 0 Rated control supply voltage at AC 50 Hz 24 – 24 V Rated control supply voltage at DC 24 – 24 V With detachable clamps No With forced-guided contacts No Complete with socket No · Technical Data Sheet – Click to Download
