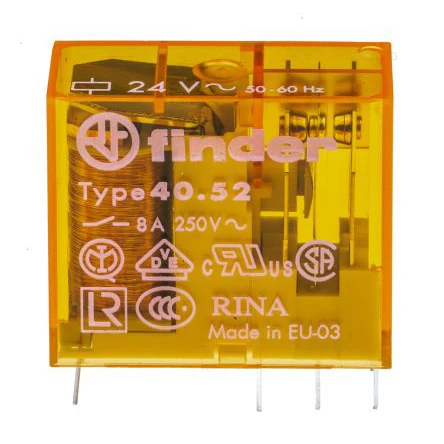

Relay Miniature PCB 2P Co 3.5mm Pin 8A 24V AC
Relay Miniature PCB 2P Co 3.5mm Pin 8A 24V AC
Relay Miniature PCB 2P Co 3.5mm Pin 8A 24V AC - Image 2
Relay Miniature PCB 2P Co 3.5mm Pin 8A 24V AC - Image 3

Relay Miniature PCB 2P Co 3.5mm Pin 8A 24V AC

£6.71 Incl. VAT

Miniature PCB/ plug-in relays and sockets. Finder’s ranges of miniature, PCB relays and sockets are market leading in terms of quality reliability and performance. All have a wide range of quality approvals and are suitable for a large variety of industrial applications. · · · Contact configuration: 2 Pole Double Throw · · PCB/socket mounting · · Rated coil voltage: 24VDC · · Switching voltage: 220VDC/400VAC · · Resistive load contact rating at 8A: 30VDC/250VAC · · Coil resistance: 320O · · Coil power consumption: 1.2VA · · Coil current: 45mA · · 5mm terminal pitch · · Dimensions: 29 x 12.4 x 25mm

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 40.52.8.024.0000 Categories: , , Brand: Part Number: 2500347619

Description

Technical Specifications  Technical Specifications Switching relay Drive, switching attitude Mono stable Type of switch contact Single contact Degree of protection (IP rating) IP40 Type of electric connection PCB connection Drive, polarization Polarity free Voltage type for actuating AC Number of contacts as change-over contact 2 Rated control supply voltage at AC 50 Hz 24 – 24 V Number of contacts as normally closed contact 0 Number of contacts as normally open contact 0 Depth 29 mm Width 12.4 mm Nominal current 8 A Height 25 mm Rated control supply voltage at AC 60 Hz 24 – 24 V With forced-guided contacts No Complete with socket No With detachable clamps No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
