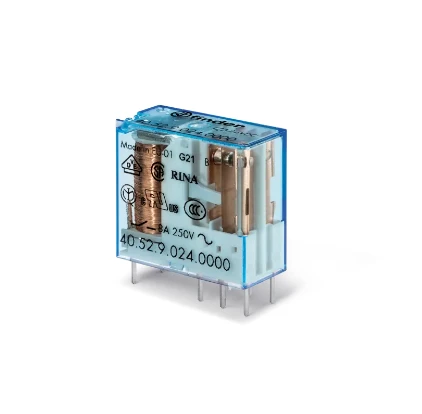

Relay Miniature PCB 2P Co 3.5mm Pin 8A 48V Dc
Relay Miniature PCB 2P Co 3.5mm Pin 8A 48V Dc
Relay Miniature PCB 2P Co 3.5mm Pin 8A 48V Dc - Image 2
Relay Miniature PCB 2P Co 3.5mm Pin 8A 48V Dc - Image 3

Relay Miniature PCB 2P Co 3.5mm Pin 8A 48V Dc

£5.54 Incl. VAT

Miniature PCB/ plug-in relays and sockets. Finder’s ranges of miniature, PCB relays and sockets are market leading in terms of quality reliability and performance. All have a wide range of quality approvals and are suitable for a large variety of industrial applications. · · · This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 24V direct current. · · It has 26 inputs / outputs with screw-clamp terminals. · · It has compact design, allowing installation on DIN rail. · · It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. · · Its simple ladder programming makes it adapted for non-specialists. · · Cadmium Free contact material

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 40.52.7.048.0000 Categories: , , Brand: Part Number: 2500347582

Description

Technical Specifications  Technical Specifications Switching relay Drive, switching attitude Mono stable Type of switch contact Single contact Type of electric connection PCB connection Degree of protection (IP rating) IP40 Voltage type for actuating DC Width 12.4 mm Drive, polarization Polarity free Nominal current 8 A Number of contacts as normally closed contact 0 Complete with socket No With forced-guided contacts No Rated control supply voltage at DC 48 – 48 V Height 25 mm Depth 29 mm Number of contacts as change-over contact 2 Number of contacts as normally open contact 0 With detachable clamps No · Technical Data Sheet – Click to Download
