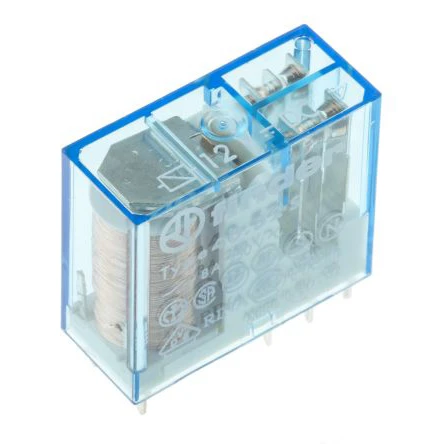

Relay Miniature PCB 2P Co 5mm Pin 8A 12V Dc
Relay Miniature PCB 2P Co 5mm Pin 8A 12V Dc
Relay Miniature PCB 2P Co 5mm Pin 8A 12V Dc - Image 2
Relay Miniature PCB 2P Co 5mm Pin 8A 12V Dc - Image 3

Relay Miniature PCB 2P Co 5mm Pin 8A 12V Dc

£5.51 Incl. VAT

Miniature PCB/ plug-in relays and sockets. Finder’s ranges of miniature, PCB relays and sockets are market leading in terms of quality reliability and performance. All have a wide range of quality approvals and are suitable for a large variety of industrial applications. · · · Contact configuration: 2 Pole Double Throw · · PCB/socket mounting · · Rated coil voltage: 12VDC · · Switching voltage: 220VDC/400VAC · · Resistive load contact rating at 8A: 30VDC/250VAC · · Coil resistance: 300O · · Coil power consumption: 500mW · · Coil current: 40mA · · 5mm terminal pitch · · Dimensions: 29 x 12.4 x 25mm

9 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 40.52.7.012.0000 Categories: , , Brand: Part Number: 2500807457

Description

Technical Specifications  Technical Specifications Switching relay Drive, switching attitude Mono stable Type of switch contact Single contact Degree of protection (IP rating) IP40 Type of electric connection PCB connection Voltage type for actuating DC Height 25 mm Drive, polarization Polarity free Nominal current 8 A Depth 29 mm With detachable clamps No Rated control supply voltage at DC 12 – 12 V Rated control supply voltage at AC 50 Hz 12 – 12 V Number of contacts as normally closed contact 0 Number of contacts as change-over contact 2 Number of contacts as normally open contact 0 Width 12.4 mm With forced-guided contacts No Complete with socket No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
