Relay Miniature Plug-In 4Co LED 6A 24Vac

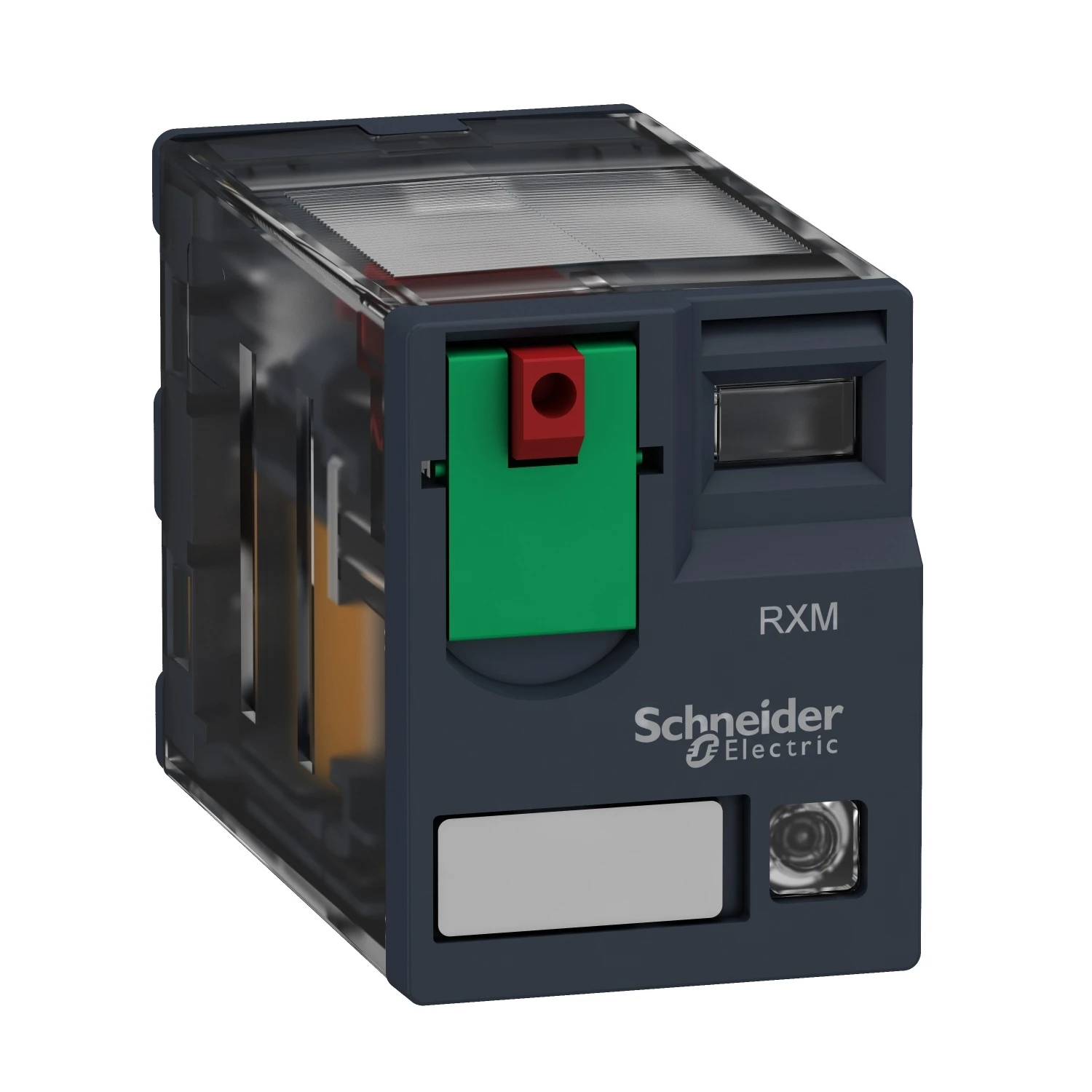

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 24 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd’s, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts. · · · This Zelio RXM miniature plug-in relay has a coil control voltage of 24V AC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 6A. · · It has large choice of number of contacts for high rated current use with space-saving design. · · It also offers one-step loackable test button and “Power On” LED for readiness. · · It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. · · The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. · · Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). · · Status display with LED: clearly signal both in the day and night.
