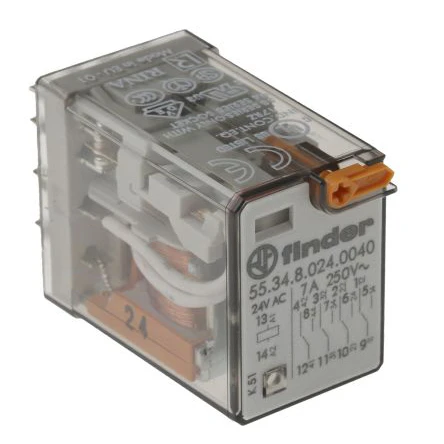

Finder Relay Plug-In 4P Co Lockable 7A 24V Ac Test Button&Mech Ind
Finder Relay Plug-In 4P Co Lockable 7A 24V Ac Test Button&Mech Ind
Finder Relay Plug-In 4P Co Lockable 7A 24V Ac Test Button&Mech Ind - Image 2
Finder Relay Plug-In 4P Co Lockable 7A 24V Ac Test Button&Mech Ind - Image 3

Finder Relay Plug-In 4P Co Lockable 7A 24V Ac Test Button&Mech Ind

£8.48 Incl. VAT

TeSys island direct starter, 3 poles, 38A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 38A and motors up to 18,5kW@400V / 20hp@480V. It provides motor protection functions including thermal overload (setting 0.76-38A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · · Contact configuration: 4 Pole Double Throw · · PCB/socket mounting · · Rated coil voltage: 24VAC · · Contact material: silver nickel · · Coil resistance: 190O · · Contact current: 7A · · Contact voltage: 30VDC/250VAC

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 55.34.8.024.0040 Categories: , , Brand: Product Code: 2500347912

Description

Technical Specifications  Technical Specifications Switching relay Type of switch contact Single contact Type of electric connection Plug-in connection Drive, switching attitude Mono stable Drive, polarization Polarity free Degree of protection (IP rating) IP40 Voltage type for actuating AC Nominal current 7 A Depth 27.7 mm Rated control supply voltage at AC 60 Hz 24 – 24 V Rated control supply voltage at AC 50 Hz 24 – 24 V Number of contacts as change-over contact 4 Number of contacts as normally closed contact 0 Number of contacts as normally open contact 0 Width 20.7 mm Height 37.2 mm With detachable clamps No With forced-guided contacts No Complete with socket No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
