Relay Screw Terminal 4 Normally Open 24Vdc
£40.87 Incl. VAT

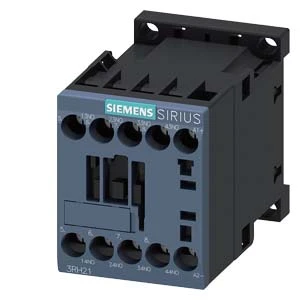

Siemens 3RH2140-1BB40 contactor relay with auxiliary switch and screw-type terminals. +/-180° rotation possible on vertical mounting surface, can be tilted forward and backward by +/-22.5° on vertical mounting surface. It supports screw and snap-on mounting. Contactor relay is switching devices for control and auxiliary circuits and are used to control, provide signals and interlock switching devices and switchgear panels. It goes without saying that the 3RH2 SIRIUS contactor relays have connection designations in compliance with the standard and use a connection system which is both time and cost saving, fulfilling the requirements from the field. The 3RH2 contactor relay and the size S00 motor contactors are the same size and have the same optical design, this represents a significant advantage, especially when it comes to accessories. · · · Size: S00 · · Voltage Rating: 690V · · Weight: 290g · · Contact Rating: 10A · · Dimensions: 45x73x57.5mm
Out of stock
Description
Technical Specifications Technical Specifications Contactor relay Mounting method Screw Voltage type for actuating DC Connection type auxiliary circuit Screw connection Rated operation current Ie, 400 V 3 A Number of auxiliary contacts as normally open contact 4 Rated control supply voltage at DC 24 – 24 V Rated control supply voltage at AC 50 Hz 24 – 24 V Interface No Manual operation possible No With LED indication No · Technical Data Sheet – Click to Download
