Schneider Electric Relay Timing Function A 1 C/O Contact 8A 24-240V 1S-100H
Schneider Electric Relay Timing Function A 1 C/O Contact 8A 24-240V 1S-100H
Schneider Electric Relay Timing Function A 1 C/O Contact 8A 24-240V 1S-100H - Image 2
Schneider Electric Relay Timing Function A 1 C/O Contact 8A 24-240V 1S-100H - Image 3
Schneider Electric Relay Timing Function A 1 C/O Contact 8A 24-240V 1S-100H - Image 4

Schneider Electric Relay Timing Function A 1 C/O Contact 8A 24-240V 1S-100H

£36.55 Incl. VAT

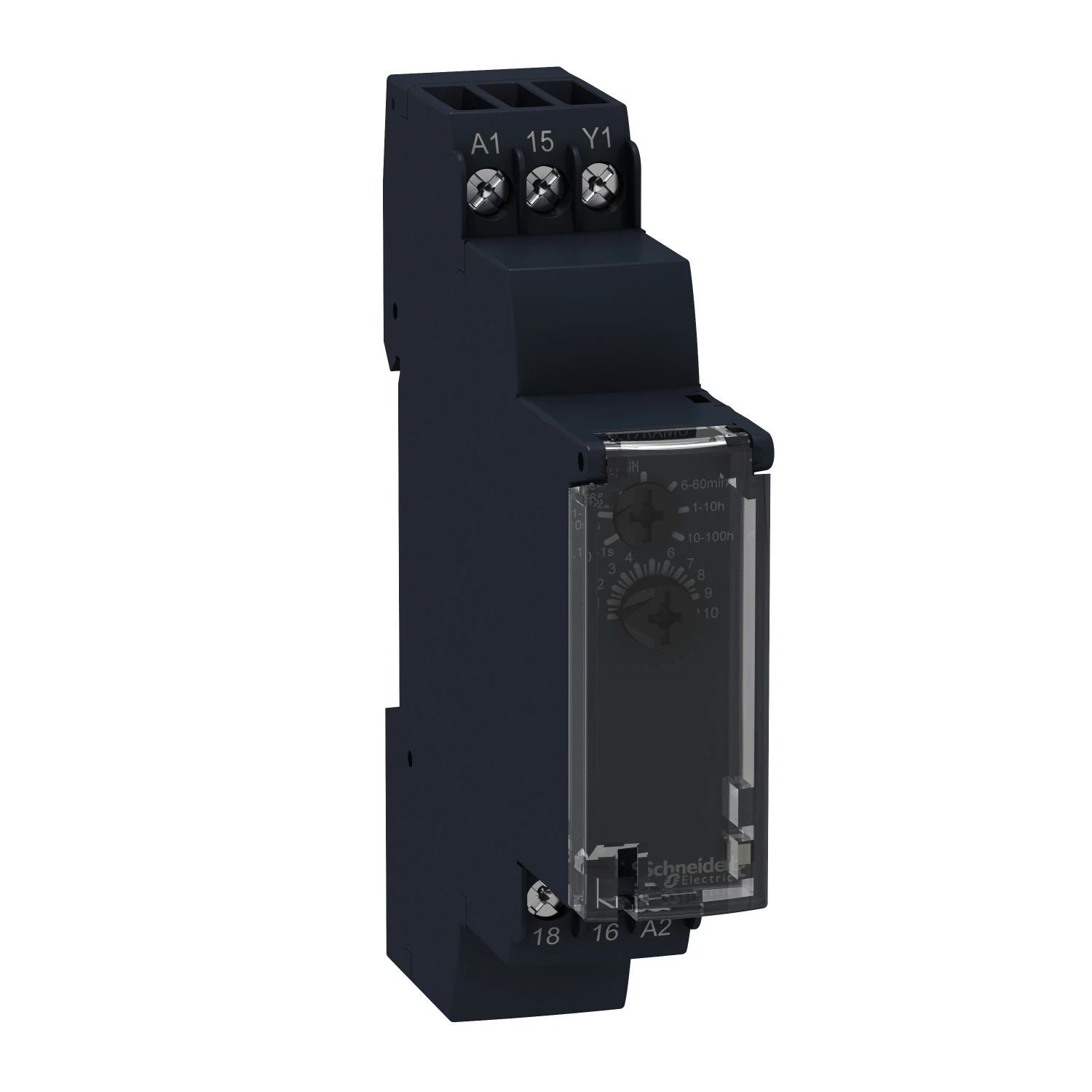

This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24 V DC, 24 to 240 V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. This timer offers pause and summation control signals. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. · · · This Zelio RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24 V DC, 24 to 240 V AC. · · It also has 1 changeover contact SPDT (single pole double throw). · · It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. · · It also offers a sealable cover, simple and precise settings with rotary trimmers. · · This timer offers pause and summation control signals. · · Single function timer for a simple integration in hard-wired logic schematics: ideal for refurbishment of old installations without using a PLC.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RE17RAMU Categories: , , , , , Brand: Product Code: 2500633042

Description

Technical Specifications  Technical Specifications Timer relay Nominal current 8 A Height 90 mm Width 17.5 mm Depth 72 mm Number of outputs, undelayed, normally open contact 0 Number of outputs, undelayed, normally closed contact 0 Number of outputs, delayed, normally closed contact 0 Number of outputs, delayed, normally open contact 0 Number of outputs, undelayed, change-over contact 1 Number of outputs, delayed, change-over contact 1 Time range 0.1 – 360000 s Rated control supply voltage at DC 24 – 24 V Rated control supply voltage at AC 50 Hz 24 – 240 V Rated control supply voltage at AC 60 Hz 24 – 240 V Function delay on de-energization No Function floating contact on energization No Remote operation possible No With semiconductor output No Pluggable on auxiliary contact block No Outputs, reversible delayed/undelayed No Function delay-on energization Yes Function floating contact on de-energization No Function star-delta No Function pulse shaping No Function flashing, starting with pulse, fixed time No Clock function, starting with pause, variable No Function flashing, starting with pause, fixed time No Clock function, starting with pulse, variable No Suitable as remote control No Suitable for DIN rail (top hat rail) mounting Yes · Technical Data Sheet – Click to Download
