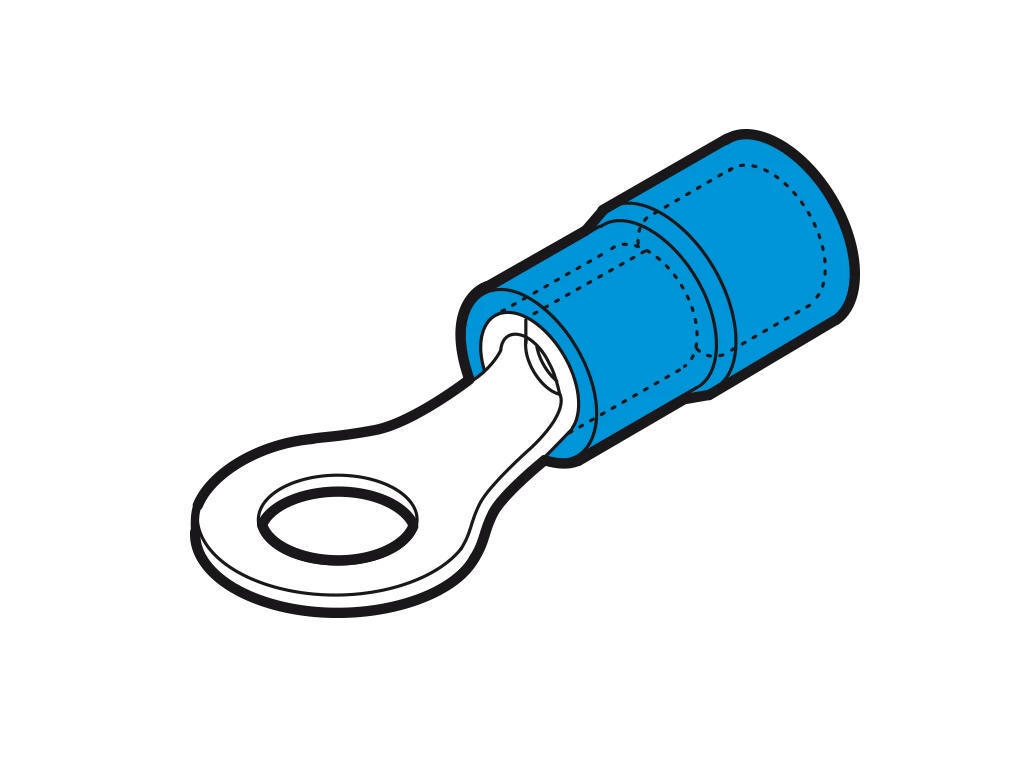

Ring Terminal Blue – M3

£0.08 Incl. VAT

1.5mm²-2.5mm² PVC insulated ring terminal M3 stud blue · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor · · Hole/Stud Size: 3 mm · · Tab/Pin Size: 7.8 mm · · Insulation Material: PVC · · Diameter: 4.9 mm

300 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BF-M3 Categories: , , Brand: Part Number: 2500221830

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Colour insulation Blue Material Copper Sleeve form Short Insulation Polyvinyl chloride (PVC) Surface protection Tinned Flange shape Ring shape Bolt dimension (metric) 3 Max. current (Imax) – A Useful for stranded conductors Yes Suitable for high temperatures (to 650 °C) No For pull protected connections No Reel packaging No Suitable for solid cores No According to DIN No Nominal cross section 1.5 – 2.5 mm² AWG-range 16 – 14 Suitable for fine strand conductors No Suitable for insulated varnish No Suitable for round conductors Yes Suitable for flat conductors No
