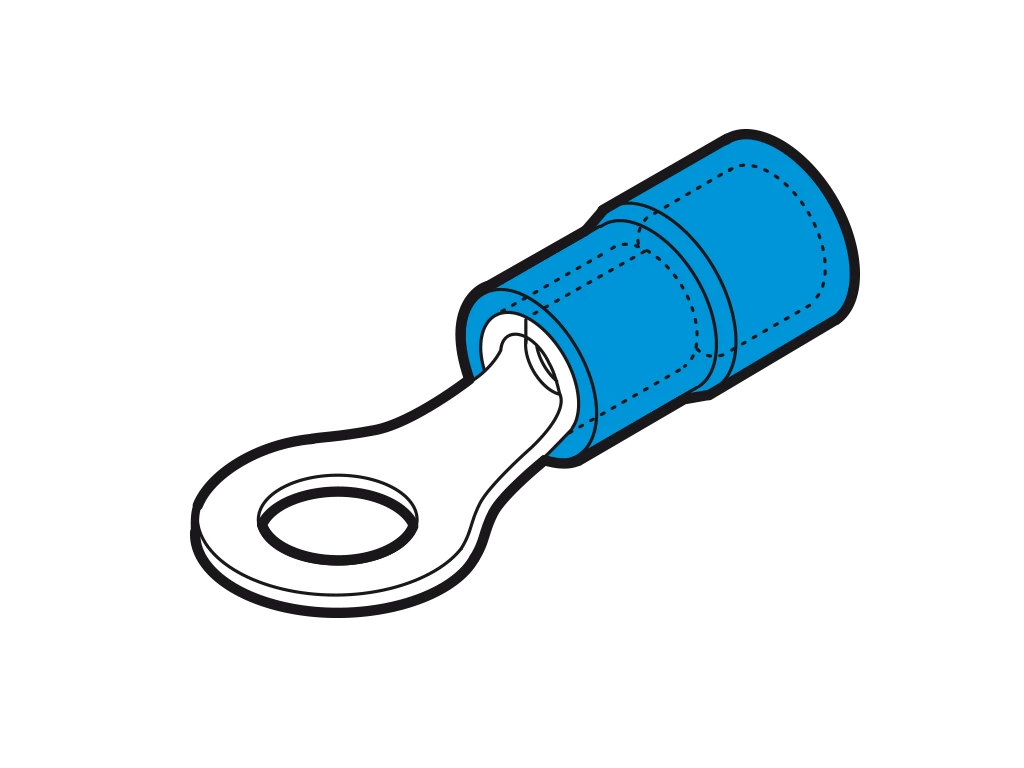

Ring Terminal Blue – M3.5

£0.08 Incl. VAT

1.5mm²-2.5mm² PVC insulated ring terminal M3.5 stud blue · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor · · Hole/Stud Size: 3.5 mm · · Tab/Pin Size: 7.8 mm · · Insulation Material: PVC · · Diameter: 4.9 mm

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BF-M3.5 Categories: , , , Brand: Part Number: 2500221831

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Colour insulation Blue Material Copper Sleeve form Short For pull protected connections No Nominal cross section 1.5 – 2.5 mm² Max. current (Imax) – A AWG-range 16 – 14 Bolt dimension (metric) 3.5 Surface protection Tinned Flange shape Ring shape Insulation Polyvinyl chloride (PVC) Suitable for high temperatures (to 650 °C) No Suitable for flat conductors No Suitable for fine strand conductors No Suitable for insulated varnish No Suitable for round conductors Yes Useful for stranded conductors Yes Suitable for solid cores No Reel packaging No According to DIN No
