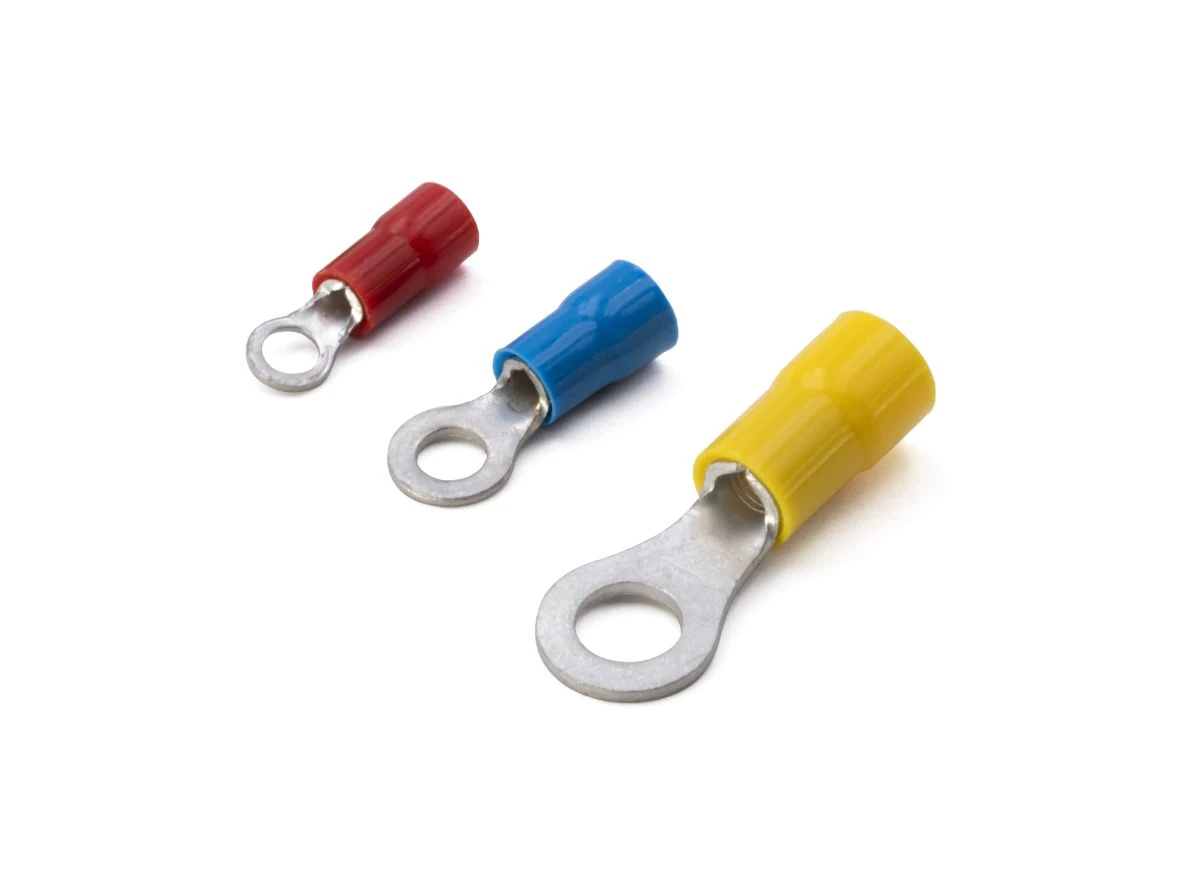

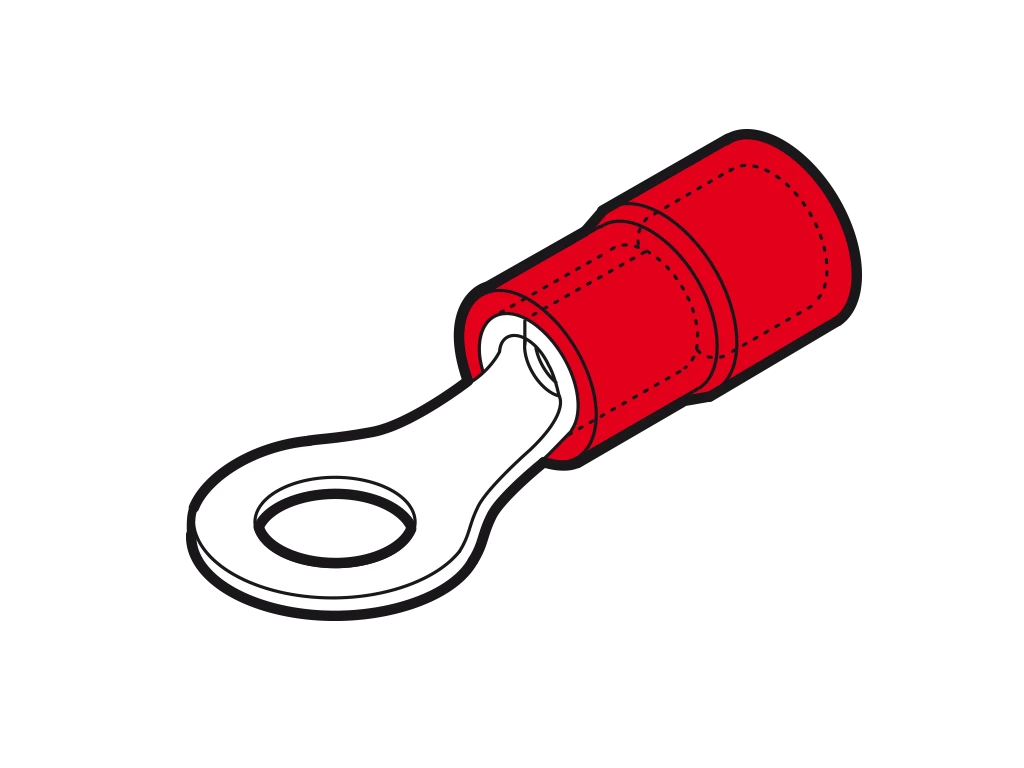

Ring Terminal Red
Ring Terminal Red
Ring Terminal Red - Image 2
Ring Terminal Red - Image 3
Ring Terminal Red - Image 4

Ring Terminal Red

£0.07 Incl. VAT

0.25mm²-1.5mm² PVC insulated ring terminal M6 stud red · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor · · For Copper Conductor · · Length Min Max: 22.9 mm · · CE Approved: Y · · Standards: UL (Canada and US) UL 498A EN 1652

700 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RF-M6 Categories: , , Brand: Part Number: 2500162462

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Material Copper Sleeve form Short Insulation Polyvinyl chloride (PVC) Surface protection Tinned Colour insulation Red Flange shape Ring shape Reel packaging No According to DIN No Useful for stranded conductors Yes For pull protected connections No Nominal cross section 1.5 – 25 mm² AWG-range 22 – 16 Max. current (Imax) – A Bolt dimension (metric) 6 Suitable for solid cores No Suitable for round conductors Yes Suitable for fine strand conductors Yes Suitable for flat conductors No Suitable for high temperatures (to 650 °C) No Suitable for insulated varnish No
