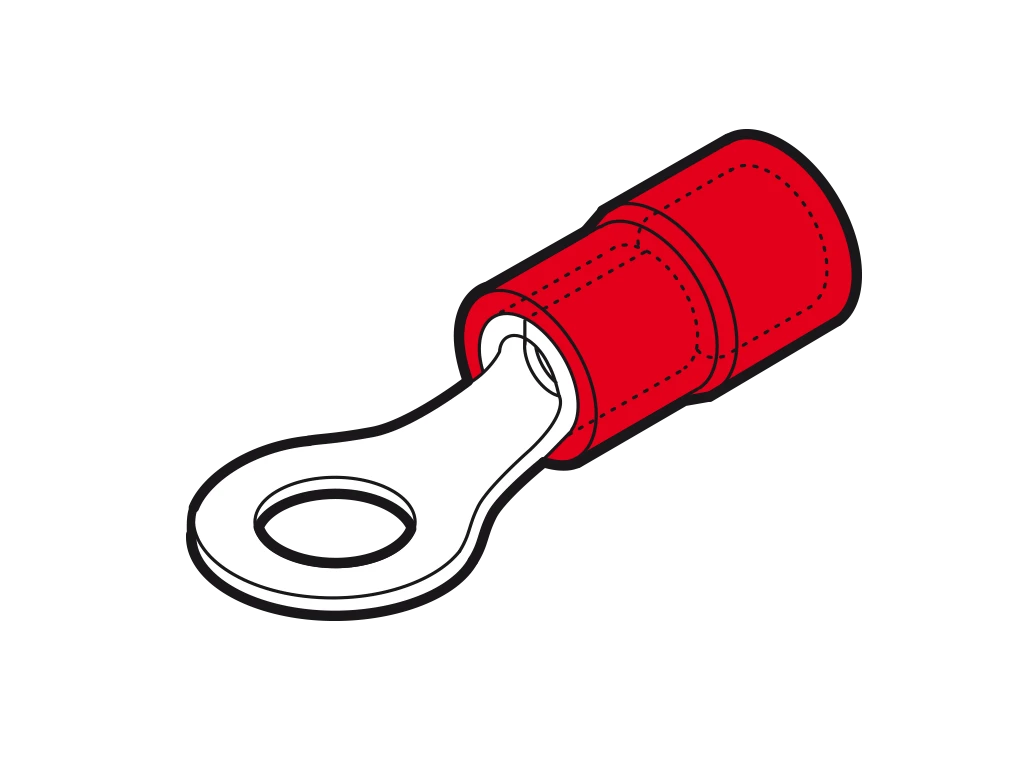

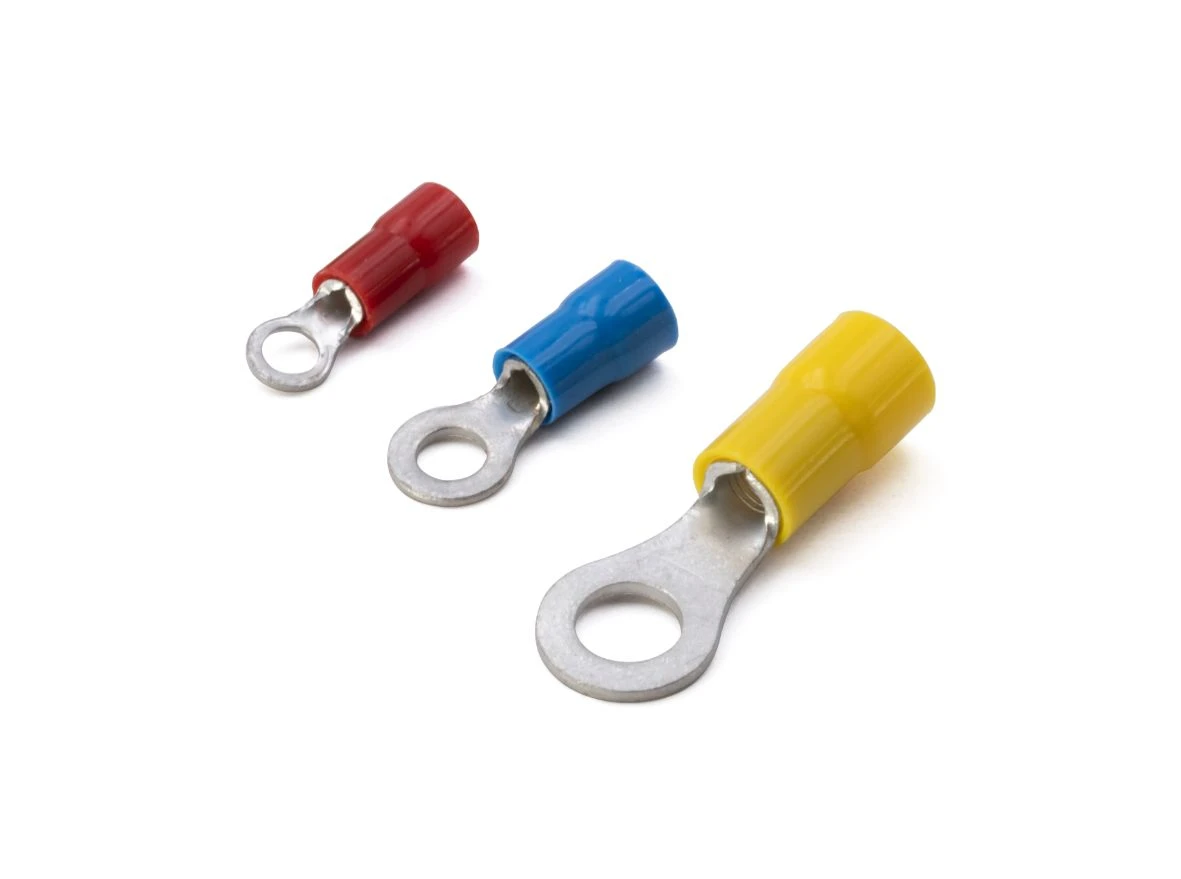

Ring Terminal Red
Ring Terminal Red
Ring Terminal Red - Image 2
Ring Terminal Red - Image 3
Ring Terminal Red - Image 4

Ring Terminal Red

£0.07 Incl. VAT

0.25mm²-1.5mm² PVC insulated ring terminal M3.5 stud red · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor

400 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RF-M3.5 Categories: , , Brand: Part Number: 2500162153

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Material Copper Sleeve form Short Insulation Polyvinyl chloride (PVC) Surface protection Tinned Colour insulation Red Flange shape Ring shape For pull protected connections No According to DIN No Reel packaging No Suitable for solid cores No Nominal cross section 0.25 – 1.5 mm² AWG-range 22 – 16 Max. current (Imax) – A Bolt dimension (metric) 3.5 Suitable for flat conductors No Suitable for fine strand conductors Yes Suitable for high temperatures (to 650 °C) No Suitable for round conductors Yes Useful for stranded conductors Yes Suitable for insulated varnish No · Technical Data Sheet – Click to Download
