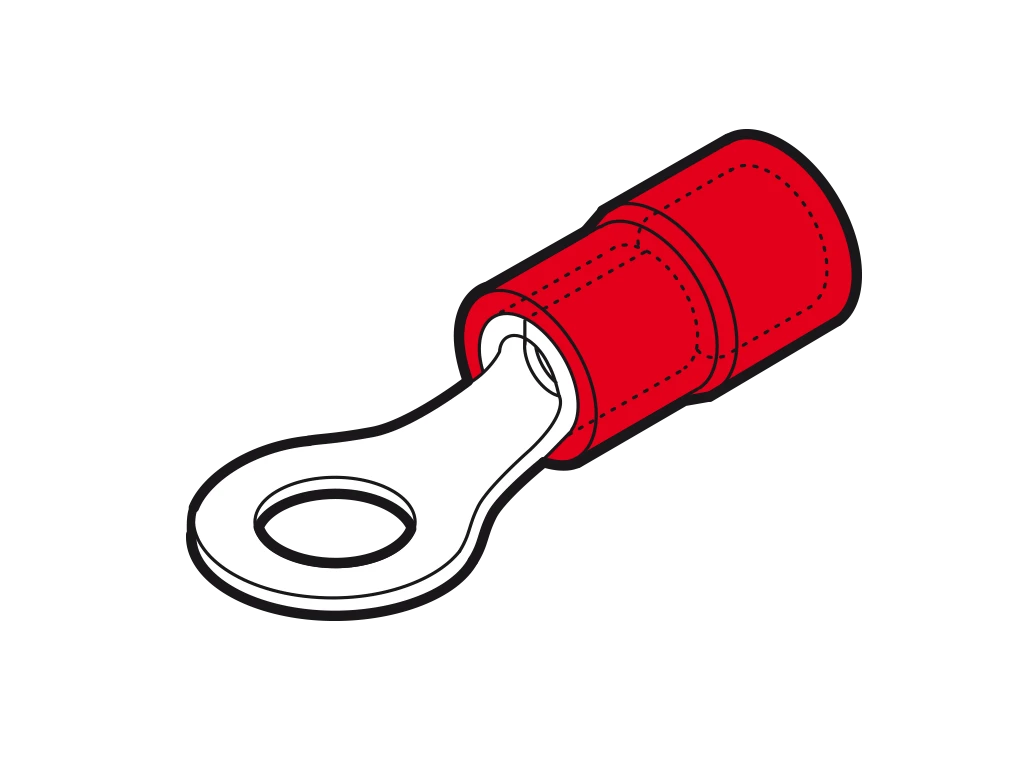

Cembre 0.25mm²-1.5mm² ring terminal M3 red [Pack of 100]
Cembre 0.25mm²-1.5mm² ring terminal M3 red [Pack of 100]
Cembre 0.25mm²-1.5mm² ring terminal M3 red [Pack of 100] - Image 2
Cembre 0.25mm²-1.5mm² ring terminal M3 red [Pack of 100] - Image 3
Cembre 0.25mm²-1.5mm² ring terminal M3 red [Pack of 100] - Image 4

Cembre 0.25mm²-1.5mm² ring terminal M3 red [Pack of 100]

Pack of 100

£9.24 Incl. VAT

0.25mm²-1.5mm² PVC insulated ring terminal M3 stud red · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor · · Hole/Stud Size: 3 mm · · Tab/Pin Size: 7.3 mm · · Insulation Material: PVC · · Diameter: 3.9 mm

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RF-M3 Categories: , , Brand: Product Code: 2500162152

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Material Copper Colour insulation Red Insulation Polyvinyl chloride (PVC) Surface protection Tinned Bolt dimension (metric) 3 Flange shape Ring shape Nominal cross section 0.25 – 1.5 mm² Max. current (Imax) – A Suitable for insulated varnish No Suitable for high temperatures (to 650 °C) No Useful for stranded conductors Yes Suitable for round conductors Yes Suitable for flat conductors No Suitable for fine strand conductors Yes Reel packaging No Suitable for solid cores No For pull protected connections No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
