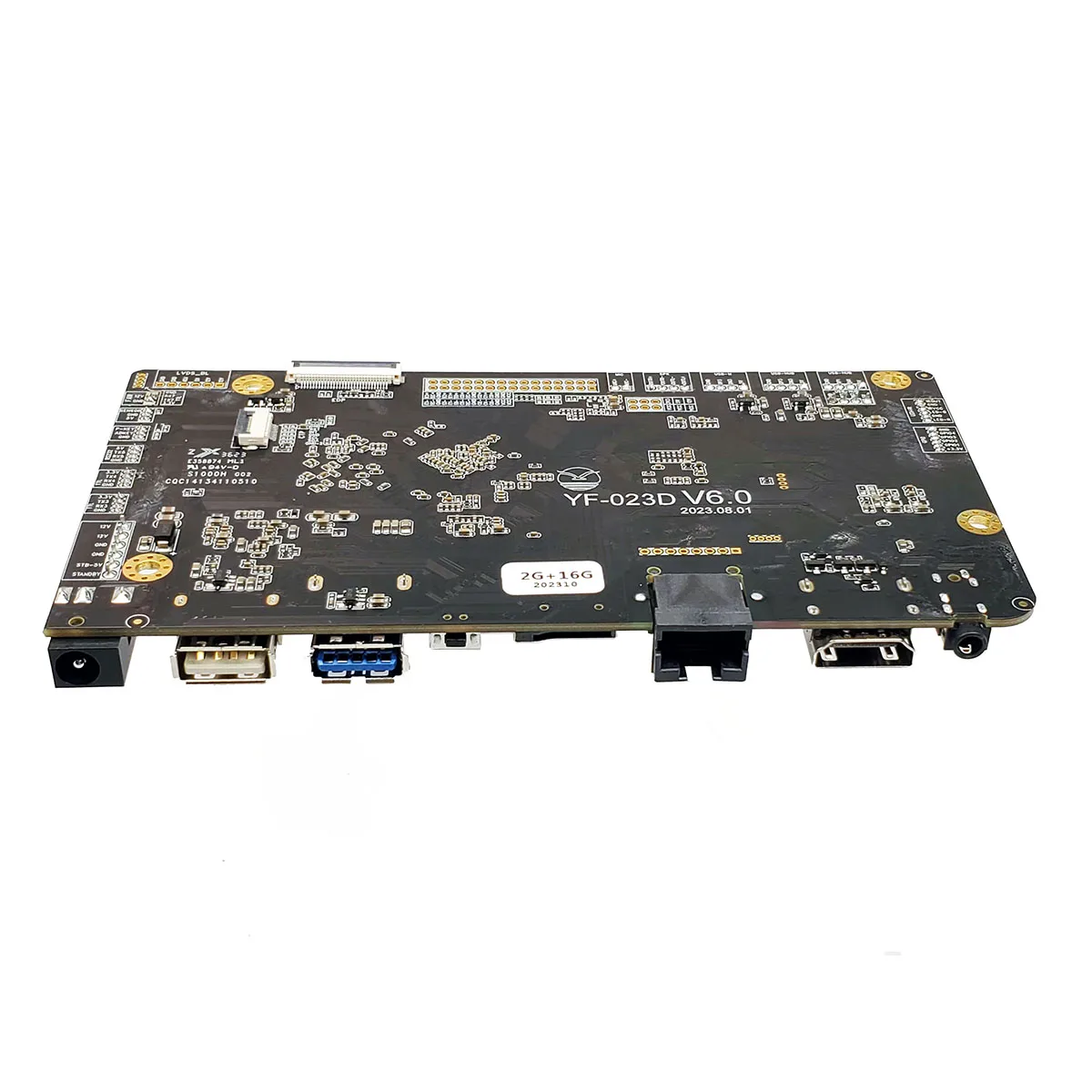

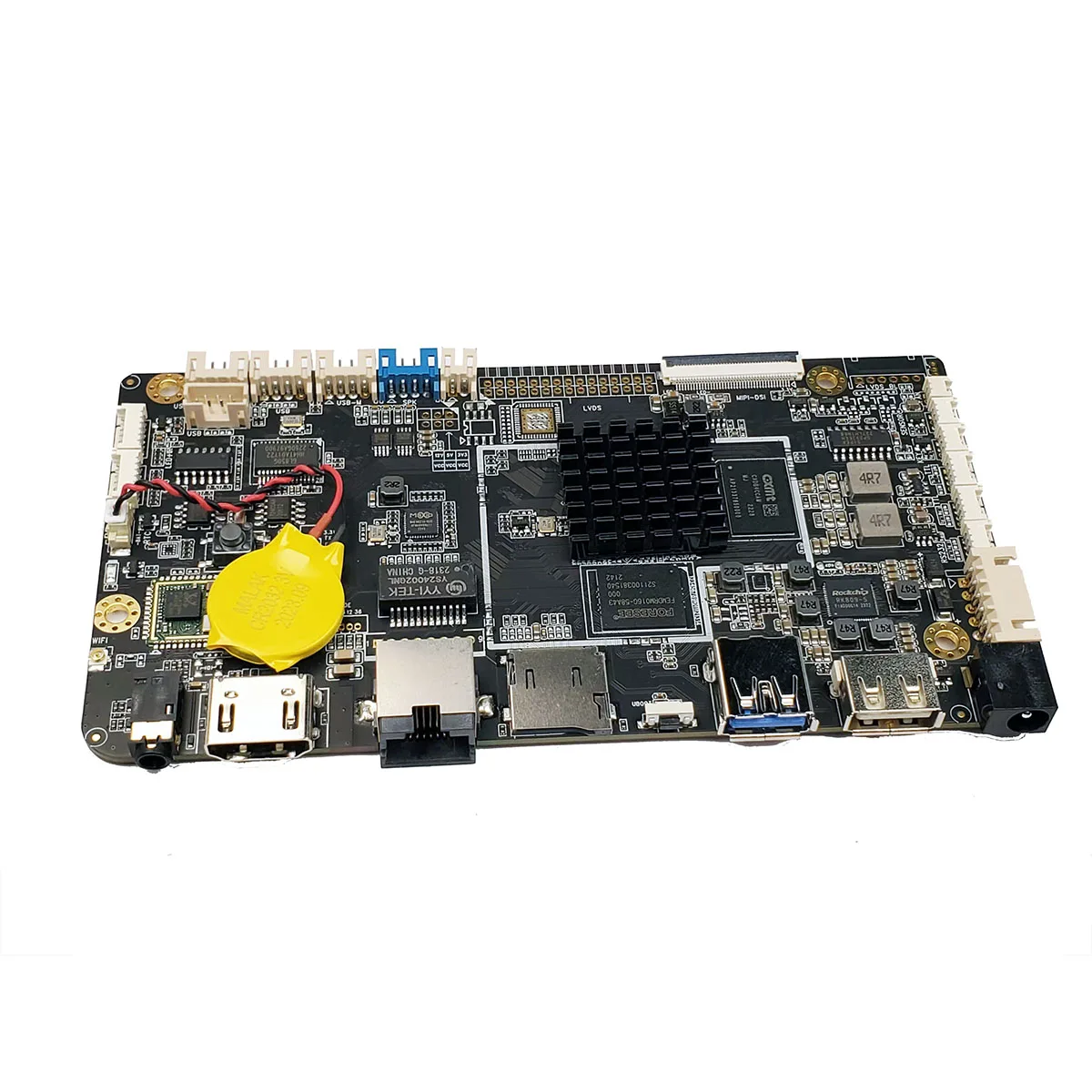

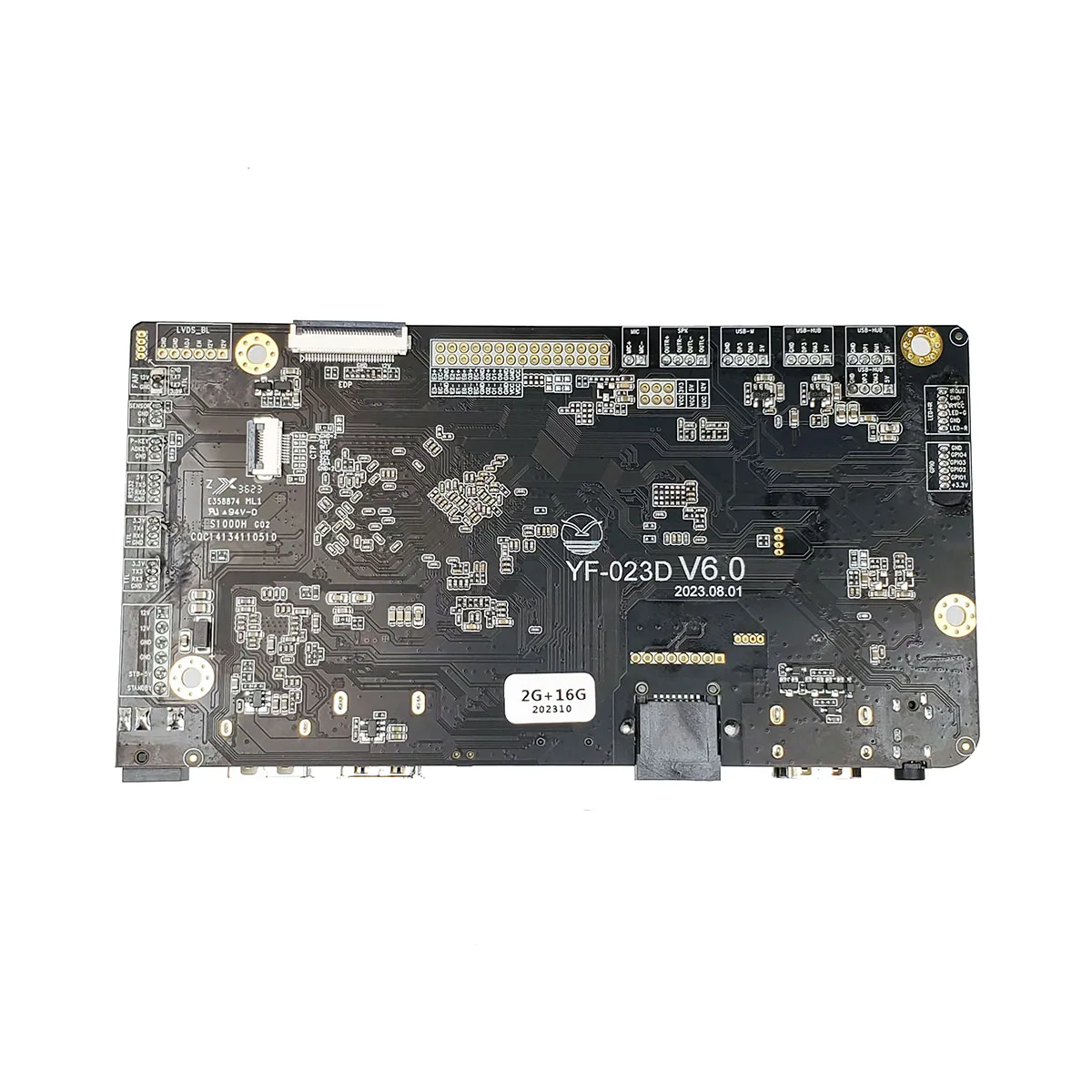

RK3566 Android Development board Mediatek Android Phone Motherboard Solution For Monitoring Video Equipment Customization

Description

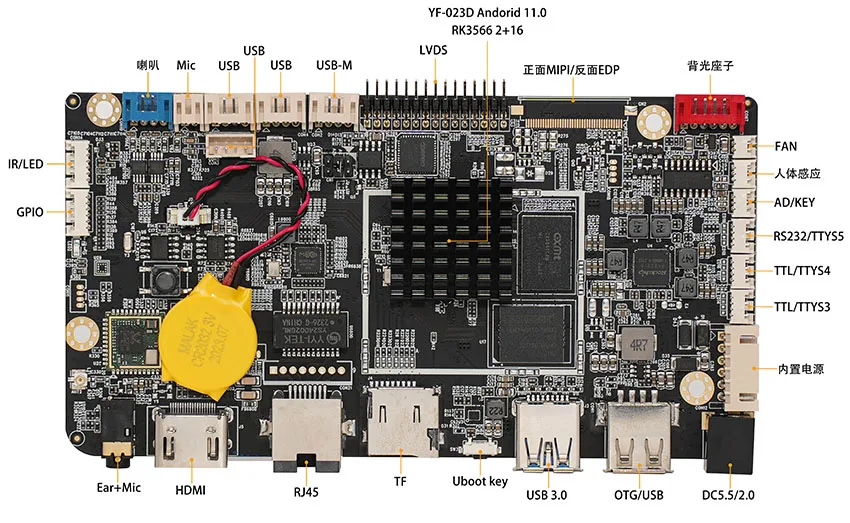

YF-023D product spec Contact us: Email: mariah @yf-meta.com Whatsapp Tel Wechat: +8618682001573 Item No.: YF-023D Product Name: YF-023D RK3566 Android OS 13 Debian 11 motherboard RS485 RS232 RJ45 TTL Uart Serial port GPIO Android board 1.1: General The YF-023D board uses Rockchip RK3566 high-performance, low-power quad-core application processor, equipped with Android11.0 system, with a main frequency of up to 1.8GHz. The embedded 3D GPU makes RK3566 fully compatible with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1. The special 2D hardware engine will maximize display performance and provide very smooth operation. The built-in NPU supports 1.0T computing power, supports almost all formats of H.264 decoder 4K@60fps, H.265 decoder 4K@60fps, and also supports H.264/H.265 encoder 1080p@60fps, high-quality JPEG encoder /decoder. Integrate multi-channel LCD driver, Ethernet, WIFI, and BT power amplifier into one, support decoding of most popular video and picture formats, dual 6/8-bit LVDS, eDP/MIPI, support 2K level Output, compatible with driving various TFT LCD displays screen, simplifying the overall system design. 1.2: Key Features – High integration level: Integrated USB/ LVDS/ Gigabit Ethernet/ WIFI/ BT/ eDP/ SD card expansion/microphone and other functions simplify the overall machine design and make the overall machine design more beautiful. – High definition: Supports 1080P/H.265 (4K2K) video decoding and various LVDS/eDP Signal LCD displays. – Comes with built-in power amplifier: Supports dual-channel 8R/2W power amplifier. – Rich interfaces: Supports USB (1 channel USB3.0)/serial port/GPIO/ADC interface expansion, which can meet the mainstream peripherals on the market. – Full-featured: Supports horizontal and vertical screen playback, video split screen, rolling subtitles, timer switch, USB data import and other functions. – Convenient management: Humanized playlist creation software facilitates advertising playback management and control. Playback log makes it easy to understand the playback status. 1.3: Layout and interface Diagram Part 2 2.1: Hardware Specification CPU Rockchip RK3566 UP to1.8GHz GPU Mali-G52-2EE High performance GPU NPU NPU support up to 1.0T RAM LPDDR4X/LPDDR4 2GB standard, optional 4GB, 8GB,16GB ROM EMMIC 16G standard, optional 32GB 64GB, up to 128GB Decoding Resolution Support 1080P/H.265(4K2K) O.S. Android11.0 Play Mode Supports multiple playback modes such as loop, timing, and insert playback Network Gigabit Ethernet, supporting WiFi/BT, wireless peripheral expansion USB2.0 interface 5 way USB HOST (4 of them are bulit-in USB 2.0, one for USB OTG) USB 3.0 interface Standard USB 3.0 x 1way Serial Ports TTL x 3way,Debug x 1way,RS232 x 1way Ethernet RJ45 x 1way,10M/1000M, Adaptive Ethernet HDMI Output UP to 3840*2160 EDP Output EDP x 1way (up to 1920*1080) LVDS Output LVDS x1way (up to 1920*1080) MIPI Output (up to 1920*1080) Audio Output Left and right channelOutput 8R/2W speakers RTC Support RTC (Real Time Clock) Hardware-Watch-dog Support Timing-on/off Support O.S Updating Updating through TF card or Computer Special Function Updating Resolution firmware through USB Promotion RK3566 Android 13 Android 11 Debian 11 Motherboard RK3568 Android motherboard supports 4K HDMI-output, Dual-Screen, Three Screen, one board driving two or Three Screen at the same time RK3588 Android Motherboard for High-end applications Octa-core 64Bit 2.4GHz CPU main frequency HDMI-IN Supports 8K eDP output, integrated LVDS MIPI RK3562 Rockchip Android Motherboard support MIPI camera MIPI LCD LvDS LCD, 5V &12V DC power input, Power management function. 4inch 720*720 resolution LCD with round Touch panel RK3566 android board for dashboard of Motor-bike E-bike and Smart home Media player SKD Smart frame SKD KIT with 7inch MIPI LCD+Touch Panel+Rockchip RK3566 android motherboard+MIPI Panel cable 5″ 6″ MIPI LCD Screen LCD Panel Android Motherboard 5MP USB Camera digital signage display Kit 6inch multi-touch-screen kit YF-088D RK3566 small size think JST connector Android motherboard for thin LCD YF-004G YF-006G Cheap Android 6.0 All Winner A64 Android Motherboard Board for Smart E-scale Electronic scale Rockchip YF-028E RK3568 LVDS HDMI-in HDMI-out eDP MIPI Android 11 Android 13 Debian 11 Android Motherboards Linux Industrial Board for Advertising Digital Signage Touch Displays YF-029E RK3568 dual LVDS Dual eDP Android Motherboard for Double Side Kiosk Totem indoor Monitor Ad Screen Lcd advertising Display Media Player Rockchip RK3288 YF-025H Android OS 8.1 android 6.0 android development motherboard supports dual-screen monitor LVDS+MIPI, eDP+MIPI, LVDS+MIPI Our Services Mini Order Qantity: 1piece Ready for Ship goods OEM ODM Customization Quality Guarantee:1 year After Sale Service: Response within 5 minutes YF-023D RK3566 YF-022A RK3588 YF-029E RK3568 Double LVDS YF-028E RK3568 HDMI-In YF-020E RK3568 V-by-One YF-025H RK3288 Company Information ShenZhen Young-Feel Electronic Technology Co., LTD(Referred to as YF)located in Bo’an, Shenzhen, Founded in 2009, with 20+ RD engineers, and over 14 years experience, YF has been specialized in Android embedded development platform, independently development Android smart modules, and Android industrial control motherboards based on Rockchip, Allwinner and Mstar platform. YF integrates R&D, production and sales as one. Provides solutions for Android platform software and hardware, Android operating system layer software consulting and custom development and OEM, ODM, and other related services. YF has been Compliant with ISO9001:2015, all the products meet the standard of RoHS and CE certification, YF Owns more than 50 patents both on hardware and software based on android and linux ubuntu Debian platform. YF has awarded excellent partnership with BOE, MI, CREC, Etc, earned outstanding reputations both in domestic and worldwide. YF Company Faith: “Excellent service, Quality is our life, and Always striving for improvement and make it better”. With YF Young-feel, your business is safe, your money is safe. Choose Young-feel, choose win-win partner.

.
