RK3566 motherboard customize OEM/ODM/built in 4G+WIFK+LvdS+Mipi+Edp+Hd-Mi output,4K UI RAM optional 2G/4G/8G+16G/32G/64G/128G

Description

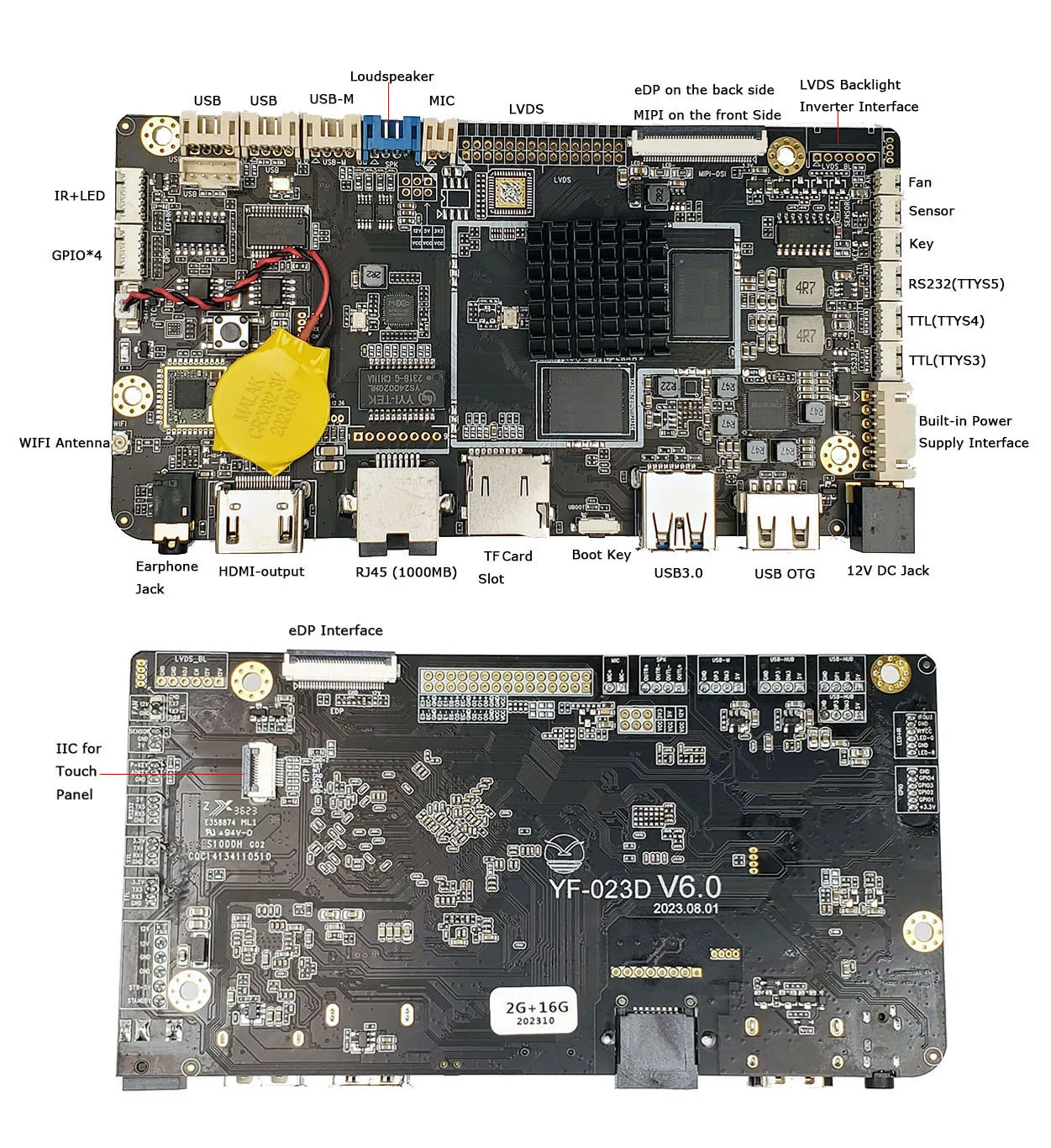

For better price, please check with Tel/We-chat/WhatsApp: +86 13822834249 Email: chloe@ yf-meta.com Product Name: All-in-one Android OS 11 Linux Debian 10 RJ45 Blue-tooth RS232 TTL IIC-Touch panel Android Embedded Motherboard Mainboard Driver Board Controller Board PCBA for Digital-signage Smart Home Advertising Advertisment Machine Self-service Terminal Machine. 2GB +32GB Andoid OS 13 Rockchip RK3566 Intelligent Android Board for smart home Advertisement Machine Quad-core Motherboard Android OS 13 ARM based For KIOSK POS Advertisement Touch Screen Item No. : YF-023D Main Interface: LVDS output x 1 (up to 1920*1080) eDP output x 1 (up to 1920*1080) Mipi output x 1 (up to 1920*1080) HDMI output x 1 (up to 3840*2160) USB3.0 x 1 ( for data input and output) USB OTG x 1 (image updating through OTG, ) USB2.0 built-in x 4 way TF card Slot TTLYS3 (for TTL) TTLYS4 (for TTL) TTLYS5 (for RS232) TTLSY7 (for TTL) GPIO x 1 I2C (on back of the board, for I2C TP) POE function (optional) RJ45 (up to 1000M) Power Jack (12V DC power supply) Built-in power interface Backlight control interface Remark: USB functiron: for data input /output, Touch panel, USB camera, USB NFC, USB 4G/5G module Overview CPU: RK3566 4-core processor, high performance, low power consumption Operating system: Android11.0 system, Main frequency: Up to 1.8GHz. Embedded 3D GPU, RK3566 is fully compatible with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1. The special 2D hardware engine maximizes display performance and provides very smooth operation. The built-in NPU supports 1.0T computing power, supports full-format H.264 decoder 4K@60fps, H.265 decoder 4K@60fps, supports H.264/H.265 encoder 1080p@60fps, and high-quality JPEG encoding converter/decoder. . Integrated LVDS eDP Mipi LCD driver Ethernet, WIFI and BT power amplifier integrated into one, Supports decoding of most currently popular video and picture formats, dual 6/8-bit LVDS, eDP /MIPI, supports 2K-level output and is compatible with driving various TFT LCD displays, simplifying the overall system design. Key Features Integrate USB/LVDS/Gigabit Ethernet/WIFI/BT/eDP/SD card expansion/microphone and other functions to simplify the overall machine design and make the overall machine design more beautiful. Supports 1080P/H.265 (4K2K) video decoding and various LVDS/eDP signal LCD displays. Support dual-channel 8R/2W power amplifier. Supports USB (1-way USB3.0)/serial port/GPIO/ADC interface expansion, which can meet the needs of mainstream peripherals on the market. Supports horizontal and vertical screen playback, video split screen, rolling subtitles, timer switch, USB data import and other functions. Humanized playlist creation software for easy advertising playback management and control. Playback log makes it easy to understand the playback status. Hardware Specification CPU Rockchip RK3566 UP to1.8GHz GPU Mali-G52-2EE High performance GPU NPU NPU support up to 1.0T RAM LPDDR4X/LPDDR4 2GB standard, optional 4GB, 8GB,16GB ROM EMMIC 16G standard, optional 32GB 64GB, up to 128GB Decoding Resolution Support 1080P/H.265(4K2K) O.S. Android11.0 Play Mode Supports multiple playback modes such as loop, timing, and insert playback Network Gigabit Ethernet, supporting WiFi/BT, wireless peripheral expansion USB2.0 interface 5Way USB HOST (4 of them are bulit-in USB 2.0, one for USB OTG) USB 3.0 interface Standard USB 3.0 x 1way Serial Ports TTL x 3way,Debug x 1way,RS232 x 1way Ethernet RJ45 x 1way,10M/1000M, Adaptive Ethernet HDMI Output UP to 3840*2160 EDP Output EDP x 1way (up to 1920*1080) LVDS Output LVDS x1way (up to 1920*1080) MIPI Output (up to 1920*1080) Audio Output Left and right channelOutput 8R/2W speakers RTC Support RTC (Real Time Clock) Hardware-Watch-dog Support Timing-on/off Support O.S Updating Updating through TF card or Computer Special Function Updating Resolution firmware through USB Our Services Mini Order Qantity: 1pieces Ready for ship goods OEM ODM on android motherboard hardware and software based on Rockchip, Allwinner, Mstar Quality Guarantee:1 year After Sale Service: Response within 5 minutes Application Android Development Motherboard SKD Samples Android Development Motherboard Round LCD solutions Solutions for Commmercial Android Tablet with Strip Light Android development motherboard Solutions for Smart Cashier POS machine (one board driving two LCD screen with same or different display) Android development motherboard Solutions for Strip LCD panels (Used for Hospital, Subway, high-speed train, goods Display Rack, Digital-Signage Display Android development motherboard Solutions for KIOSK, Self-service Terminal, POS machine, HMI, Smart Home, Etc (Used for Supermarket, Elevator, Hospital, Government affairs, Digital-signage Display) Android development motherboard Solutions Applications Field

.
