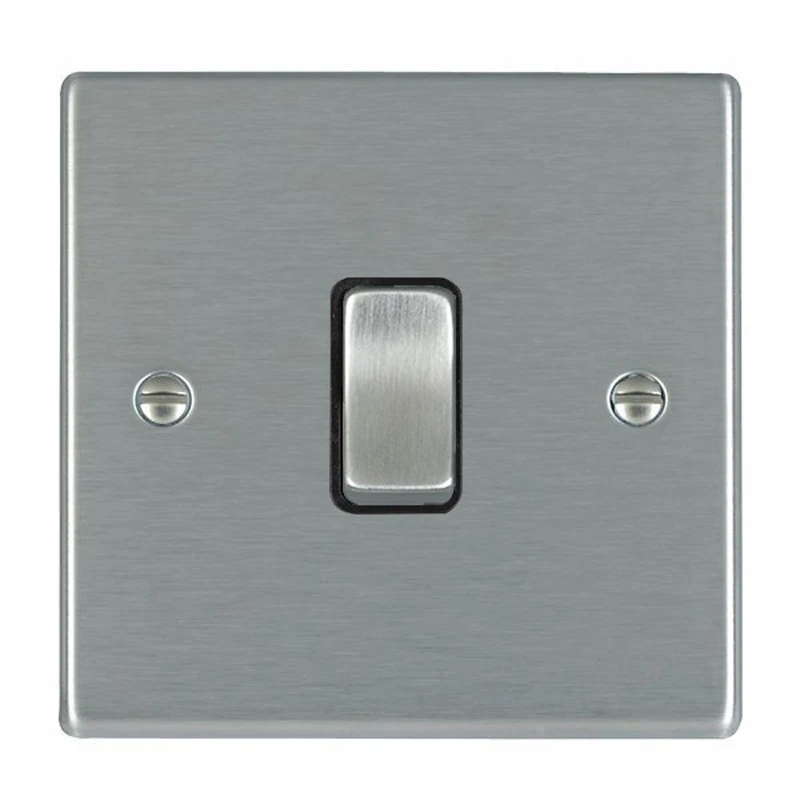

Rocker Switch 1 Gang 2 Way 10A 88 x 88mm Satin Steel/Satin Steel Black Insert
Rocker Switch 1 Gang 2 Way 10A 88 x 88mm Satin Steel/Satin Steel Black Insert
Rocker Switch 1 Gang 2 Way 10A 88 x 88mm Satin Steel/Satin Steel Black Insert - Image 2

Rocker Switch 1 Gang 2 Way 10A 88 x 88mm Satin Steel/Satin Steel Black Insert

£10.66 Incl. VAT

Hamilton Hartland Rocker Switch with satin stainless finish. This product range of sleek and stylish accessory with slim front plate to complement today’s interiors. This attractive range is available in nine elegant finishes with complementary switch insert finish. Must be earthed. Internal Use Only. · · · Single – Nominal Dimensions H: 88.0mm W: 88.0mm D: 5.0mm – Box Fixing Hole Centers: 60.3mm · · Generic Size: Single · · Switched Poles: Single · · Current Rating: 10AX · · Voltage: 220/250V AC · · Maximum Load 10 Amp inductive · · Mains Frequency: 50Hz · · IP Rating: IP2XD · · Standard/Approval: BS EN 60669-1 · · Insert Finish/Surround Colour: Satin Steel/Black – Plate Finish: Satin Steel

55 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 74R21SS-B Categories: , , Brand: Part Number: 2500138839

Description

Technical Specifications  Technical Specifications Switch Method of operation Rocker Mounting method Flush mounted Material Metal Colour Stainless steel Colour of rocker/switch operator Stainless steel Illumination No Wiring system Two-way switch Assembly Basic unit with full cover plate Depth of device 25 mm Width of device 88 mm Rated current 10 A Number of module spaces (modular system) 1 Number of rockers/gangs 1 Height of device 88 mm · Technical Data Sheet – Click to Download
