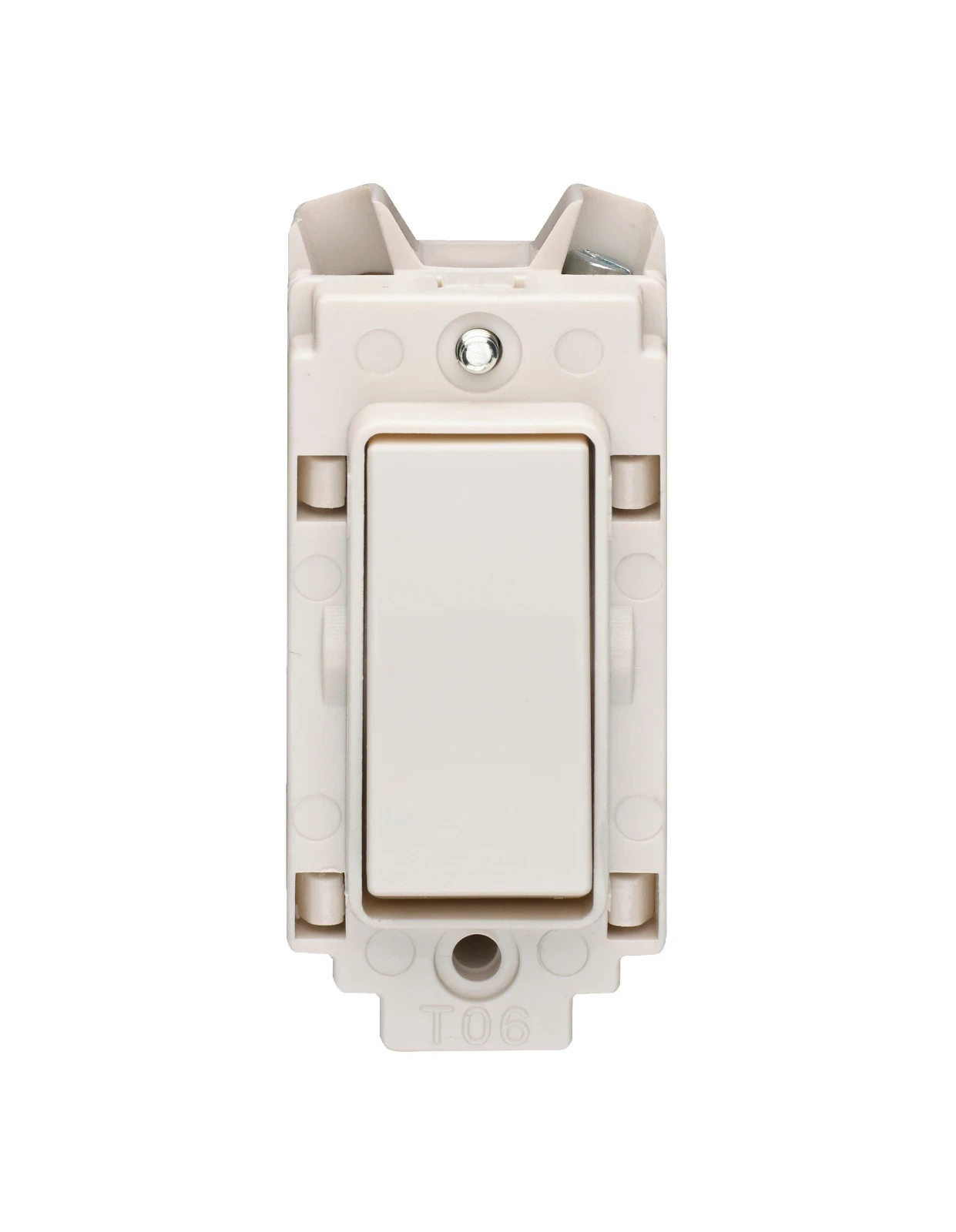

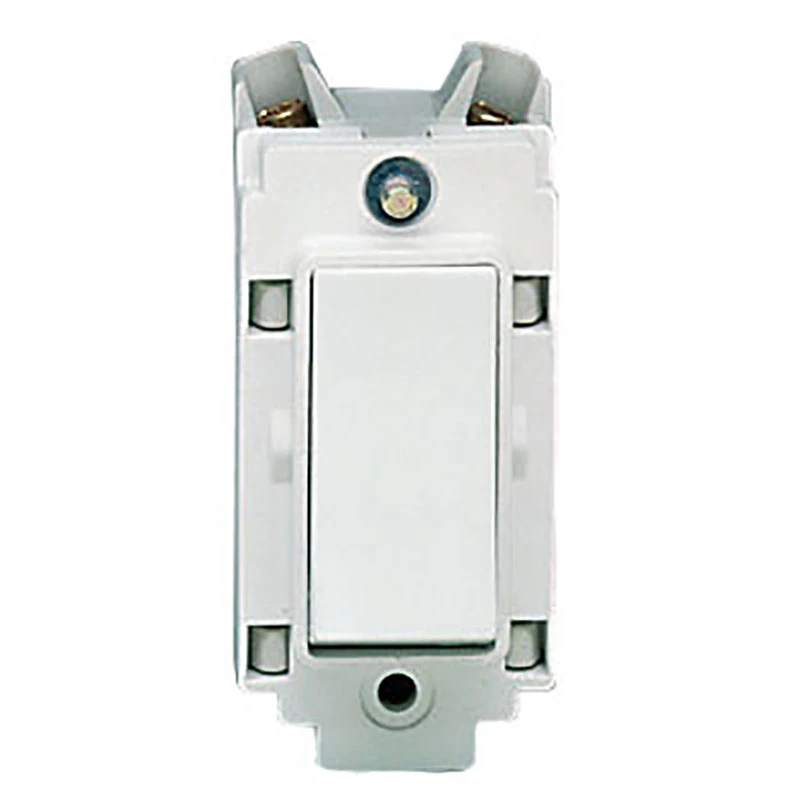

Rockergrid 1 Pole 1 Way Retractive Grid Switch 10A White
Rockergrid 1 Pole 1 Way Retractive Grid Switch 10A White
Rockergrid 1 Pole 1 Way Retractive Grid Switch 10A White - Image 2
Rockergrid 1 Pole 1 Way Retractive Grid Switch 10A White - Image 3

Rockergrid 1 Pole 1 Way Retractive Grid Switch 10A White

£4.49 Incl. VAT

The Crabtree Rockergrid 4430 is manufactured to BS EN60669-1. The unique labyrinth switch design minimises visible arc flash and prevents front access to live parts. The positive drive switch action prevents balancing between the ON and OFF position and gives reliable indication of the contact position. It features two earth terminals are fitted as standard to the switched single and twin socket and the rocker is easy to operate. The switch is complemented by products which cater for specific applications such as cooker control units, shaver units, fan control switches and shower control switches. · · · Screwed terminals · · White Plastic · · Gridswitch

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 4430 Categories: , , Brand: Part Number: 2500110851

Description

Technical Specifications  Technical Specifications Switch Colour White Method of operation Rocker Minimum depth of back box 25 mm Colour of rocker/switch operator White Switching current for fluorescent lamps 10 AX Width of device 25 mm Depth of device 31 mm Height of device 55.5 mm Number of rockers/gangs 1 Washing machine switch No With mounting plate No Halogen free Yes Number of module spaces (modular system) 1 Nominal voltage 250 V Recess depth 20.5 mm Rated current 10 A Feedback-signal contact No Push button switch Yes · Technical Data Sheet – Click to Download
