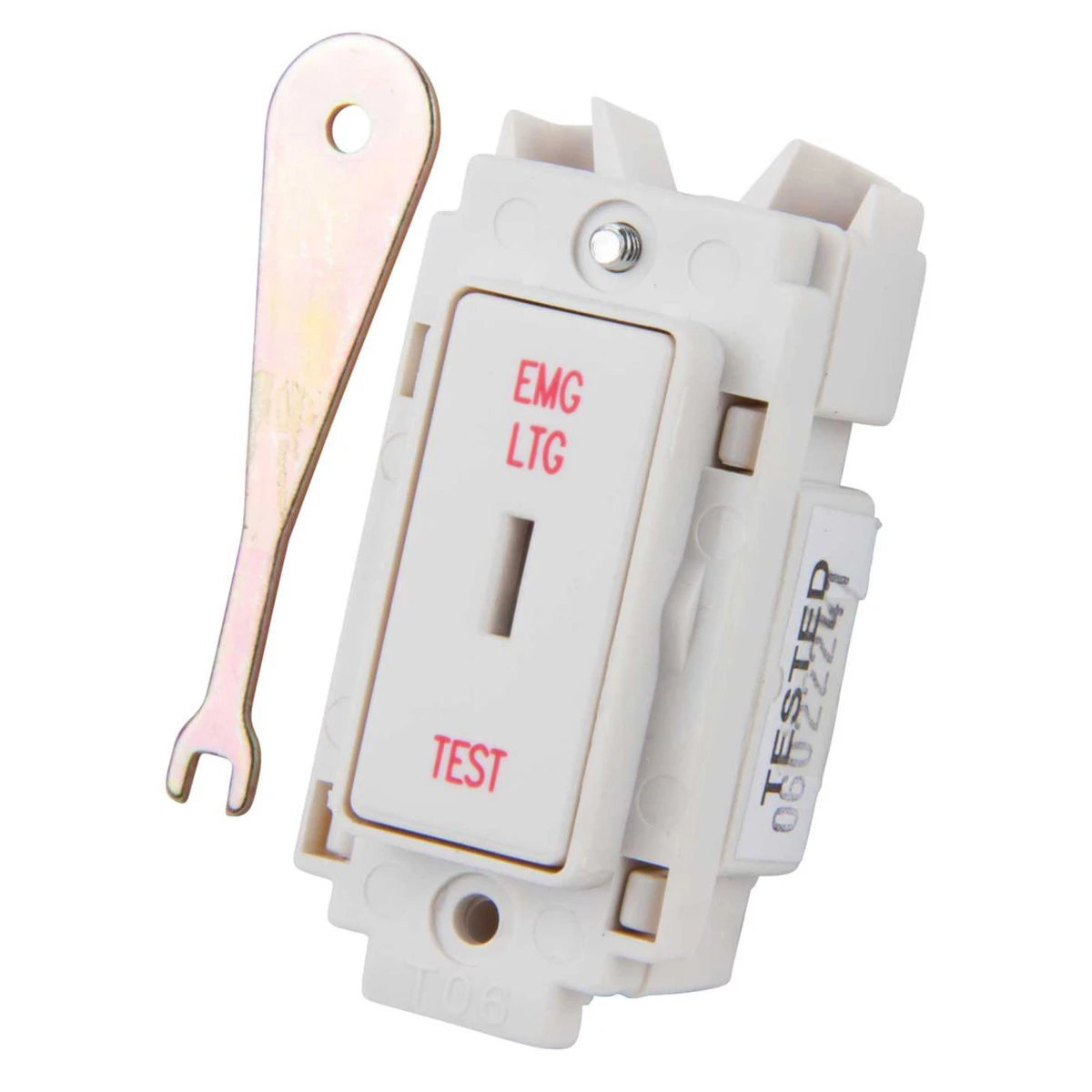

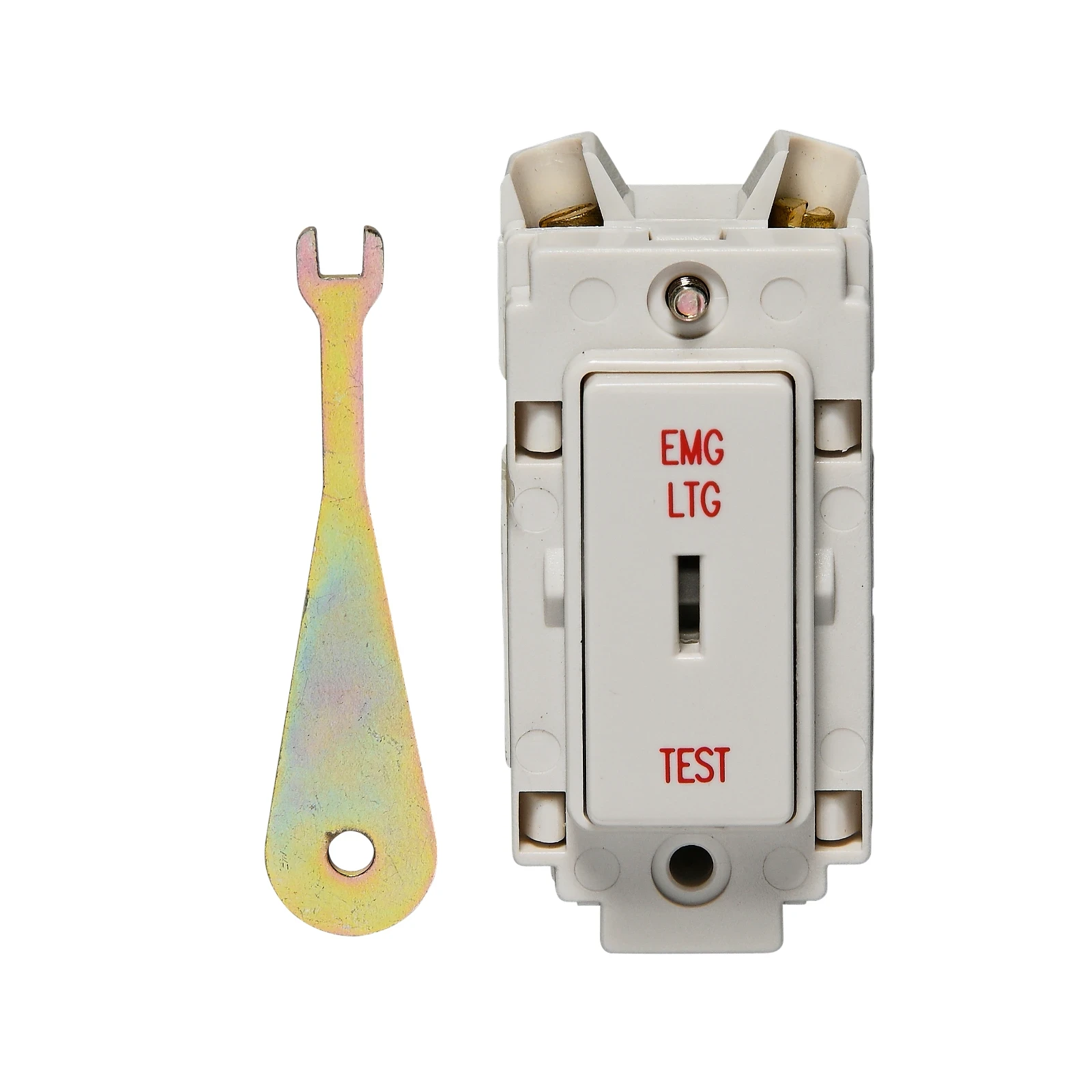

Rockergrid 2-Pole 2-Way Emergency Lighting Test Grid Switch 20A White
Rockergrid 2-Pole 2-Way Emergency Lighting Test Grid Switch 20A White
Rockergrid 2-Pole 2-Way Emergency Lighting Test Grid Switch 20A White - Image 2
Rockergrid 2-Pole 2-Way Emergency Lighting Test Grid Switch 20A White - Image 3

Rockergrid 2-Pole 2-Way Emergency Lighting Test Grid Switch 20A White

£14.92 Incl. VAT

The Crabtree Rockergrid 4461/ELT is manufactured to BS EN60669-1. The unique labyrinth switch design minimises visible arc flash and prevents front access to live parts. The positive drive switch action prevents balancing between the ON and OFF position and gives reliable indication of the contact position. It features two earth terminals are fitted as standard to the switched single and twin socket and the rocker is easy to operate. The switch is complemented by products which cater for specific applications such as cooker control units, shaver units, fan control switches and shower control switches. · · · Screwed terminals · · White Plastic · · Gridswitch

6 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 4461/ELT Categories: , , Brand: Part Number: 2500117530

Description

Technical Specifications  Technical Specifications Switch Method of operation Key Recess depth 20.5 mm Rated current 20 A Number of rockers/gangs 0 Number of module spaces (modular system) 1 Depth of device 25 mm Width of device 25 mm Minimum depth of back box 25 mm Height of device 55.5 mm Nominal voltage 250 V Switching current for fluorescent lamps 20 AX With mounting plate No Feedback-signal contact No Push button switch No Washing machine switch No Halogen free Yes · Technical Data Sheet – Click to Download
