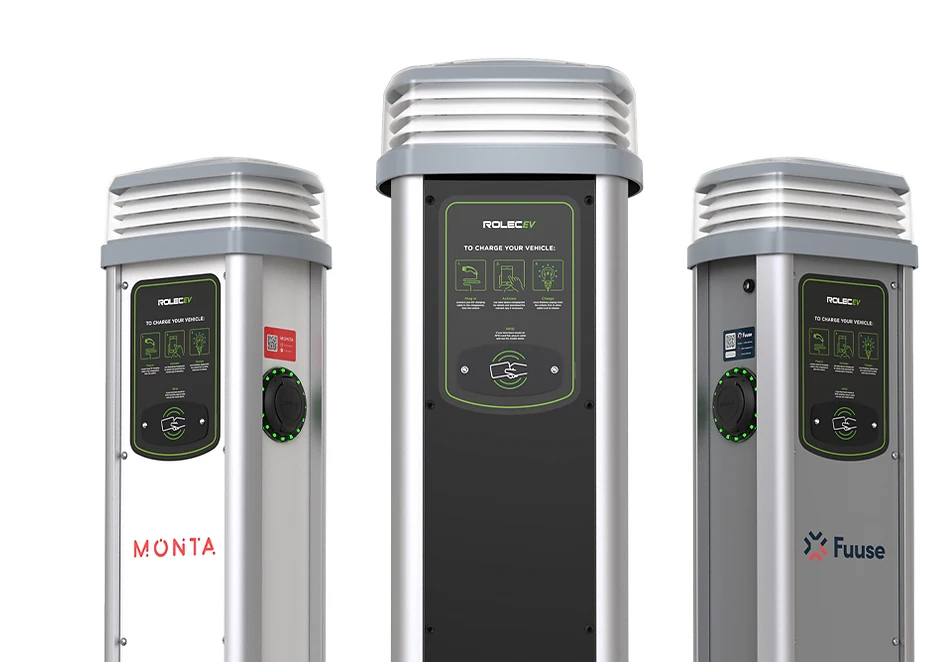

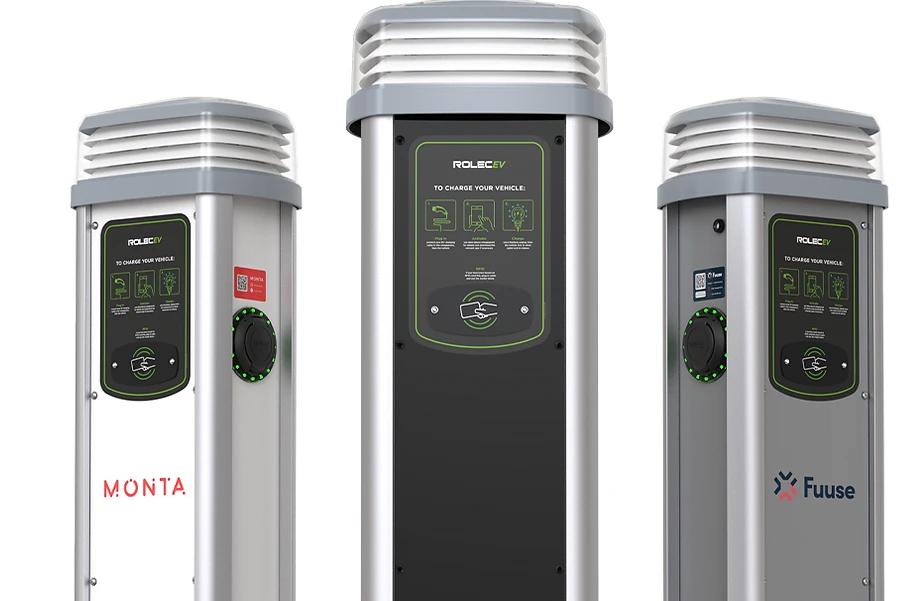

Rolec Quantum EV Charging Pedestal 3 Phase Black 2 x Type 2 (IEC 62196) Charging Sockets Up to 22kW (32A) per socket 1 x 63A 400V AC
£3,348.92 Incl. VAT
The QUANTUM EV charging pedestal is a sophisticated and resilient EV charging point, providing a combination of durability and impeccable design for all locations. This charger’s integrated LED amenity lighting also provides greater visibility of the charging bays and surrounding areas.This future-proof OCPP compliant pedestal can offer a simple plug & charge or pay-to-charge solution via the EV driver’s smartphone and/or RFID card/fob through any chosen OCPP back-office management system. · · · Plug & charge, mobile app or RFID controlled charging · · TruePEN PME fault detection (no earth rod required) · · Cable lock feature (can be permanently locked by user) · · Integrated RFID reader(s)
29 in stock
Description
Technical Specifications Technical Specifications Charging device for electric vehicles Mounting method Floor fastening Impact resistance (IK rating) IK10 Installation side connection model 3-phase Frequency 50/60 Hz Voltage type of supply voltage AC Open Charge Point Protocol (OCPP) version 1.6 Width 375 mm Housing material Aluminium Depth 275 mm Height 1440 mm Max. power per charging point 22 kW Number of socket outlets Type 2 2 Max. output current DC 32 A Number of charging units 2 Suitable for wall mounting No Floor mounting Yes · Technical Data Sheet – Click to Download
