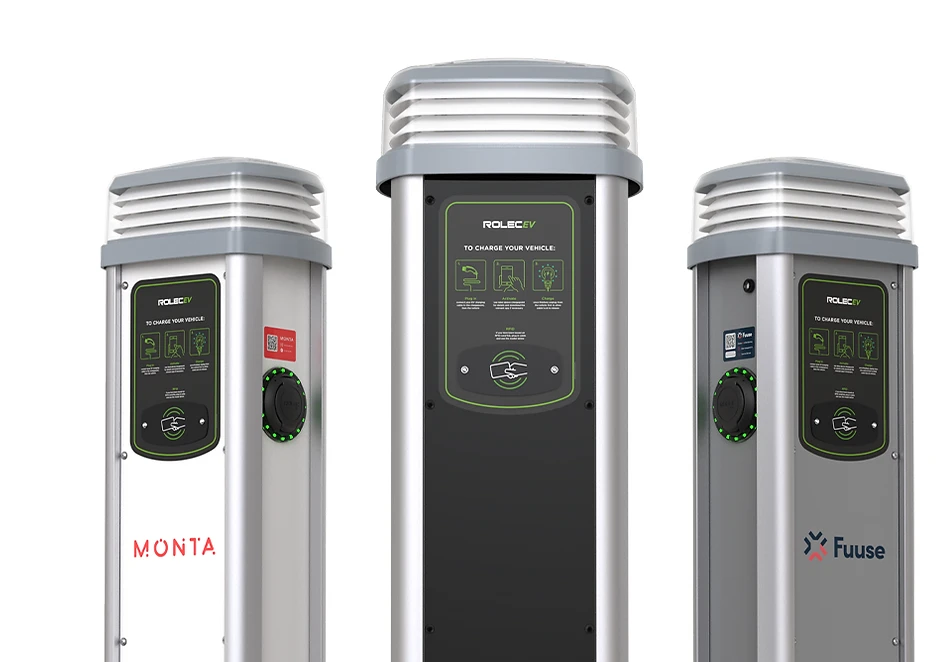

Rolec Quantum EV Charging Pedestal Single Phase Black 2X Type 2 (IEC 62196) Charging Sockets Up To 7.4kW (32A) Per Socket 1 x 63A 230V Ac
£2,632.27 Incl. VAT
The QUANTUM EV charging pedestal is a sophisticated and resilient EV charging point, providing a combination of durability and impeccable design for all locations. This charger’s integrated LED amenity lighting also provides greater visibility of the charging bays and surrounding areas.This future-proof OCPP compliant pedestal can offer a simple plug & charge or pay-to-charge solution via the EV driver’s smartphone and/or RFID card/fob through any chosen OCPP back-office management system. · · · Plug & charge, mobile app or RFID controlled charging · · TruePEN PME fault detection (no earth rod required) · · Cable lock feature (can be permanently locked by user) · · Integrated RFID reader(s)
37 in stock
Description
Technical Specifications Technical Specifications Charging device for electric vehicles Installation side connection model Single phase Impact resistance (IK rating) IK10 Mounting method Floor fastening Degree of protection (IP rating) IP54 Voltage type of supply voltage AC Frequency 50/60 Hz Open Charge Point Protocol (OCPP) version 1.6 Housing material Aluminium Width 375 mm Height 1440 mm Max. power per charging point 7.4 kW Radio standard 4G Yes Floor mounting Yes Suitable for wall mounting No Depth 275 mm Number of socket outlets Type 2 2 Number of charging units 2 Max. output current DC 32 A Networkable via Wi-Fi Yes Networkable via LAN Yes · Technical Data Sheet – Click to Download
