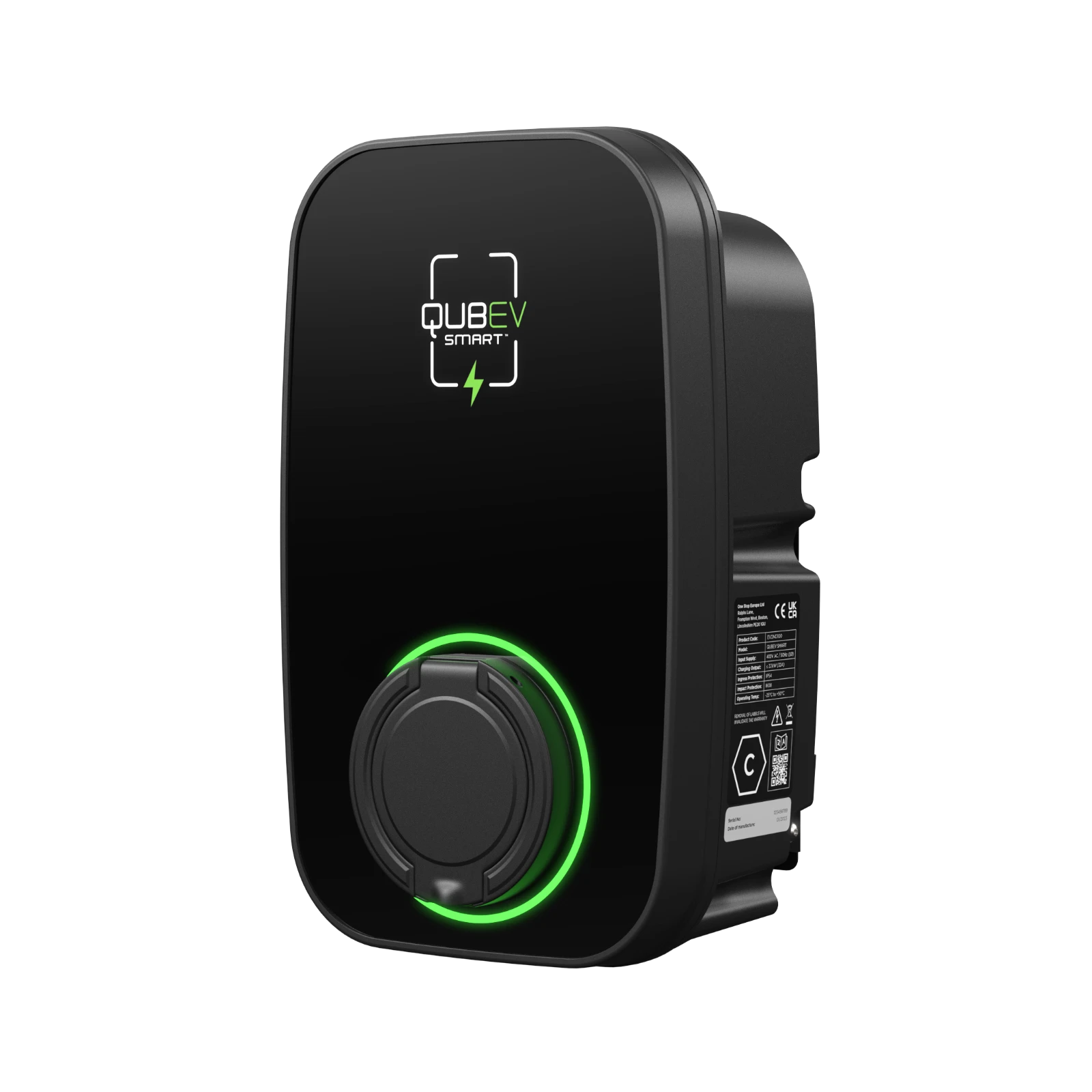

Rolec Qubev Smart 32A 22kW Type 2 Socket EV Charger
Rolec Qubev Smart 32A 22kW Type 2 Socket EV Charger
Rolec Qubev Smart 32A 22kW Type 2 Socket EV Charger - Image 2

Rolec Qubev Smart 32A 22kW Type 2 Socket EV Charger

£917.70 Incl. VAT

22KW TYPE 2 SOCKET WITH WIFI/LAN COMMUNICATIONS USING BLUETOOTH FOR INSTALLER CONFIGURATION.OCPP 1.6J COMPLIANT. SOLAR COMPATIBLE · · · Power rating – Up to 7.4kW or 22kW models · · Adjustable power rating – 10A, 13A, 16A & 32A · · Free QUBEV Smart Wi-Fi app · · Solar compatible (single phase models only) · · PEN fault and residual current protection (AC 30mA Type A, DC 6mA) · · Dynamic load balancing (CT clamp(s) & cable(s) included) · · OCPP 1.6 compliant · · Wi-Fi / Ethernet connectivity · · CE and UKCA certified · · Wall or post mounting options

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EVON0100 Categories: , , , , Brand: Product Code: 2501587151

Description

Technical Specifications  Technical Specifications Charging device for electric vehicles Impact resistance (IK rating) IK08 Frequency 50/60 Hz Open Charge Point Protocol (OCPP) version 1.6 Installation side connection model 3-phase Degree of protection (IP rating) IP54 Voltage type of supply voltage AC Max. power per charging point 22 kW Width 200 mm Depth 132 mm Number of charging units 1 Height 330 mm Number of vehicle connectors Type 2 1 Max. output current DC 32 A · Technical Data Sheet – Click to Download
