Rolec Qubev Smart 32A 7.4kW Type 2 5m Tethered EV Charger
Rolec Qubev Smart 32A 7.4kW Type 2 5m Tethered EV Charger

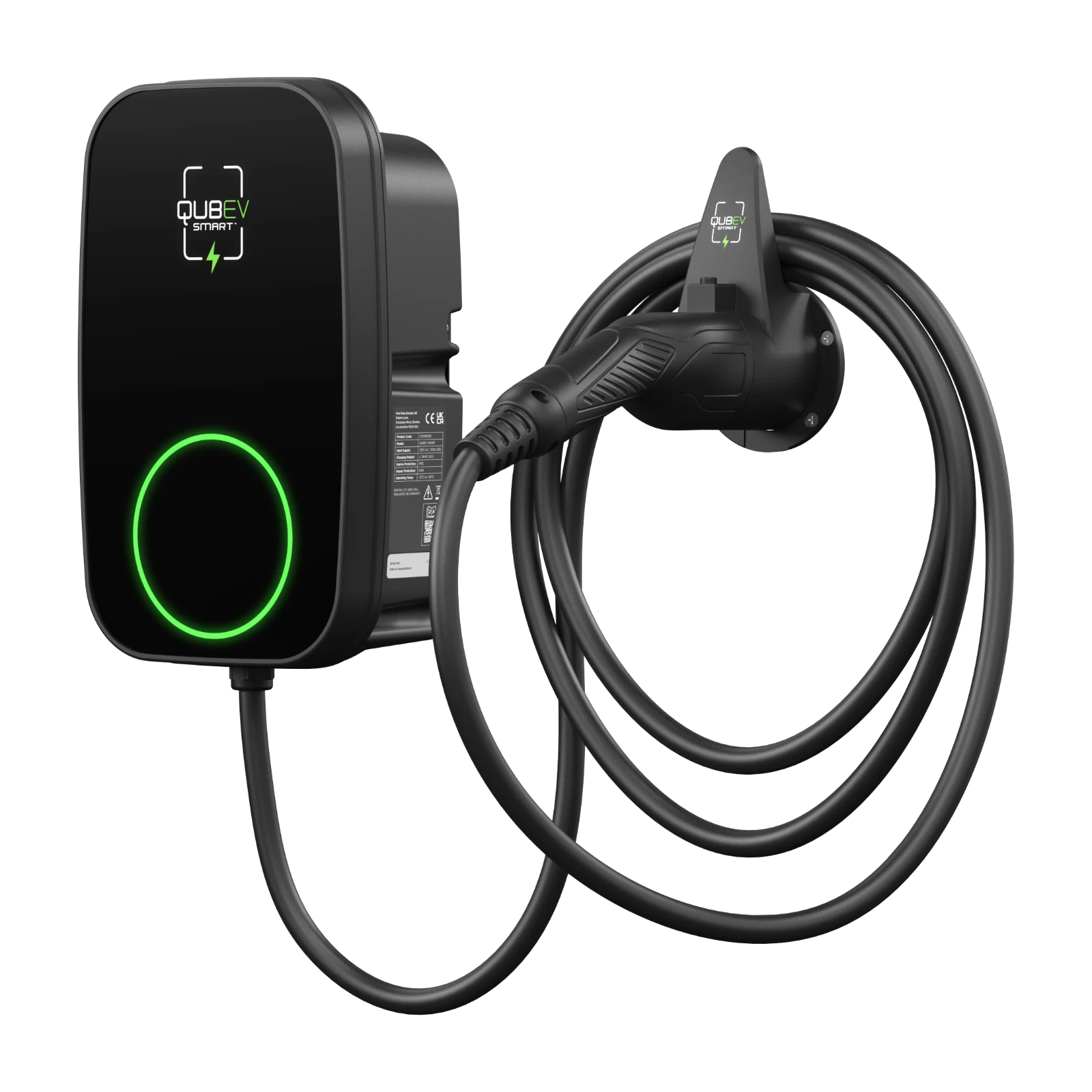

Rolec Qubev Smart 32A 7.4kW Type 2 5m Tethered EV Charger - Image 2

Rolec Qubev Smart 32A 7.4kW Type 2 5m Tethered EV Charger

£629.28 Incl. VAT

7.4KW TYPE 2 TETHERED (5M) WITH WIFI/LAN COMMUNICATIONS USING BLUETOOTH FOR INSTALLER CONFIGURATION.OCPP 1.6J COMPLIANT. SOLAR COMPATIBLE · · · Power rating – Up to 7.4kW or 22kW models · · Adjustable power rating – 10A, 13A, 16A & 32A · · Free QUBEV Smart Wi-Fi app · · Solar compatible (single phase models only) · · PEN fault and residual current protection (AC 30mA Type A, DC 6mA) · · Dynamic load balancing (CT clamp(s) & cable(s) included) · · OCPP 1.6 compliant · · Wi-Fi / Ethernet connectivity · · CE and UKCA certified · · Wall or post mounting options

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EVON0095 Categories: , Brand: Part Number: 2501587150

Description

Technical Specifications  Technical Specifications Charging device for electric vehicles Installation side connection model Single phase Impact resistance (IK rating) IK08 Mounting method Wall mounted Frequency 50/60 Hz Degree of protection (IP rating) IP54 Voltage type of supply voltage AC Width 200 mm Open Charge Point Protocol (OCPP) version 1.6 Number of vehicle connectors Type 2 1 Suitable for wall mounting Yes Number of charging units 1 Max. output current DC 32 A Length of charging cable 5 m Max. power per charging point 7.4 kW Height 330 mm Depth 107 mm Networkable via Wi-Fi Yes Radio standard 4G No Networkable via LAN Yes Floor mounting No · Technical Data Sheet – Click to Download
