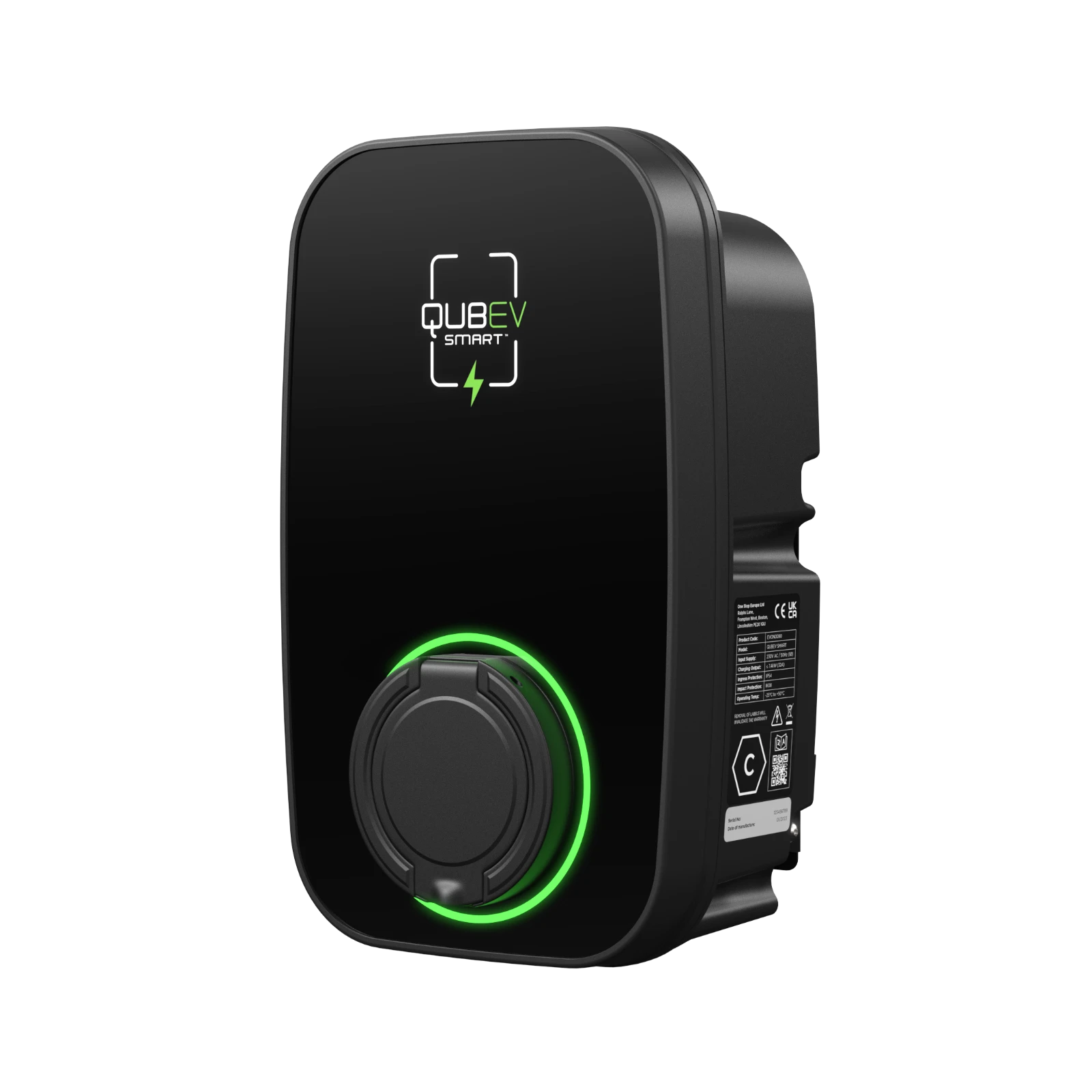

Rolec Qubev Smart EV Charger 32A 7.4kW Type 2 Socket
£495.00 Incl. VAT
7.4kW EV Charger Type 2 Socket With WIFI/LAN Communications Using Bluetooth For Installer Configuration. OCPP 1.6J compliant. Solar Compatible · · · Power rating – Up to 7.4kW or 22kW models · · Adjustable power rating – 10A, 13A, 16A & 32A · · Free QUBEV Smart Wi-Fi app · · Solar compatible (single phase models only) · · PEN fault and residual current protection (AC 30mA Type A, DC 6mA) · · Dynamic load balancing (CT clamp(s) & cable(s) included) · · OCPP 1.6 compliant · · Wi-Fi / Ethernet connectivity · · CE and UKCA certified · · Wall or post mounting options
Description
Technical Specifications Technical Specifications Charging device for electric vehicles Impact resistance (IK rating) IK08 Installation side connection model Single phase Frequency 50/60 Hz Open Charge Point Protocol (OCPP) version 1.6 Voltage type of supply voltage AC Degree of protection (IP rating) IP54 Max. output current DC 32 A Height 330 mm Max. power per charging point 7.4 kW Number of charging units 1 Number of vehicle connectors Type 2 1 Width 200 mm Depth 109 mm Floor mounting No Radio standard 4G No Networkable via LAN Yes Networkable via Wi-Fi Yes Suitable for wall mounting Yes · Technical Data Sheet – Click to Download
