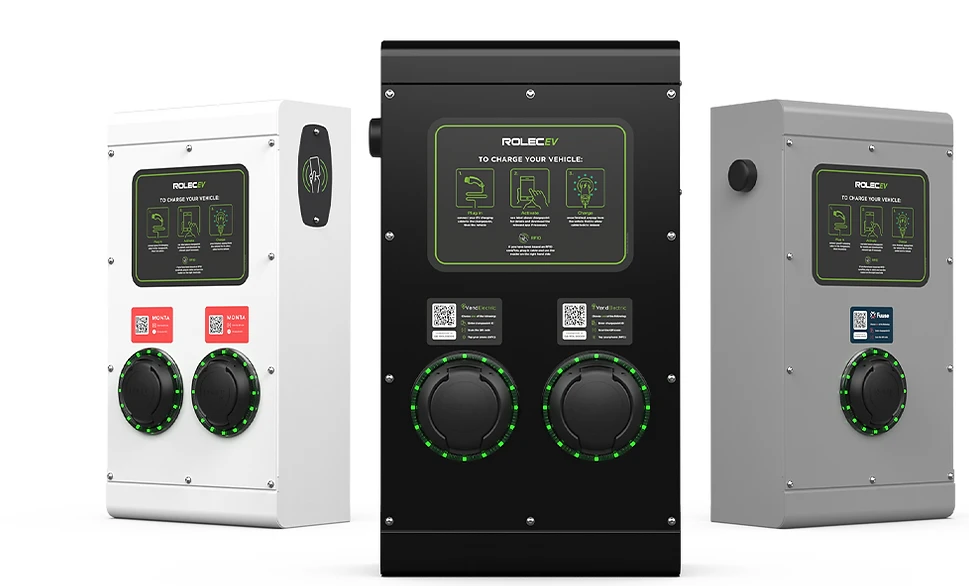

Rolec Securicharge EV Charger 3 Phase Black 2 x Type 2 (IEC 62196) Charging Sockets Up To 22kW (32A) Per Socket 1 x 63A 400V AC
Rolec Securicharge EV Charger 3 Phase Black 2 x Type 2 (IEC 62196) Charging Sockets Up To 22kW (32A) Per Socket 1 x 63A 400V AC
Rolec Securicharge EV Charger 3 Phase Black 2 x Type 2 (IEC 62196) Charging Sockets Up To 22kW (32A) Per Socket 1 x 63A 400V AC - Image 2

Rolec Securicharge EV Charger 3 Phase Black 2 x Type 2 (IEC 62196) Charging Sockets Up To 22kW (32A) Per Socket 1 x 63A 400V AC

£2,738.39 Incl. VAT

The SECURICHARGE is the perfect wall-mounted EV chargepoint for workplaces and car parks with its heavy-duty and vandal-resistant features, making it the ideal solution for exposed locations.This future-proof OCPP compliant unit can offer a simple plug & charge or pay-to-charge solution via the EV driver’s smartphone and/or RFID card/fob through any chosen OCPP back-office management system. · · · Plug & charge, mobile app or RFID controlled charging · · Up to 7.4kW or 22kW charging output(s) · · Supports dynamic load balancing & static load management · · Built-in AC overload & fault current protection (RCBO)

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ROLEC0123B Categories: , Brand: Part Number: 2501516864

Description

Technical Specifications  Technical Specifications Charging device for electric vehicles Impact resistance (IK rating) IK10 Mounting method Wall mounted Housing material Steel Installation side connection model 3-phase Frequency 50/60 Hz Degree of protection (IP rating) IP54 Voltage type of supply voltage AC Height 575 mm Number of charging units 2 Number of vehicle connectors Type 2 2 Depth 155 mm Width 320 mm Open Charge Point Protocol (OCPP) version 1.6 Max. output current DC 32 A Max. power per charging point 22 kW Suitable for wall mounting Yes Radio standard 4G Yes Networkable via Wi-Fi Yes Networkable via LAN Yes · Technical Data Sheet – Click to Download
