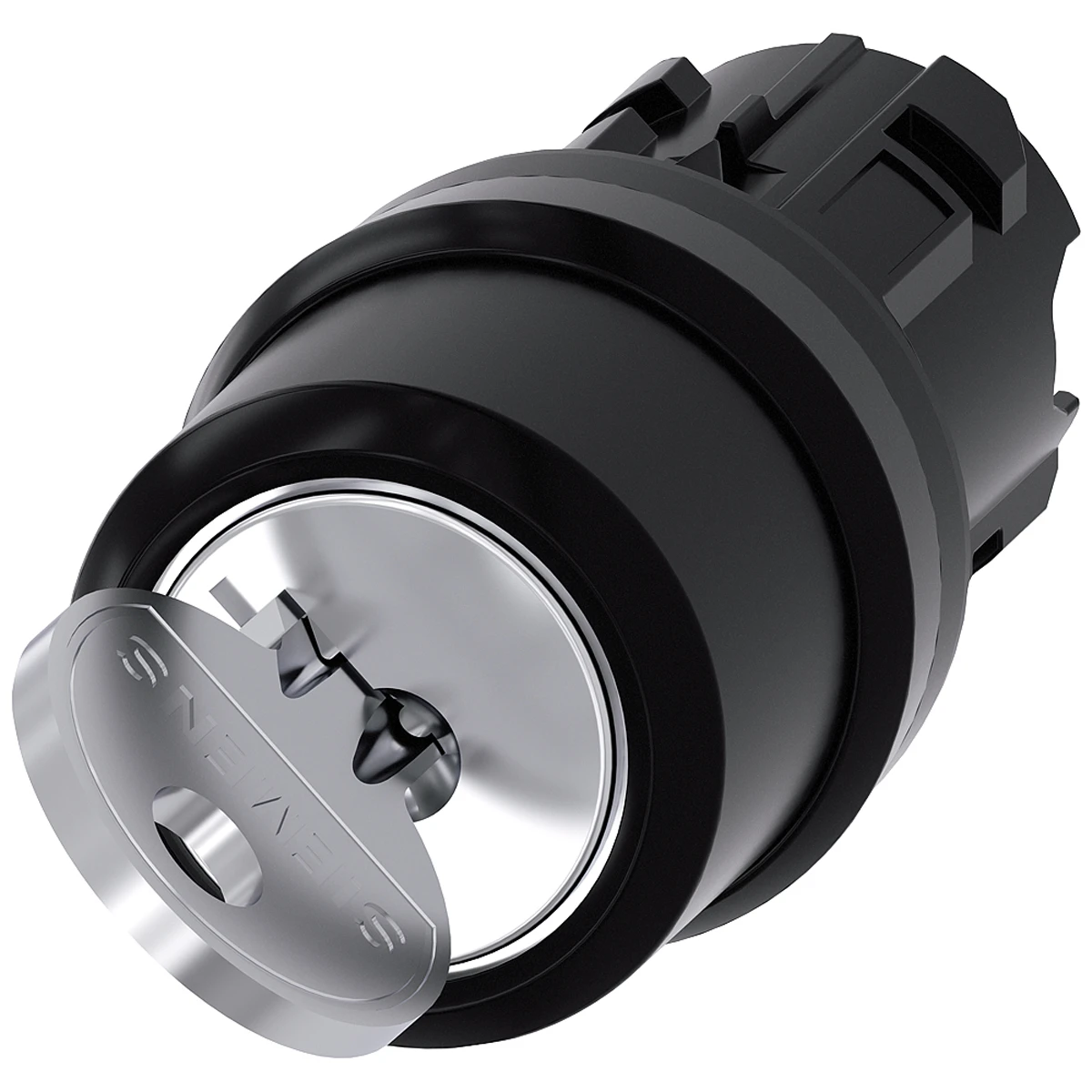

Ronis Key Operated Switch 22mm Round
£28.50 Incl. VAT
Siemens standard round RONIS key-operated selector switch made up of a silver coloured metal actuator surrounded by a black plastic ring. The mounting diameter is 22.3mm whereas the actuating element has a 29.5mm diameter. · · · Manner of function: Momentary (return from centre to left) · · Actuating angle: 45° · · Number of switching positions: 2 · · Switch position for key distraction: O · · Mechanical sevice life: 1000000 cycles · · Maximum operating frequency: 1800 1/h · · IP66/67/69 Degree of protection (IP20 terminal) · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C
Out of stock
Description
Technical Specifications Technical Specifications Front element for selector switch Material front ring Plastic Construction type lens Rectangular Colour front ring Black Type of control element Key Colour control element Silver Width opening 29.5 mm Number of switch positions 2 Hole diameter 22.3 mm Height opening 49.4 mm Switching function latching No Spring-return No Suitable for illumination No With front ring Yes · Technical Data Sheet – Click to Download
