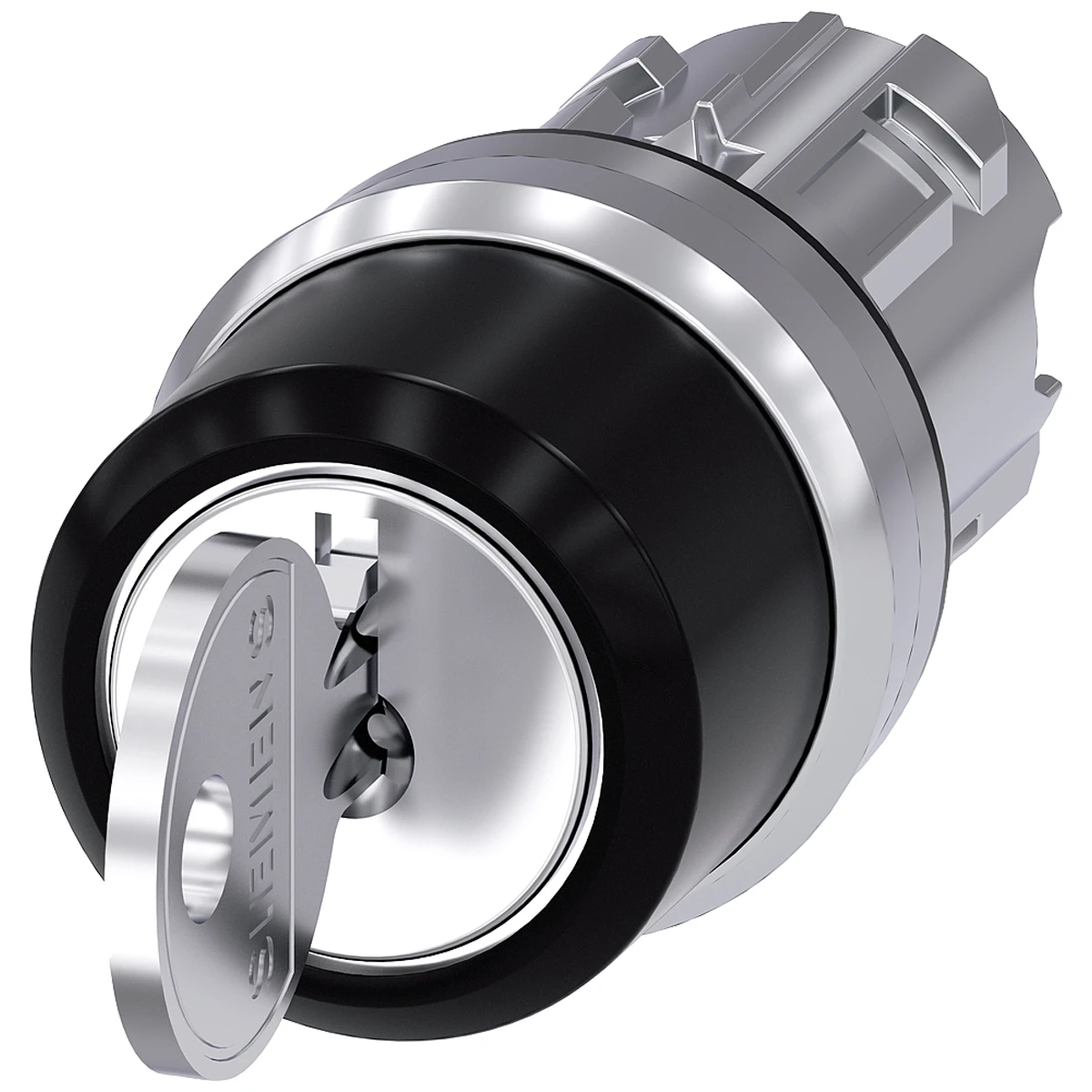

Siemens Ronis Key Operated Switch 22mm Round
Siemens Ronis Key Operated Switch 22mm Round
Siemens Ronis Key Operated Switch 22mm Round - Image 2
Siemens Ronis Key Operated Switch 22mm Round - Image 3

Siemens Ronis Key Operated Switch 22mm Round

£35.16 Incl. VAT

Siemens standard round RONIS key-operated selector switch made up of a silver coloured metal actuator surrounded by a high gloss silver colour metal ring. The mounting diameter is 22.3mm whereas the actuating element has a 29.5mm diameter. · · · Manner of function: Latching · · Actuating angle: 2 x 45° · · Number of switching positions: 3 · · Switch position for key distraction: O+I+II · · Mechanical sevice life: 300000 cycles · · Maximum operating frequency: 1800 1/h · · IP20/66/67/69 Degree of protection · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3SU1050-4BL11-0AA0 Categories: , , , , Brand: Product Code: 1051118356

Description

Technical Specifications  Technical Specifications Front element for selector switch Type of control element Key Construction type lens Rectangular Material front ring Metal Colour control element Silver Hole diameter 22.3 mm Height opening 49.4 mm Number of switch positions 3 Width opening 29.5 mm With front ring Yes Suitable for illumination No Spring-return No Switching function latching No · Technical Data Sheet – Click to Download
