Rugged 865-868MHz Android 10 Handheld Mc3330xr Uhf Rfid Reader Long Range with NFC Function

Description

Product description

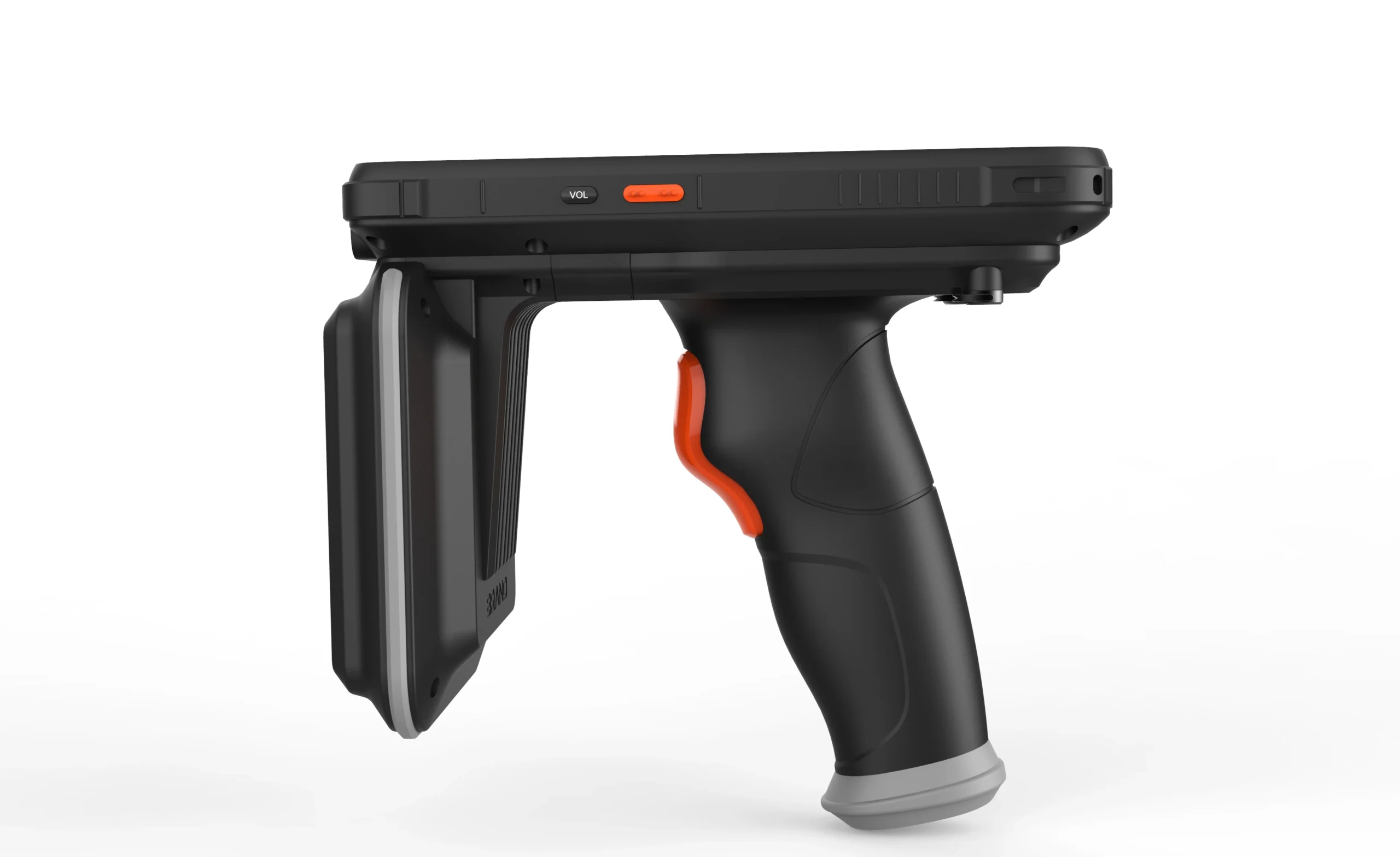

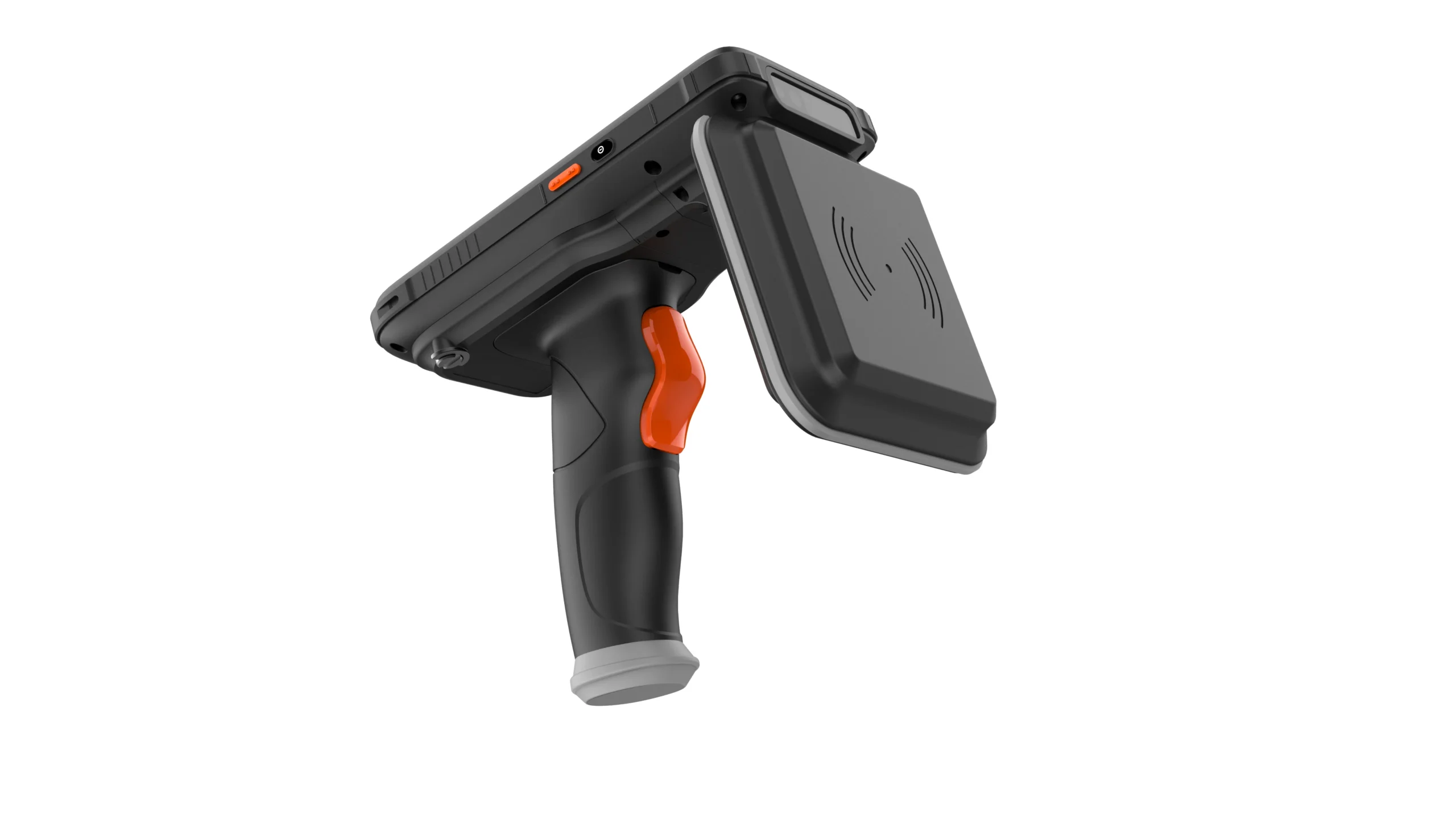

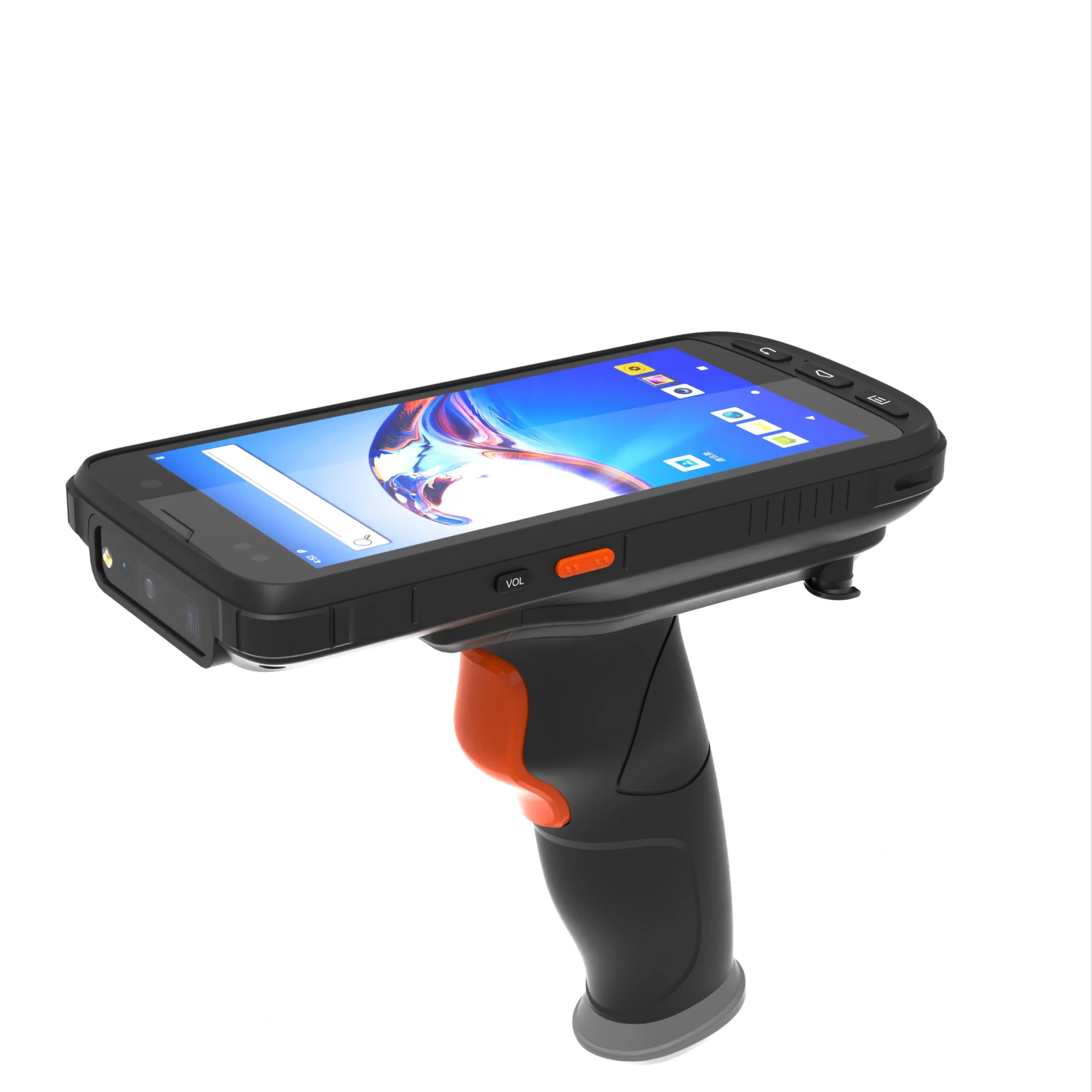

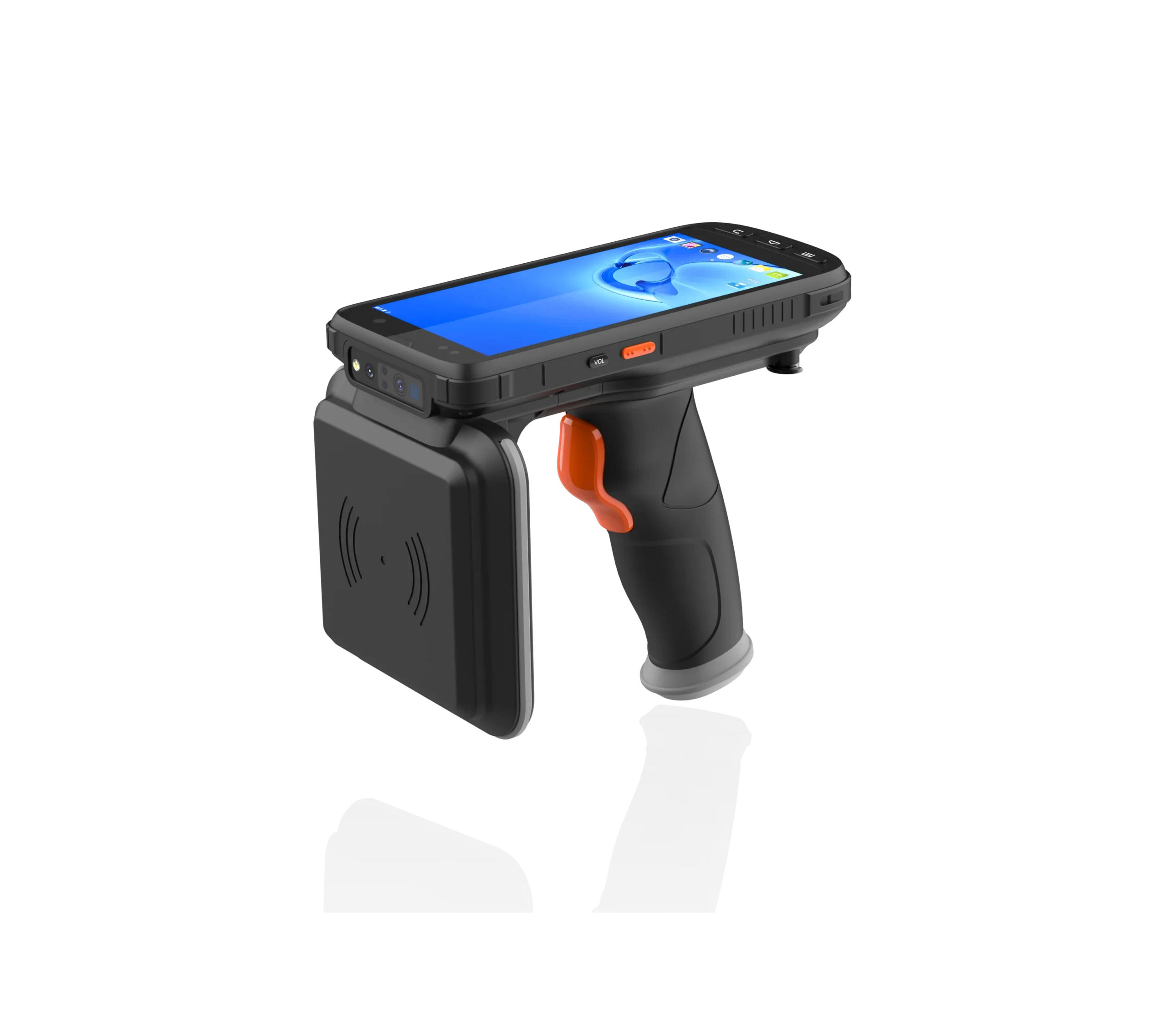

Product Overview Rugged IP65 Handheld UHF RFID Reader Industrial&humanized keypad design and tough 5.5 inch Gorilla Glass 3 touch screen together with high resolution of 720*1440 display shall match high standards in logistics, express and retail industries. FEATURES AT A GLANCE Industrial and Humanized Hardware Design Octa-Core Processor&Large Memory Superior Data Communication and Security Guarantee Rugged Ergonomic and Over-molding Design Extremely Long Distance UHF ReaderHighly Customized Structure Perfect Service Right elevation Left elevation Front elevation PRODUCT SPECIFICATIONS No PHYSICAL CHARACTERISTICS 1 Dimension 166mm(H)x79mm(W)x31mm(D)±2 mm 2 Weight Net Weight :600g 3 Display Gorilla Glass 3 9H 5.5 in. TFT-LCD(720×1440)touch screen with backlight 4 Backlight LED backlight 5 Expansions 1 PSAM, 1 SIM, 1 TF 6 Battery Rechargeable li-ion polymer, 3.8V, 9000mAh 7 PERFORMANCE CHARACTERSTICS 8 CPU Cortex A73 2.0GHz octa-core 9 Operating System Android 10.0 10 Storage 2GB RAM/16GB ROM or 4GB RAM/64GB ROM, MicroSD(max 256GB expansion) 11 USER ENVIRONMENT 12 Operating Temp. -20℃ to 50℃ 13 Storage Temp. 20℃ to 70℃ 14 Humidity 5%RH to 95%RH(non-condensing) 15 Drop Specifications 5ft./1.5 m drop to concrete across the operating temperature range 16 Sealing IP65, IEC compliance 17 ESD ±15kv air discharge, ±8kv direct discharge 18 DEVELOPMENT ENVIRONMENT 19 SDK Software Development Kit 20 Language java 21 Environment Android Studio or Eclipse 22 DATA COMMUNICATION 23 WWAN TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz); 24 WLAN 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac 25 WPAN Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2 26 GPS GPS(embedded A-GPS), accuracy of 5 m 27 DATA CAPTUER 28 BARCODE READER(OPTIONAL) 29 2D barcode 2D CMOS Imager Zebra SE4710/Mindeo ME5600 30 Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. 31 COLOR CAMERA 32 Resolution Rear 13 megapixel, front 5.0 megapixel 33 Lens Auto-focus with LED flash 34 RFID READER(OPTIONAL) 35 RFID NFC Frequency 13.56MHz 36 Protocol ISO 14443A&15693, NFC-IP1, NFC-IP2 37 R/W Range 2cm to 5cm 38 RFID UHF Frequency 865~868MHz or 920~925MHz 39 Protocol EPC C1 GEN2/ISO 18000-6C 40 R/W Range 20 m(tags and environment dependent) 41 Antenna Gain Circular antenna(4dBi) 42 ACCESSORIES 43 Standard 1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable 44 Optional Cradle SALES AND SERVICE NETWORK
