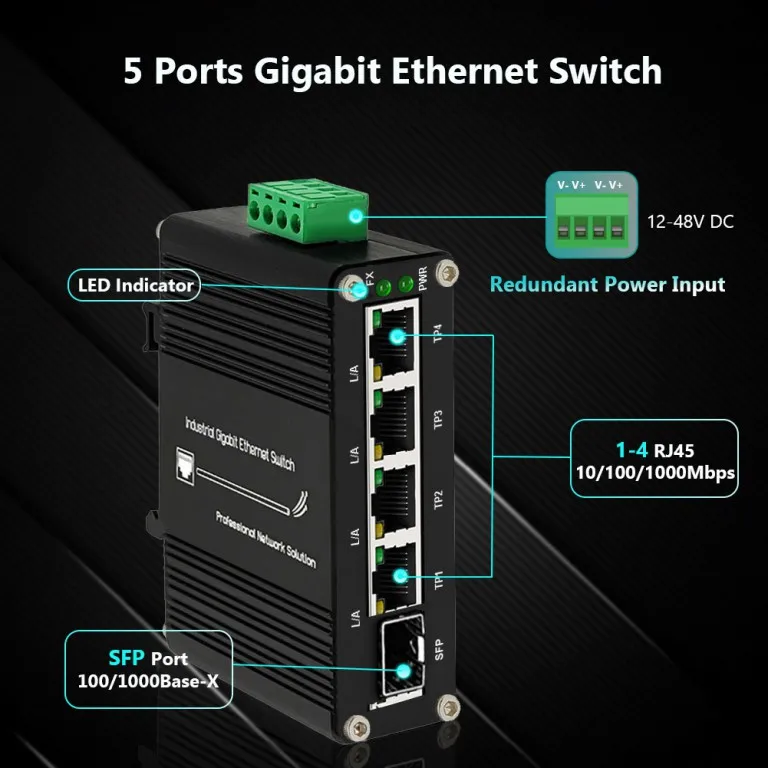

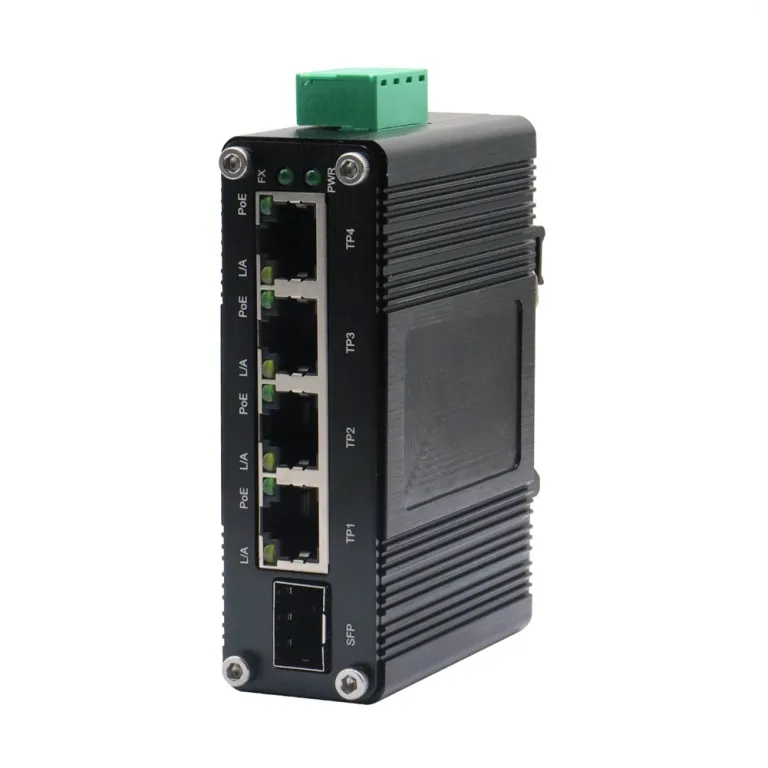

Rugged Industrial Ethernet Switch PoE 4x Gigabit RJ45 1x SFP DIN-Rail Wall-Mount 12-48VDC Voltage Booster CE FC

Description

Product description

Products Description Industrial Solar PoE Switch WXA-I04G-1SFP-P120: 4GE+1SFP, vibration-resistant, CE/FCC certified. Specification Ethernet Standards IEEE 802.3/802.3u/802.3ab/802.3x/802.3az/802.3af/at (PoE+ PSE) Forward Rate/Switch Property 14,880/148,800/1,488,000 pps (10/100/1000Mbps); Switch Fabric:10Gbps non-blocking, Backplane:20Gbps, Forwarding rate:14.88Mpps Packet Buffer/Len/MAC Table 1Mbits; 10Kbytes; 8K entries Interface Connector/Optical Port 4x RJ45 (Ports1-4: 802.3at PoE+ injector); 1x SFP (1000Base-X/100Base-FX auto-detect) Power over Ethernet (PoE) Standard/Pin/Budget IEEE 802.3af/at; 4/5(+),7/8(-); 48V:120W /24V:90W /12V:60W Environmental Operating/Storage Temp -40°C~80°C (-40°F~176°F); -40°C~85°C (-40°F~185°F) Humidity/MTBF 5%~95% non-condensing; >200,000 hrs Electrical & Mechanical Input Power/Consumption/Protection 12~48VDC (4-Pin Terminal Block); <125W (Non-PoE<6W); Overload:Auto Resettable, Reverse Polarity:Present Dimensions/Weight/Mounting 95×70×29mm; 0.25Kg; Aluminum Case (DIN-Rail/Wall-mount) LED Indicators PWR(Power), L/A(Link/Activity), PoE(Status) Regulatory Approvals Certifications/EMI/EMS ISO9001; EN55022:2010+AC:2011 Class A, EN61000-3-2/3:2006+A1+A2/2013, EN55032:2017; IEC 61000-4-2/3/4/5/6/8 Application Scenarios Product packaging Certifications
