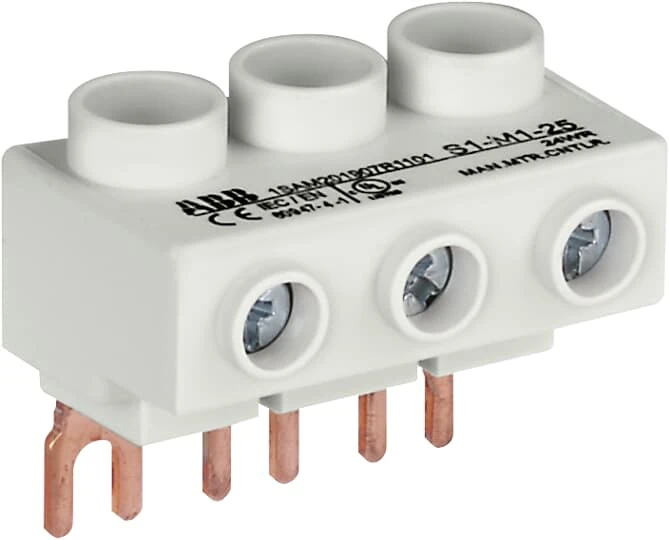

S1-M1-25 Power Infeed Block

Description

Technical Specifications  Technical Specifications Main line branch terminal Depth 25.5 mm Height 38 mm Width 44 mm Nominal current 65 A Number of poles 3 Number of outputs 3 Number of connections < 6 mm² 1.00 Number of connections 10 mm² 1.00 Number of connections 25 mm² 1.00 Number of connections 16 mm² 1.00 Number of inputs 3 Contact safe Yes Conductor cross section, output AWG - - - Conductor cross section, input AWG 14 - 4 Conductor cross section, output 2.5 - 25 mm² Conductor cross section, input 2.5 - 25 mm² Number of connections total 1.00 Number of connections > 25 mm² 0.00 Useful for stranded conductors Yes Suitable for extra fine-strand conductors without cable end sleeve Yes Suitable for solid cores Yes Suitable for fine strand conductors Yes Suitable for fine strand conductors without cable end sleeve Yes Suitable for extra fine-strand conductors Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
