Safety Limit Switch Telemecanique Safety Switches Xcs Metal Rotary Lever 2Nc+1 No 1 Entry Tapped M20 X 1.5

£52.19 Incl. VAT

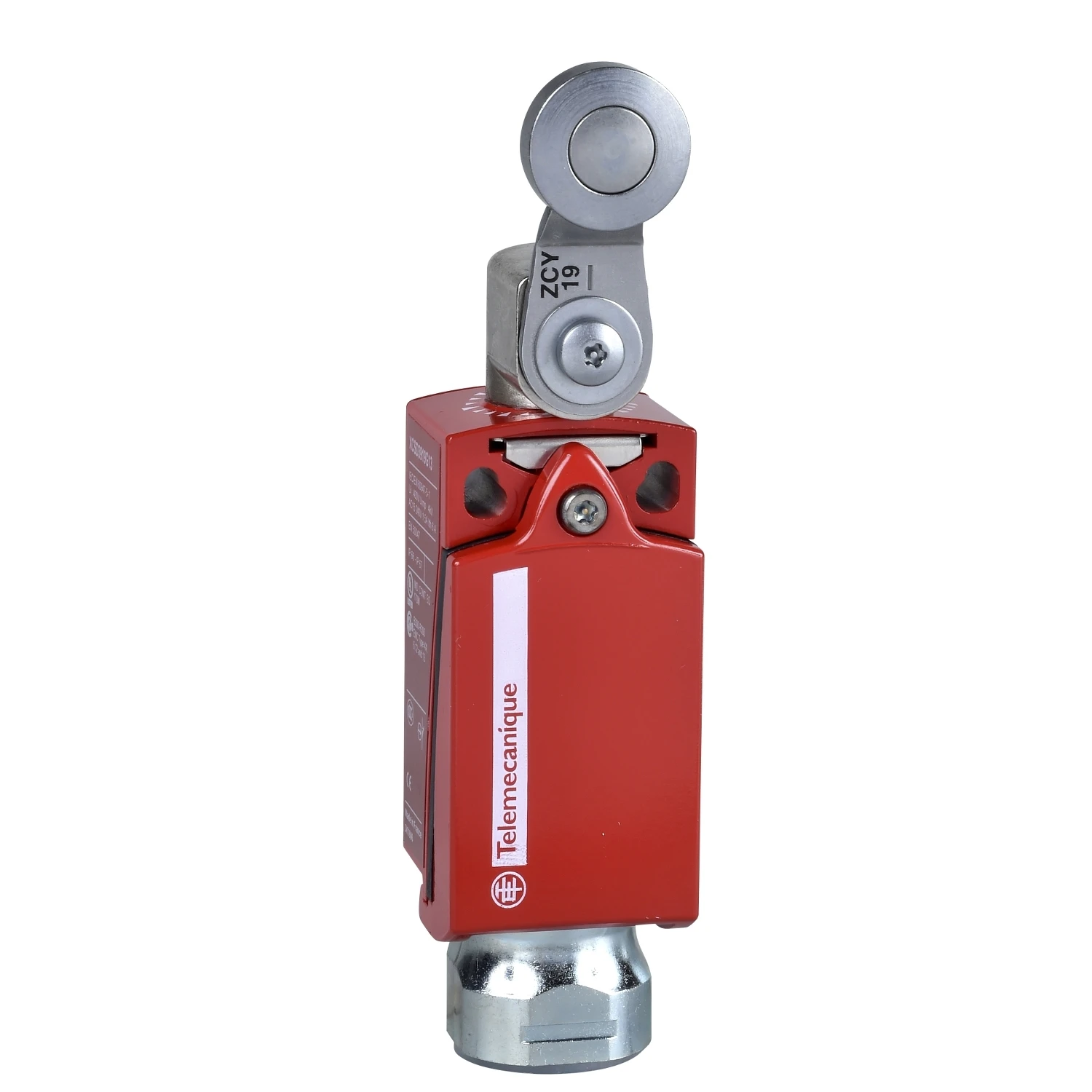

This XCSD Compact Safety Limit Switch has a steel roller lever, a Zamak body and head and a M20 cable gland entry. It has 1 normally open and 2 normally closed snap action contacts. Its B10D reliability data is 50 000 000. It has IK06 impact resistance and IP66 / IP67 degree of protection, makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508. · · · Head type Rotary head · · Positive opening With NC contact · · [Ithe] conventional enclosed thermal current 6 A · · Enclosure material Plastic

1 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCSD3919P20 Categories: , , Brand: Part Number: 2500256940

Description

Technical Specifications  Technical Specifications End switch Explosion safety category for dust None Type of interface for safety communication None Explosion safety category for gas None Interface type None Construction type housing Cuboid Housing material Metal Degree of protection (IP rating) IP67K Rated operation current Ie at AC-15, 125 V – A Number of safety auxiliary contacts 0 Rated operation current Ie at DC-13, 230 V 0.1 A Rated operation current Ie at AC-15, 230 V 1.5 A Type of control element Roller lever Type of electric connection Cable entry metrical Switching function Quick-break switch Width sensor 34 mm Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at DC-13, 125 V – A Rated operation current Ie at AC-15, 24 V – A Length of sensor 35 mm Height of sensor 122 mm Diameter sensor – mm Number of contacts as normally closed contact 2 Number of contacts as normally open contact 1 Number of contacts as change-over contact 0 Ambient temperature during operating -25 – 70 °C Suitable for safety functions Yes With status indication No Switching function latching No Forced opening No Output electronic No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188167
