£45.66 Incl. VAT

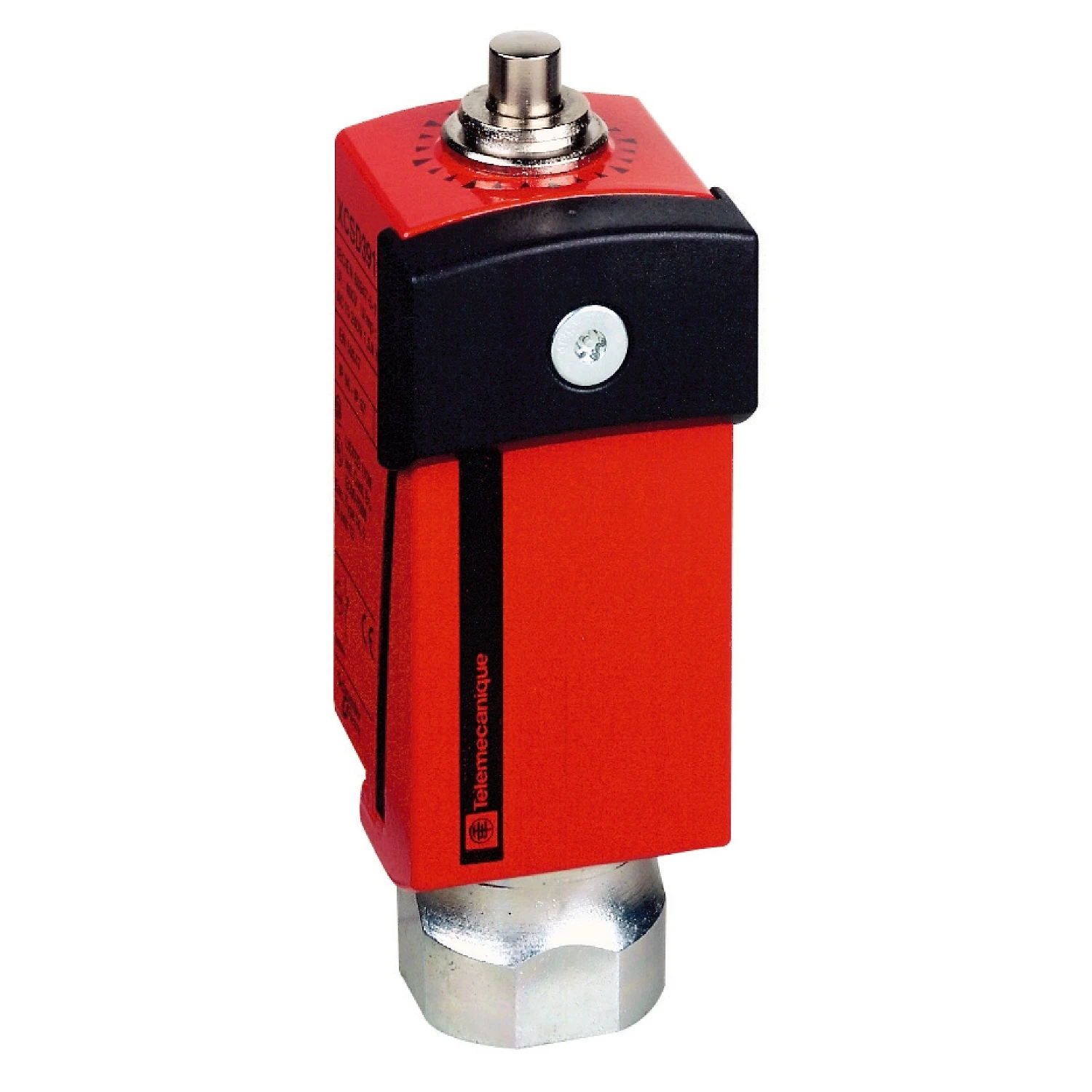

This XCSD Compact Safety Limit Switch has a metal end plunger, a Zamak body and head and a M20 cable gland entry. It has 1 normally open and 2 normally closed snap action contacts. Its B10D reliability data is 50 000 000. It has IK06 impact resistance and IP66 / IP67 degree of protection, makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508. · · · Head type Plunger head · · Protection technology Plastic protective cover, secured by 5-lobe socket head safety screw · · Type of operator Metal end plunger · · Cable entry 1 entry tapped for M20 x 1.5

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCSD3910P20 Categories: , , Brand: Part Number: 2500256938

Description

Technical Specifications  Technical Specifications End switch Explosion safety category for dust None Interface type None Explosion safety category for gas None Type of interface for safety communication None Construction type housing Cuboid Type of control element Plunger Housing material Metal Switching function Quick-break switch Type of electric connection Cable entry metrical Degree of protection (IP rating) IP67K Width sensor 34 mm Rated operation current Ie at AC-15, 125 V – A Number of contacts as normally closed contact 2 Length of sensor 35 mm Number of safety auxiliary contacts 0 Rated operation current Ie at DC-13, 230 V 0.1 A Rated operation current Ie at AC-15, 230 V 1.5 A Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at DC-13, 125 V – A Rated operation current Ie at AC-15, 24 V – A Diameter sensor – mm Height of sensor 89 mm Number of contacts as change-over contact 0 Number of contacts as normally open contact 1 Ambient temperature during operating -25 – 70 °C Output electronic No Forced opening No With status indication No Switching function latching No Suitable for safety functions Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188167
