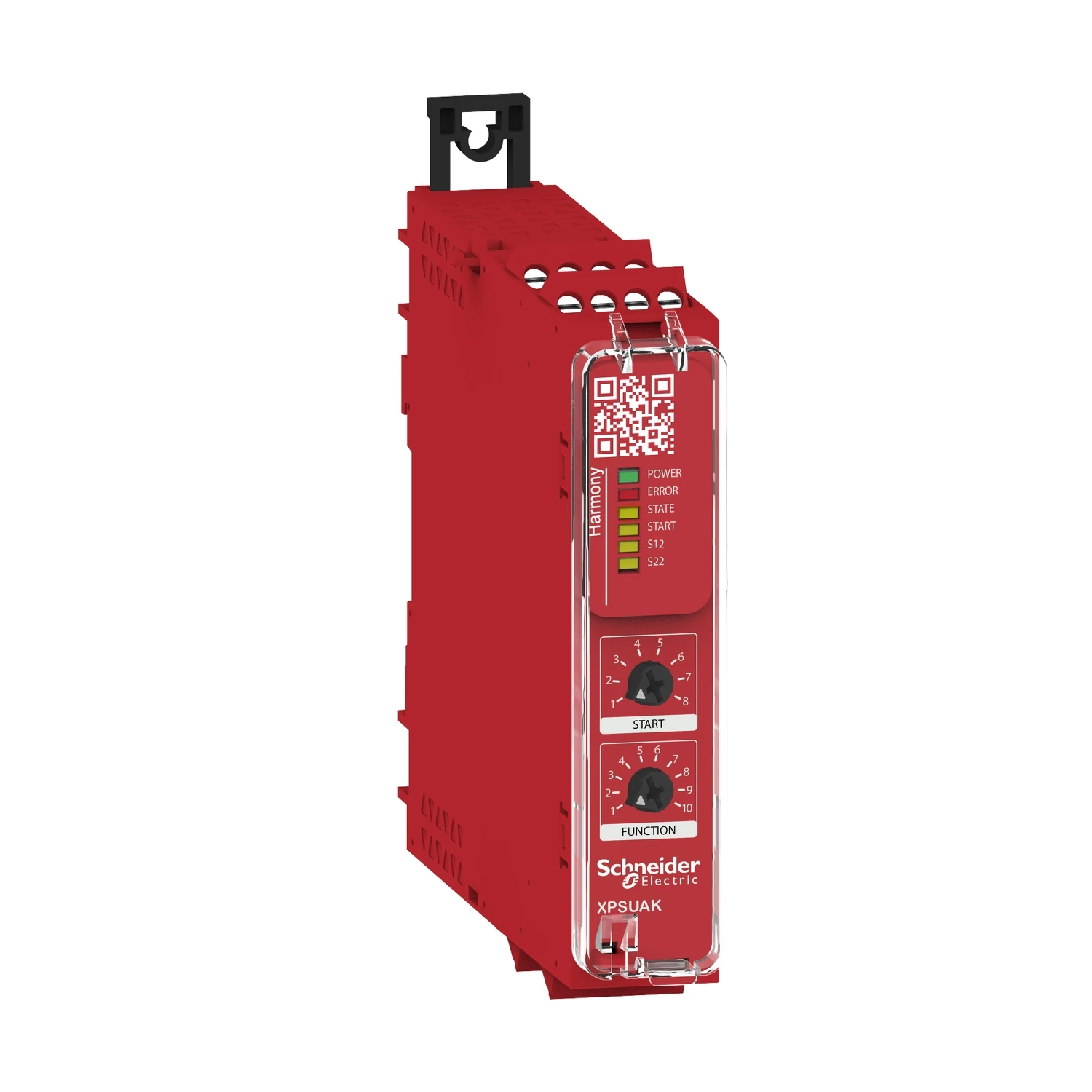

Safety Module UAK Cat.4 48-230V
£279.74 Incl. VAT
Safety module UAK Cat.4 48-230V · · · This product is part of the Preventa XPS Universal safety relays. · · This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP, NPN sensors, RFID safety switch, Safety light curtain or Sensing mat/edges. · · The safety relay is powered with 48-240V AC/DC, and equipped with a screw removable terminal block. · · XPS Universal safety relay can forward more than 40 different messages between the solid state output of the relay and a standard digital input of a PLC, reducing the down time of the machine, precising the root cause of production stop. · · This safety relay embeds 2 safety inputs, 3 ON/OFF configurable pulsed outputs, 2 NO, 1 NC safety outputs, and 1 solid state diagnostic output with complete status information. · · High reliability
Out of stock
Description
Technical Specifications Technical Specifications Device for monitoring of safety-related circuits Depth 120 mm Width 22.5 mm Height 100 mm Number of outputs, safety related, undelayed, with contact 3 Number of outputs, safety related, delayed, with contact 0 Number of outputs, safety related, undelayed, semiconductors 0 Number of outputs, signalling function, delayed, with contact 0 Rated control supply voltage at AC 50 Hz 48 – 240 V Release-delay 0 – 0 s Number of outputs, signalling function, delayed, semiconductors 0 Number of outputs, signalling function, undelayed, semiconductors 0 Number of outputs, signalling function, undelayed, with contact 0 Number of outputs, safety related, delayed, semiconductors 0 With approval according to UL Yes With start input Yes With feedback circuit Yes Rail mounting possible Yes With detachable clamps Yes Rated control supply voltage at DC 48 – 240 V Rated control supply voltage at AC 60 Hz 48 – 240 V With approval for BG BIA No With approval for TÜV Yes With muting function No Suitable for monitoring of magnetic switches Yes Suitable for monitoring of proximity switches Yes Suitable for monitoring of emergency-stop circuits Yes Suitable for monitoring of optoelectronic protection equipment Yes Suitable for monitoring of position switches Yes Suitable for monitoring of tactile sensors No Suitable for monitoring of valves No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192652 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2222746
