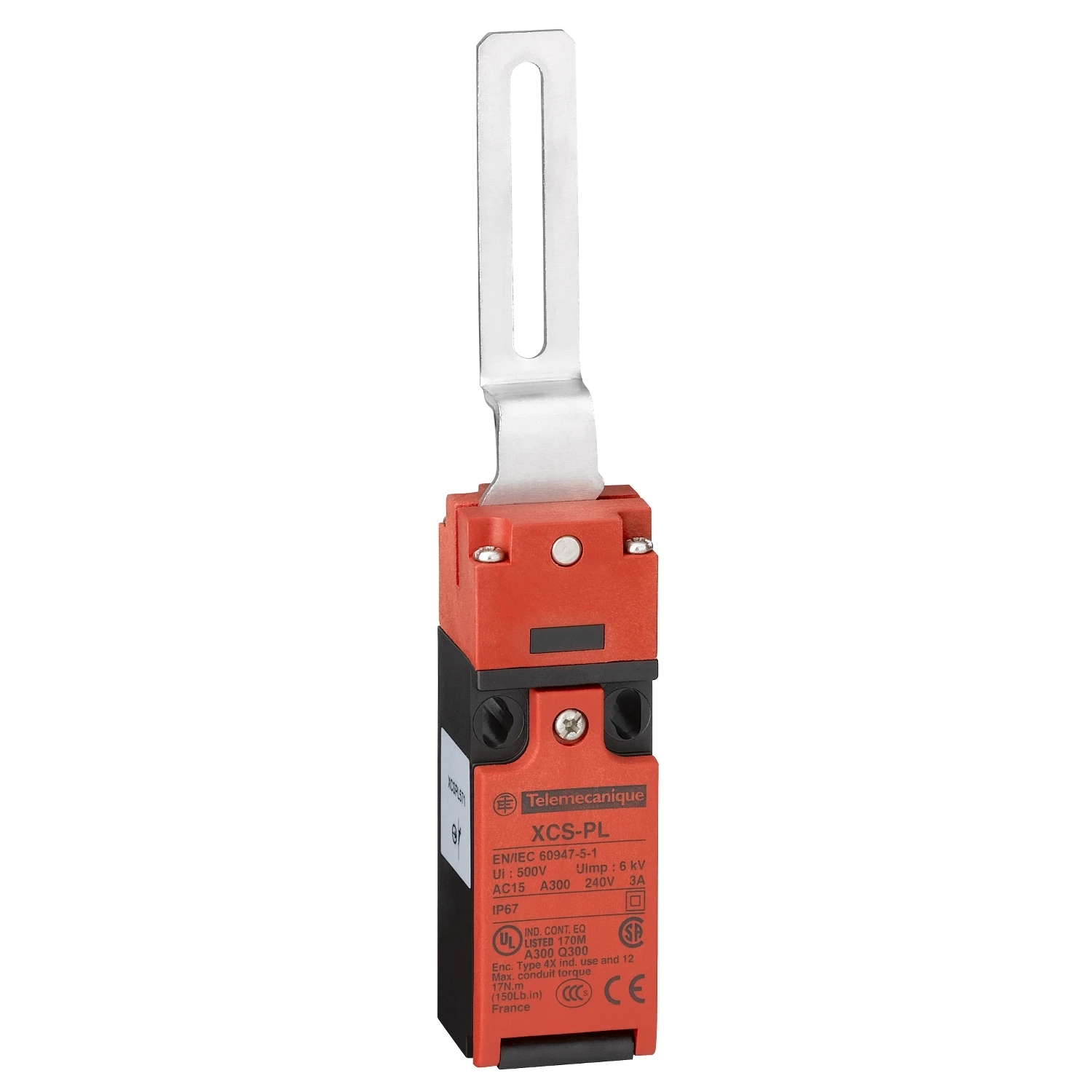

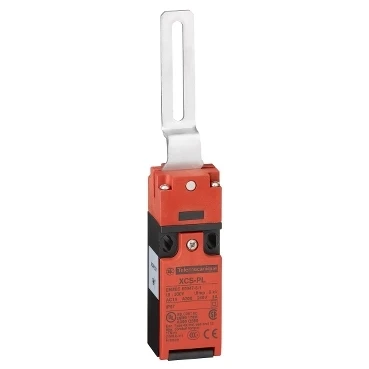

Telemecanique Sensors Safety switch XCSPL, elbowed flush lever, centred, 1NC+1NO -M16
£61.44 Incl. VAT
This XCSPL Safety Limit Switch has a stainless steel turret head rotary elbowed flush lever with an operation contact on the centered position, a double insulated plastic enclosure and a M16 cable gland entry. It has 1 normally open and 1 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508. · · · This XCSPL Safety Limit Switch has a stainless steel turret head rotary elbowed flush lever with an operation contact on the centered position, a double insulated plastic enclosure and a M16 cable gland entry. · · It has 1 normally open and 1 normally closed break-before-make (slow break) contacts.
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications End switch Explosion safety category for dust None Type of interface for safety communication None Explosion safety category for gas None Interface type None Housing material Plastic Type of control element Rotary lever Construction type housing Cuboid Switching function Slow-action switch and quick-break switch Degree of protection (IP rating) IP67K Type of electric connection Cable entry metrical Rated operation current Ie at AC-15, 230 V 3 A Rated operation current Ie at DC-13, 230 V 0.27 A Rated operation current Ie at AC-15, 24 V – A Number of contacts as change-over contact 0 Number of contacts as normally closed contact 1 Diameter sensor – mm Height of sensor 161 mm Width sensor 30 mm Length of sensor 30 mm Rated operation current Ie at AC-15, 125 V 6 A Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at DC-13, 125 V 0.55 A Number of safety auxiliary contacts 1 Number of contacts as normally open contact 1 Ambient temperature during operating -25 – 70 °C Suitable for safety functions Yes Switching function latching No Output electronic No Forced opening Yes With status indication No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188129
