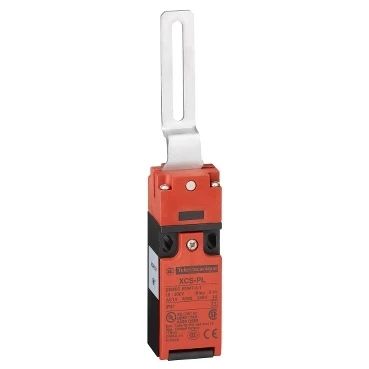

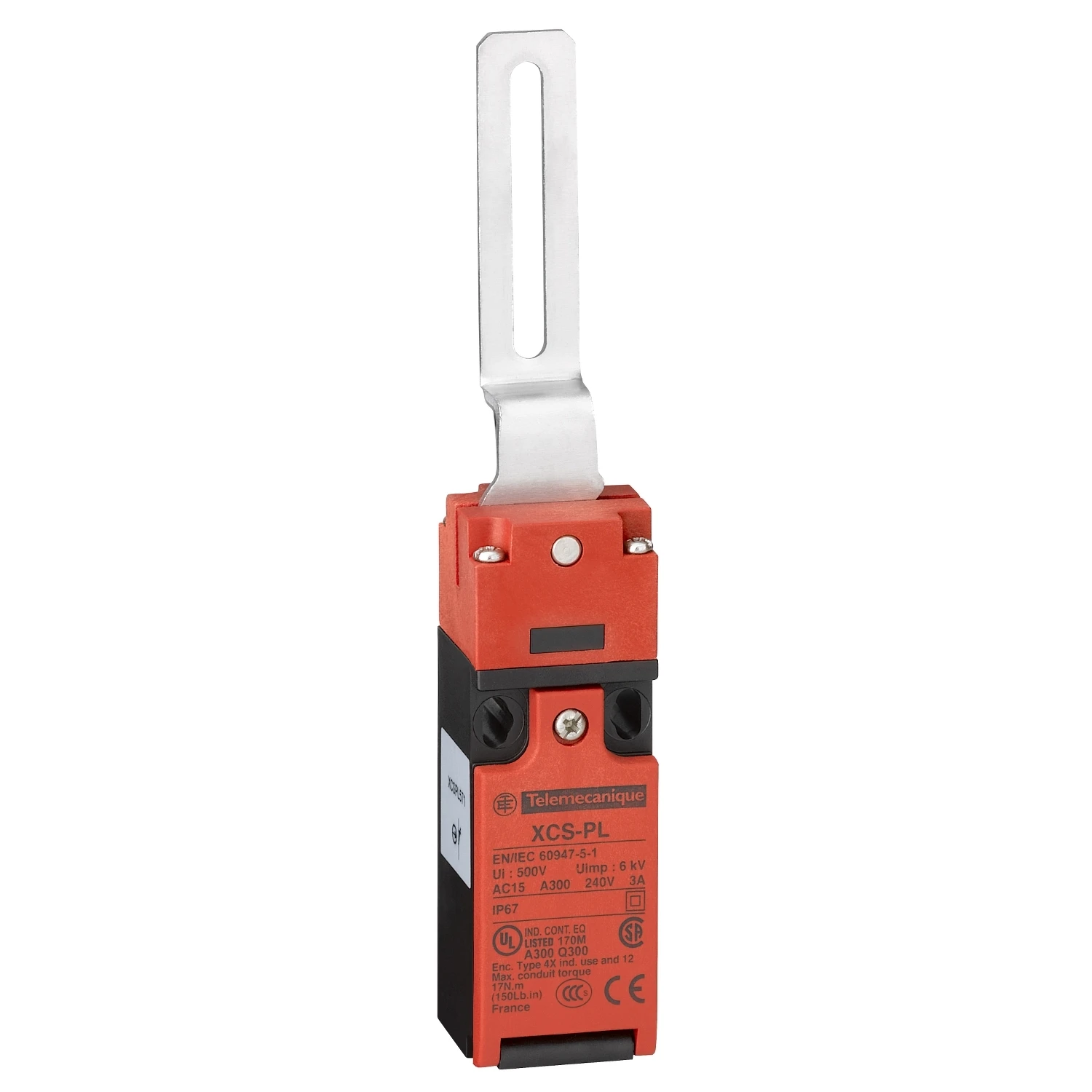

Safety Switch XCSPL, elbowed flush lever, centred, 2NC -M16
Safety Switch XCSPL, elbowed flush lever, centred, 2NC -M16
Safety Switch XCSPL, elbowed flush lever, centred, 2NC -M16 - Image 2
Safety Switch XCSPL, elbowed flush lever, centred, 2NC -M16 - Image 3
Safety Switch XCSPL, elbowed flush lever, centred, 2NC -M16 - Image 4

Safety Switch XCSPL, elbowed flush lever, centred, 2NC -M16

£73.06 Incl. VAT

This XCSPL Safety Limit Switch has a stainless steel turret head rotary elbowed flush lever with an operation contact on the centered position, a double insulated plastic enclosure and a M16 cable gland entry. It has 2 normally closed slow break contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508. · · · This XCSPL Safety Limit Switch has a stainless steel turret head rotary elbowed flush lever with an operation contact on the centered position, a double insulated plastic enclosure and a M16 cable gland entry. · · gG characteristics for cable protection · · It has 2 normally closed slow break contacts. · · Power loss values well within the limits of IEC 60269 · · Compatible with Camaster 100A CM100F · · Pre-arching: 13,000 · · Total at 415V AC: 35,000 · · Watts loss: 7.2

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCSPL782 Categories: , , Brand: Part Number: 2500210930

Description

Technical Specifications  Technical Specifications End switch Explosion safety category for gas None Type of interface for safety communication None Interface type None Housing material Plastic Explosion safety category for dust None Construction type housing Cuboid Type of control element Rotary lever Type of electric connection Cable entry metrical Degree of protection (IP rating) IP67K Switching function Slow-action switch and quick-break switch Rated operation current Ie at DC-13, 230 V 0.27 A Rated operation current Ie at DC-13, 24 V – A Number of contacts as normally closed contact 2 Number of contacts as change-over contact 0 Rated operation current Ie at AC-15, 24 V – A Height of sensor 161 mm Rated operation current Ie at AC-15, 230 V 3 A Diameter sensor – mm Number of contacts as normally open contact 0 Width sensor 30 mm Length of sensor 30 mm Rated operation current Ie at AC-15, 125 V 6 A Rated operation current Ie at DC-13, 125 V 0.55 A Number of safety auxiliary contacts 2 Ambient temperature during operating -25 – 70 °C With status indication No Output electronic No Forced opening Yes Suitable for safety functions Yes Switching function latching No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188129
