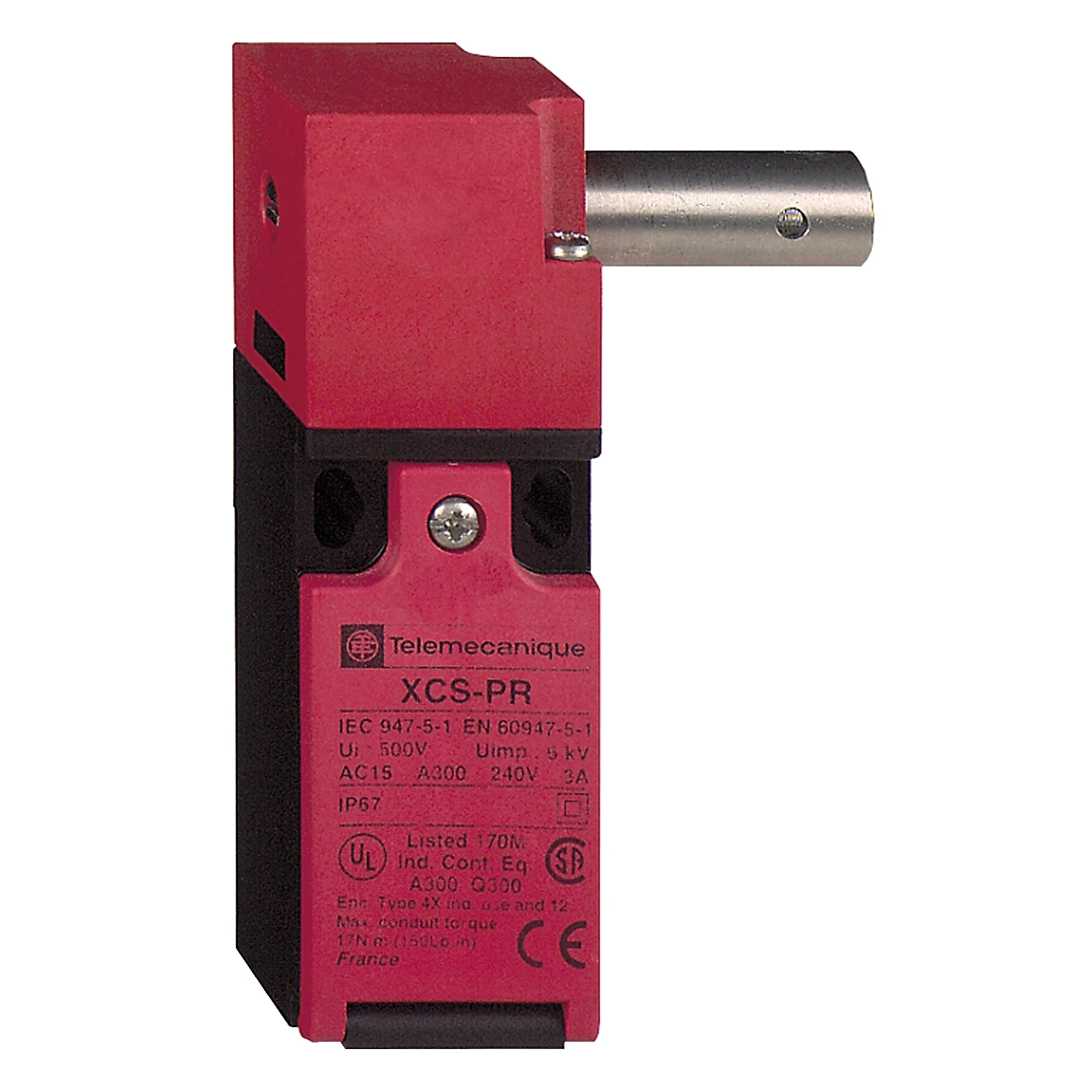

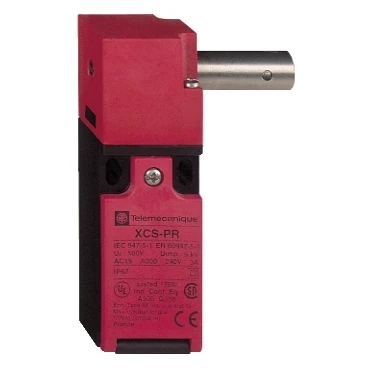

Safety Switch XCSPR, spindle 30mm, 1NC+1NO -M16
Safety Switch XCSPR, spindle 30mm, 1NC+1NO -M16
Safety Switch XCSPR, spindle 30mm, 1NC+1NO -M16 - Image 2
Safety Switch XCSPR, spindle 30mm, 1NC+1NO -M16 - Image 3
Safety Switch XCSPR, spindle 30mm, 1NC+1NO -M16 - Image 4

Safety Switch XCSPR, spindle 30mm, 1NC+1NO -M16

£60.37 Incl. VAT

This XCSPR Safety Limit Switch has a 30 mm stainless steel spindle, a double insulated plastic enclosure and a M16 cable gland entry. It has 1 normally open and 1 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508. · · · This XCSPR Safety Limit Switch has a 30 mm stainless steel spindle, a double insulated plastic enclosure and a M16 cable gland entry. · · It has 1 normally open and 1 normally closed break-before-make (slow break) contacts.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCSPR552 Categories: , , Brand: Part Number: 2500210936

Description

Technical Specifications  Technical Specifications End switch Type of interface for safety communication None Interface type None Explosion safety category for dust None Explosion safety category for gas None Housing material Plastic Construction type housing Cuboid Type of electric connection Cable entry metrical Degree of protection (IP rating) IP67K Switching function Slow-action switch and quick-break switch Number of safety auxiliary contacts 1 Rated operation current Ie at AC-15, 125 V 6 A Number of contacts as normally open contact 1 Rated operation current Ie at DC-13, 125 V 0.55 A Height of sensor 96 mm Rated operation current Ie at AC-15, 24 V – A Rated operation current Ie at DC-13, 230 V 0.27 A Rated operation current Ie at AC-15, 230 V 3 A Number of contacts as change-over contact 0 Rated operation current Ie at DC-13, 24 V – A Number of contacts as normally closed contact 1 Diameter sensor – mm Width sensor 30 mm Length of sensor 60 mm Ambient temperature during operating -25 – 70 °C Suitable for safety functions Yes Switching function latching No Output electronic No Forced opening Yes With status indication No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188129
