Telemecanique Sensors Safety switch XCSPR, spindle 30mm, 2NC -M16
£65.88 Incl. VAT

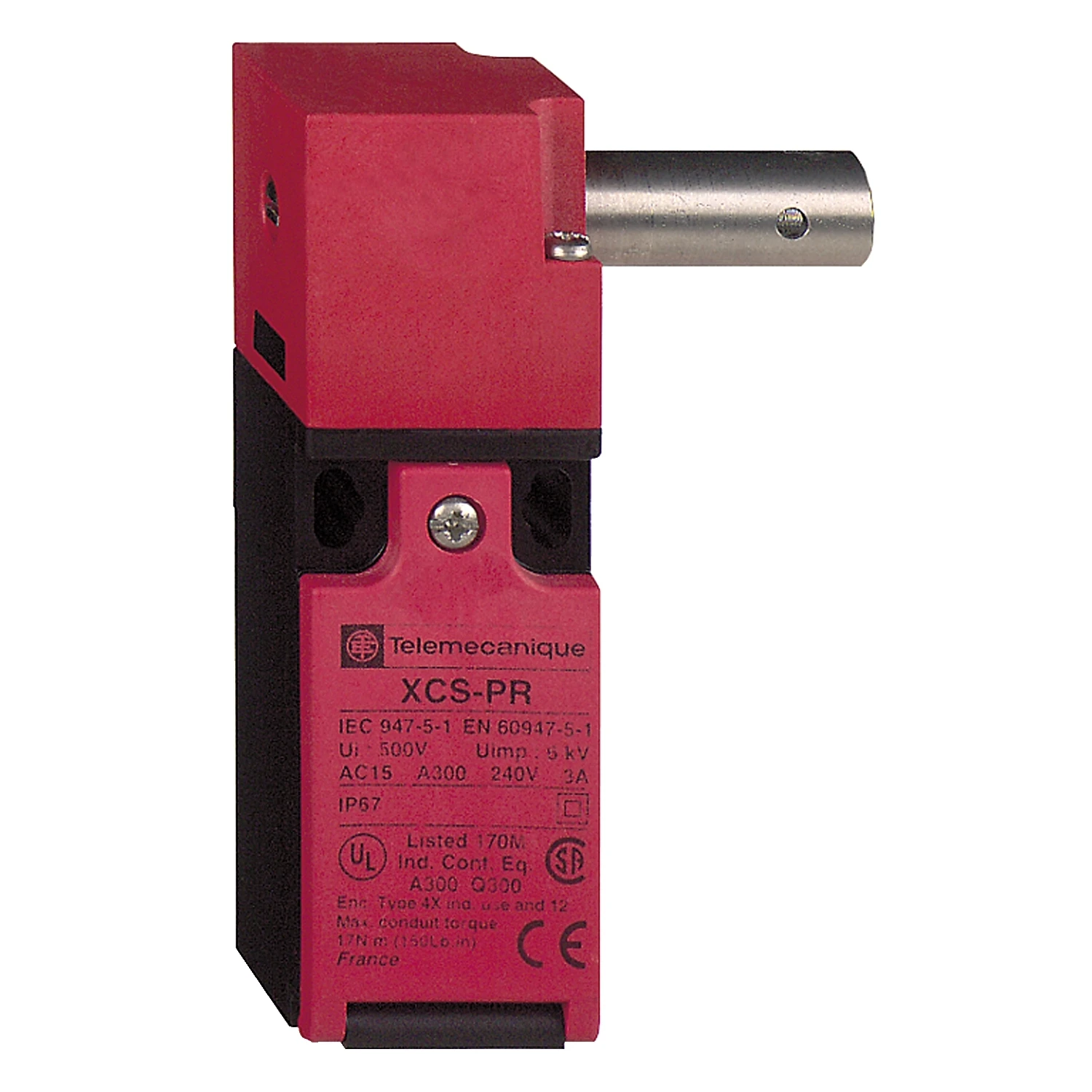

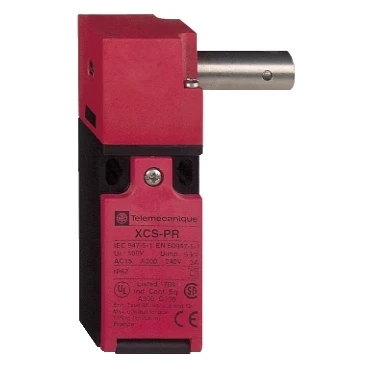

This XCSPR Safety Limit Switch has a 30 mm stainless steel spindle, a double insulated plastic enclosure and a M16 cable gland entry. It has 2 normally closed slow break contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508. · · · This XCSPR Safety Limit Switch has a 30 mm stainless steel spindle, a double insulated plastic enclosure and a M16 cable gland entry. · · It has 2 normally closed slow break contacts.
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications End switch Interface type None Type of interface for safety communication None Explosion safety category for dust None Explosion safety category for gas None Housing material Plastic Type of control element Rotary lever Construction type housing Cuboid Switching function Slow-action switch and quick-break switch Degree of protection (IP rating) IP67K Diameter sensor – mm Rated operation current Ie at DC-13, 125 V 0.55 A Rated operation current Ie at AC-15, 125 V 6 A Rated operation current Ie at DC-13, 24 V – A Number of safety auxiliary contacts 0 Number of contacts as normally closed contact 2 Number of contacts as change-over contact 0 Number of contacts as normally open contact 0 Rated operation current Ie at AC-15, 230 V 3 A Rated operation current Ie at DC-13, 230 V 0.27 A Rated operation current Ie at AC-15, 24 V – A Height of sensor 96 mm Width sensor 30 mm Length of sensor 60 mm Ambient temperature during operating -25 – 70 °C Suitable for safety functions Yes Output electronic No Forced opening No With status indication No Switching function latching No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188129
