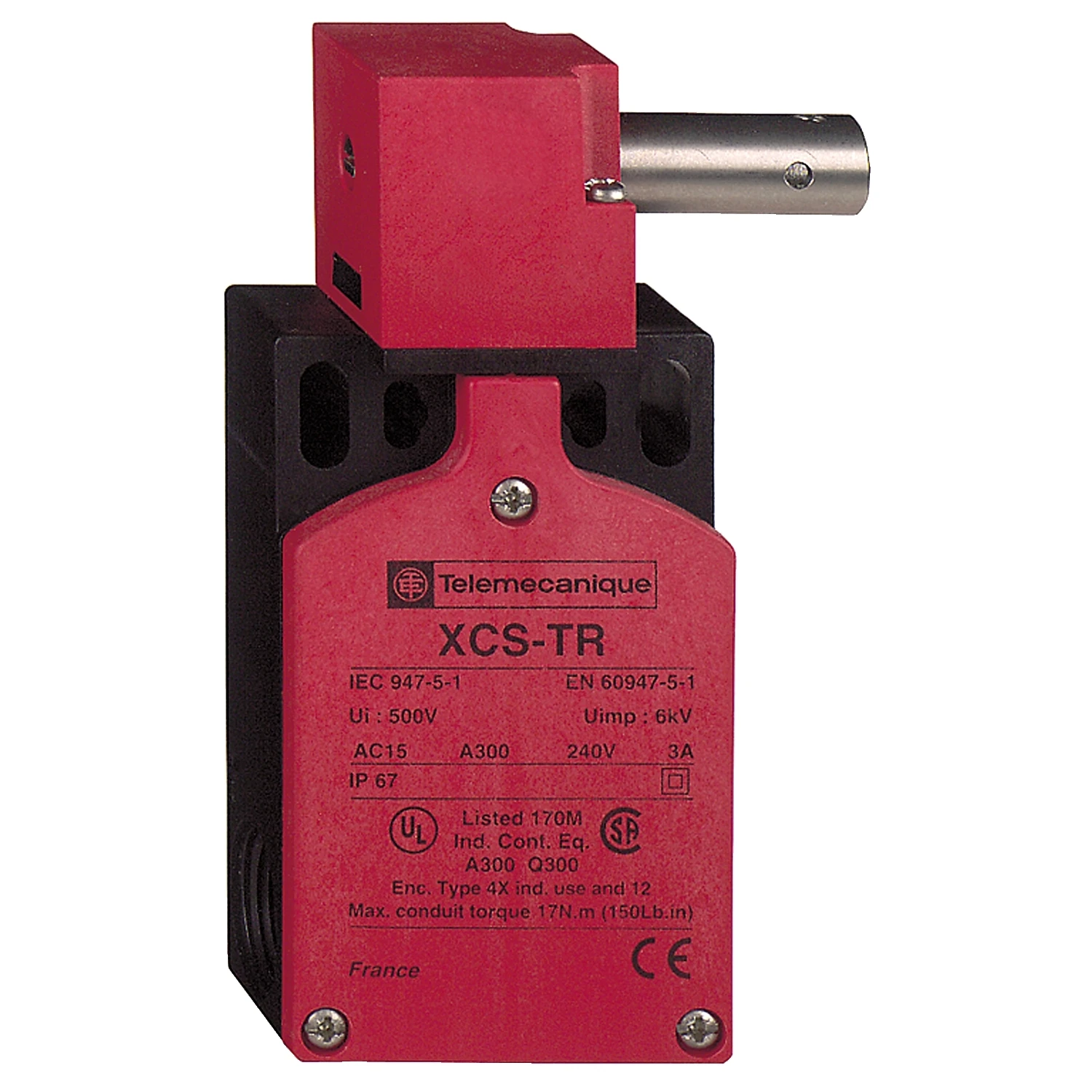

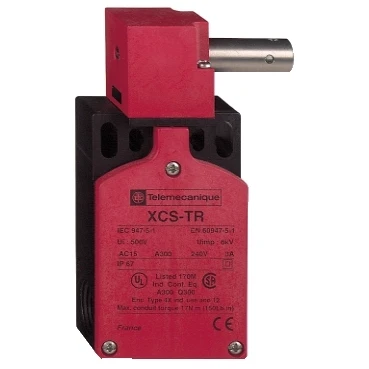

Safety switch XCSTR, Spindle 30mm, 2NC+1NO -M16
£68.02 Incl. VAT
This XCSTR Safety Limit Switch has a 30 mm stainless steel spindle, a double insulated plastic enclosure and 2 x M16 cable gland entries. It has 1 normally open and 2 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508. · · · This XCSTR Safety Limit Switch has a 30 mm stainless steel spindle, a double insulated plastic enclosure and 2 x M16 cable gland entries. · · It belongs to linergy passthrough terminal block with 6 mm² nominal cross section. · · It has 1 normally open and 2 normally closed break-before-make (slow break) contacts. · · The rated current is 41A conforming to EN/IEC 60947-7-1, 50A conforming to CSA/cURus and 40A conforming to ATEX Exe II Ex II 2 GD. · · It has grey surface treatment.
Out of stock
Description
Technical Specifications Technical Specifications Position switch with guard locking Type of interface for safety communication None Housing material Plastic Interface type None Explosion safety category for gas None Construction type housing Cuboid Type of guard locking Quiescent current principle Type of switching contact Slow-action switch Type of electric connection Cable entry metrical Degree of protection (IP rating) IP67K Rated operation current Ie at AC-15, 230 V 3 A Clamping force 20 N Rated operation current Ie at AC-15, 24 V – A Width sensor 52 mm Height of sensor 117 mm Number of contacts as normally closed contact 2 Number of contacts as change-over contact 0 Number of contacts as normally open contact 1 Number of safety auxiliary contacts 0 Rated operation current Ie at DC-13, 230 V 0.27 A Length of sensor 60 mm Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at DC-13, 125 V 0.55 A Rated operation current Ie at AC-15, 125 V 6 A Rated control supply voltage Us magnet drive at AC 50 Hz 120 – 240 V Rated control supply voltage magnet drive at AC 60 Hz 120 – 240 V Rated control supply voltage magnet drive at DC 125 – 250 V Ambient temperature during operating -25 – 70 °C With status indication No Suitable for safety functions Yes With escape unlocking No With auxiliary release No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188129
