Telemecanique Sensors Safety switch XCSTR, spindle 30mm, 3NC -M16
£71.40 Incl. VAT

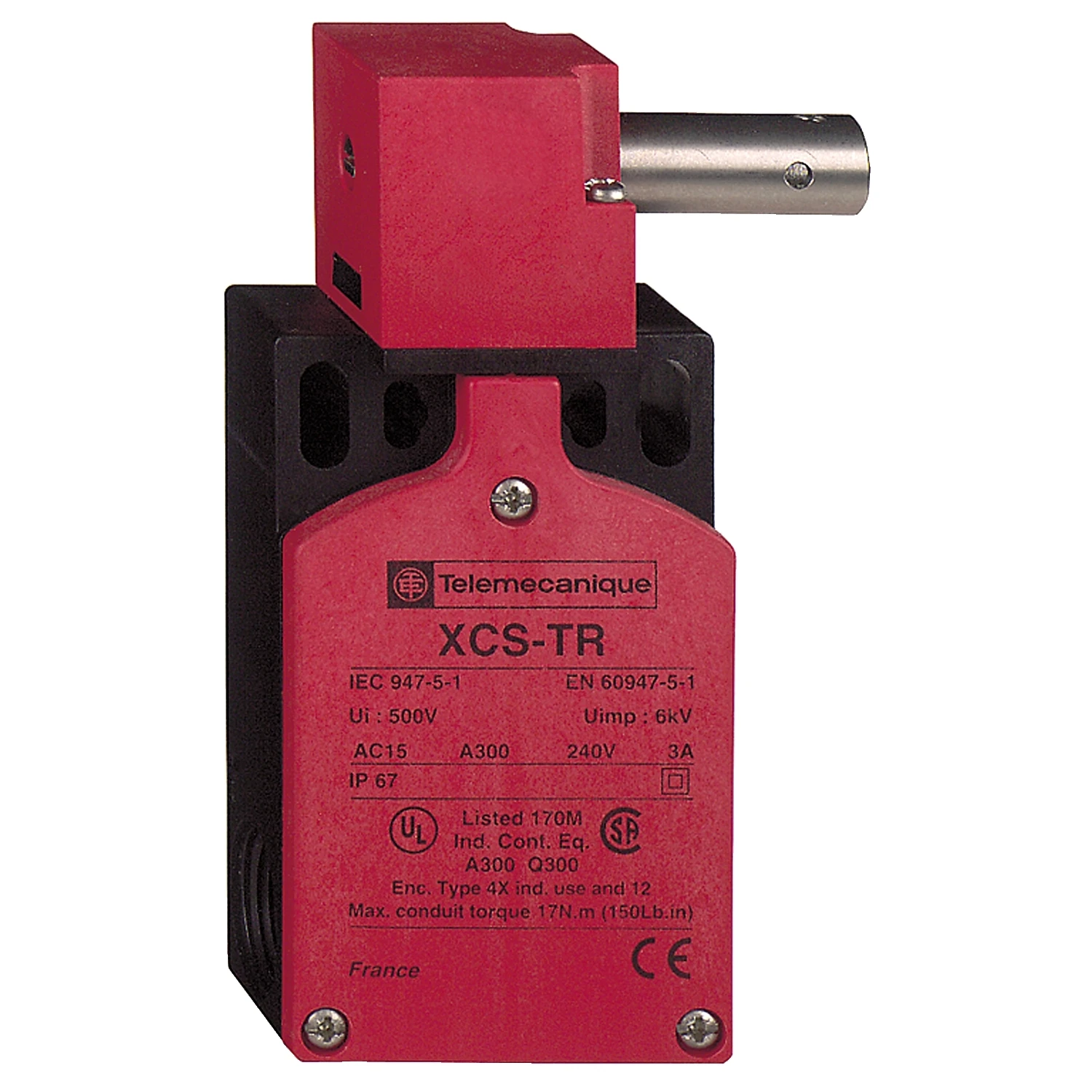

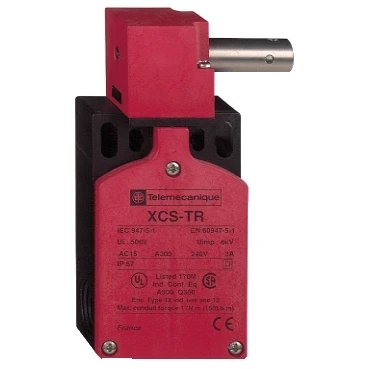

This XCSTR Safety Limit Switch has a 30 mm stainless steel spindle, a double insulated plastic enclosure and 2 x M16 cable gland entries. It has 3 normally closed slow break contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508. · · · This XCSTR Safety Limit Switch has a 30 mm stainless steel spindle, a double insulated plastic enclosure and 2 x M16 cable gland entries. · · It has 3 normally closed slow break contacts.
Description
Technical Specifications Technical Specifications Position switch with guard locking Type of interface for safety communication None Explosion safety category for gas None Interface type None Housing material Plastic Type of switching contact Slow-action switch Construction type housing Cuboid Type of guard locking Quiescent current principle Type of electric connection Cable entry metrical Rated operation current Ie at AC-15, 230 V 3 A Degree of protection (IP rating) IP67K Clamping force 20 N Rated operation current Ie at DC-13, 230 V 0.27 A Number of contacts as normally open contact 0 Number of contacts as change-over contact 0 Height of sensor 117 mm Number of safety auxiliary contacts 0 Number of contacts as normally closed contact 3 Rated operation current Ie at AC-15, 24 V – A Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at DC-13, 125 V 0.55 A Length of sensor 60 mm Width sensor 52 mm Rated operation current Ie at AC-15, 125 V 6 A Rated control supply voltage Us magnet drive at AC 50 Hz 120 – 240 V Rated control supply voltage magnet drive at AC 60 Hz 120 – 240 V Rated control supply voltage magnet drive at DC 125 – 250 V Ambient temperature during operating -25 – 70 °C With status indication No With escape unlocking No With auxiliary release No Suitable for safety functions Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188129
