Schletter Aluminium End Clamp Rapid16 30-40mm

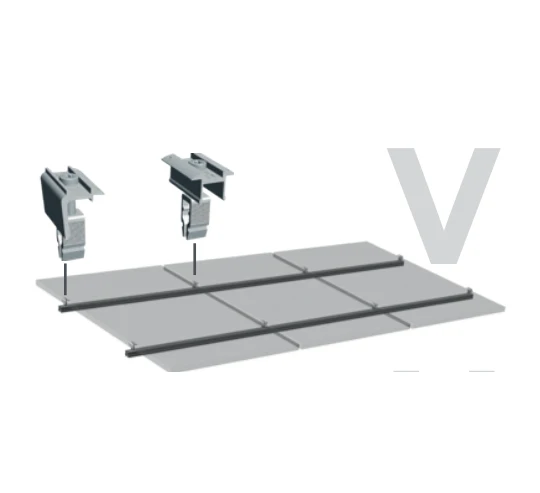

Schletter’s new Rapid16 family of modular clamps offers many advantages, such as better warehousing thanks to minimal versions, and a grounding pin in every module clamp. Rapid16 is right for any Schletter module-bearing profile with an 8 mm Klicknut and is designed for module frame heights of 30–50 mm.The clamping range is divided into two sizes. The lower module clamps can hold modules with a frame height of 30–40 mm The higher ones are suitable for frame heights of 40–50 mm. With all middle clamps and the high end clamps, all claws can be rotated and are therefore suitable for vertical or horizontal (linear) module clamping. The exception is the end clamps for low module frames. For geometric reasons, rotation is not possible on them. Therefore there is also a low end clamp in an H version. · · · Minimal versions for all application · · Integrated grounding pin · · Optimal warehousing and fast installation · · General building approval Z14.4-631
